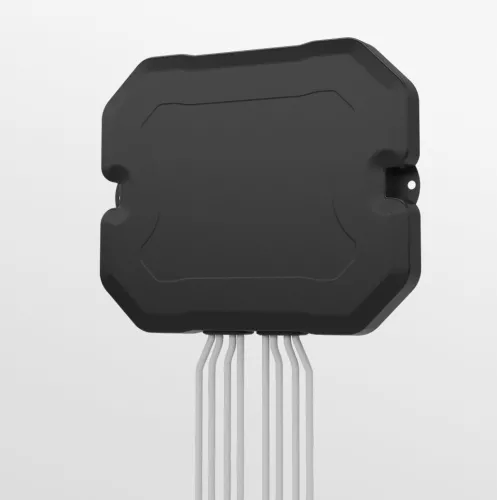

4G/5G 4x4 MIMO DASH ANT. 1x GPS/GNSS 3m SMA

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

4G/5G 4x4 MIMO DASH ANT. 1x GPS/GNSS 3m SMA The Panorama BAT[X]M4 range is a discrete or covert 4×4 MiMo antenna solution for 4G / 5G with the option of GPS/GNSS, and 2×2, 3×3 or 4×4 dual band 2.4/5.0-7.2GHz WiFi 6e. The 4G/5G antenna elements cover 617-960/1427-6000MHz to provide a robust communications link to ensure high data rates even in challenging network coverage areas. The antenna can include a GPS/GNSS module with advanced filtering for either L1/E1/G1/B1 only or dual band L1/E1/G1/B1 with L5/E5a. The antenna is IP55 rated and designed to be mounted on or under a vehicle dashboard or parcel shelf but can be mounted on any non-conductive surface. Versions without GPS can be mounted vertically to a wall or panel. The BAT range is supplied with integrated low loss flame retardant cables which meet the requirements of UN ECE R118 and EN45545-2. BATGM4-6-60 BATGM4-6-60

Panorama

Antenna

$ $240.00 https://5gstore.com/product/17912_4g5g_4x4_mimo_dash_ant_1x_gpsgnss_3m_sma

The Panorama BAT[X]M4 range is a discrete or covert 4×4 MiMo antenna solution for 4G / 5G with the option of GPS/GNSS, and 2×2, 3×3 or 4×4 dual band 2.4/5.0-7.2GHz WiFi 6e. The 4G/5G antenna elements cover 617-960/1427-6000MHz to provide a robust communications link to ensure high data rates even in challenging network coverage areas. The antenna can include a GPS/GNSS module with advanced filtering for either L1/E1/G1/B1 only or dual band L1/E1/G1/B1 with L5/E5a. The antenna is IP55 rated and designed to be mounted on or under a vehicle dashboard or parcel shelf but can be mounted on any non-conductive surface. Versions without GPS can be mounted vertically to a wall or panel. The BAT range is supplied with integrated low loss flame retardant cables which meet the requirements of UN ECE R118 and EN45545-2.

Specifications:

No. of Cellular Connectors	4
No. of WiFi Connectors	0
No. of GPS Connectors	1
Cellular Connector	SMA Male
GPS Connector	SMA Male
Antenna Type	Outdoor
Antenna Style	Omni
Antenna Mount	Multi
Antenna Color	Black
Length (in)	7.72
Width (in)	9.13
Height (in)	0.98
Maximum Gain	7
Impedance Ω (Input/Output)	50
Cable Length (in)	118
Cable Type	FR CS32 (cellular) and FR RG174 (GPS)
Minimum Temperature (F)	-40
Maximum Temperature (F)	176
Material	IP55 enclosure
VSWR (Voltage Standing Wave Radio)	<2.5:1
