This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

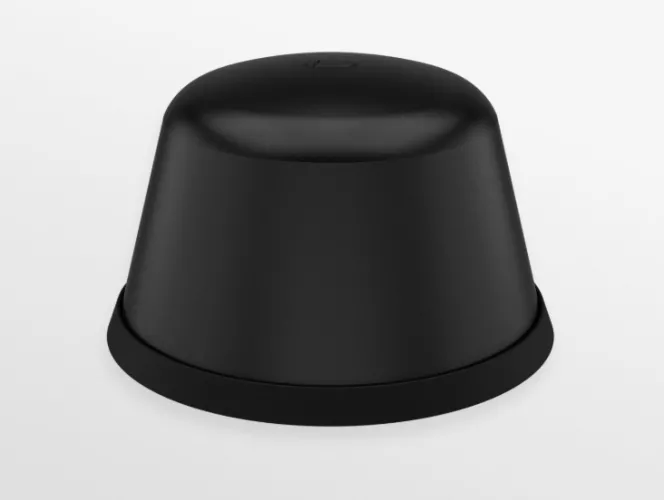

The L[X]E antenna series is a range of low profile antenna in a robust compact housing, with a wideband cellular element covering 4G/5G frequencies from 617-960/ 1427-6000MHz. The LGE version incorporates an active GPS/GNSS antenna with a 26dB gain LNA and further variants can feature one to four dual band WIFI 6e elements.
Designed to be tough yet cost effective, the antennas are housed in a IP69K / IK10 rated enclosure, moulded in LEXAN for effective impact resistance. The range is supplied with short fly leads and can be kitted with Panorama Antennas’ low loss extension cables in various length and connector configurations.
This antenna does not require a ground plane for use above 698MHz and maintains a high level of performance even when mounted on a non-metallic surface.
