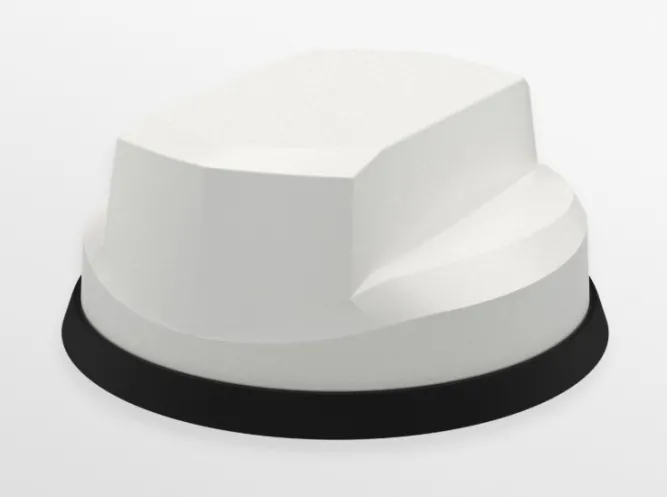

DOME ANT 2X2 MIMO 4G/5G 6x6 WIFI GPS/GNSS WHT

Call for Availability

Item Number: 18976
Model: LGMHM-6-60-24-58

Quantity:

Price:

$341.78

General

Details

Customer Reviews

Q & A

Support

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

DOME ANT 2X2 MIMO 4G/5G 6x6 WIFI GPS/GNSS WHT The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2×2 4G/5G MiMo performance from 617-960/1427-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6×6 MiMo WiFi 2.4/4.9-7.2GHz. The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118.03 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications. The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference. The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection. LGMHM-6-60-24-58 LGMHM-6-60-24-58

Panorama

Antenna

$ $341.78 https://5gstore.com/product/18976_dome_ant_2x2_mimo_4g5g_6x6_wifi_gpsgnss_wht

The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2×2 4G/5G MiMo performance from 617-960/1427-6000MHz in a robust low profile package.

The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6×6 MiMo WiFi 2.4/4.9-7.2GHz.

The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118.03 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications.

The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference.

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.

Specifications:

No. of Cellular Connectors	2
No. of WiFi Connectors	6
No. of GPS Connectors	1
Cellular Connector	SMA Male
WiFi Connector	RP-SMA Male
GPS Connector	FME Female
Antenna Type	Outdoor
Antenna Style	Omni
Antenna Mount	Multi
Antenna Color	White
Length (in)	7.09
Width (in)	7.09
Height (in)	2.95
Maximum Gain	10
Impedance Ω (Input/Output)	50
Cable Length (in)	11
Cable Type	FR RG174
Minimum Temperature (F)	-40
Maximum Temperature (F)	176
