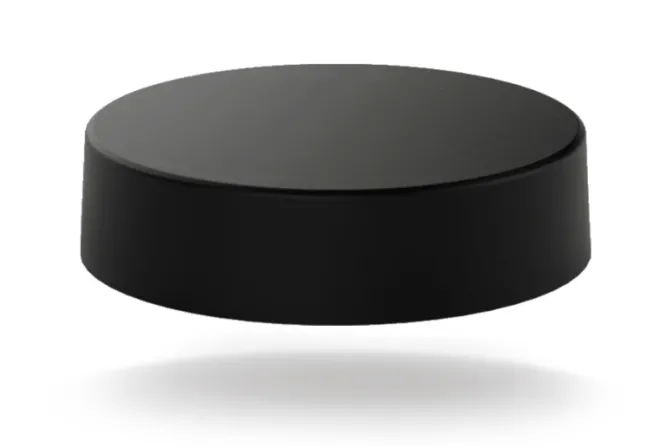

LO PRO 4G/3G/2G WIFI GNSS PUCK 3M (SMA) - LGP-7-38-24-58-3SP

LO PRO 4G/3G/2G WIFI GNSS PUCK 3M (SMA)

Call for Availability
Item Number: 19031
Model: LGP-7-38-24-58-3SP
Quantity:

Price:

$66.37

Similar Products Compare All...
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

The L[G]P-7-38 antenna series is a range of very low profile antennas incorporating a combination of wideband cellular elements covering 4G/5G frequencies along with an optional active GPS/GNSS patch with 26dB LNA gain and an optional dual-band WiFi element all in an ultra-compact housing.

Designed to be cost-effective, the antennas are completely enclosed in a moulded housing made from weather-resistant ASA plastic and is designed for use on plastic or non-conductive. The range is supplied with full-length cables with optional 1m (3′) or 3m(10′) lengths and SMA or FAKRA connectors.



Specifications:

No. of Cellular Connectors 1
No. of WiFi Connectors 1
No. of GPS Connectors 1
Cellular Connector SMA Male
WiFi Connector RP-SMA Male
GPS Connector SMA Male
Antenna Type Outdoor
Antenna Style Omni
Antenna Mount Panel/Enclosure
Antenna Color Black
Length (in) 3.15
Width (in) 3.15
Height (in) 0.89
Impedance Ω (Input/Output) 50
Cable Length (in) 118
Cable Type RG174
Minimum Temperature (F) -40
Maximum Temperature (F) 185
