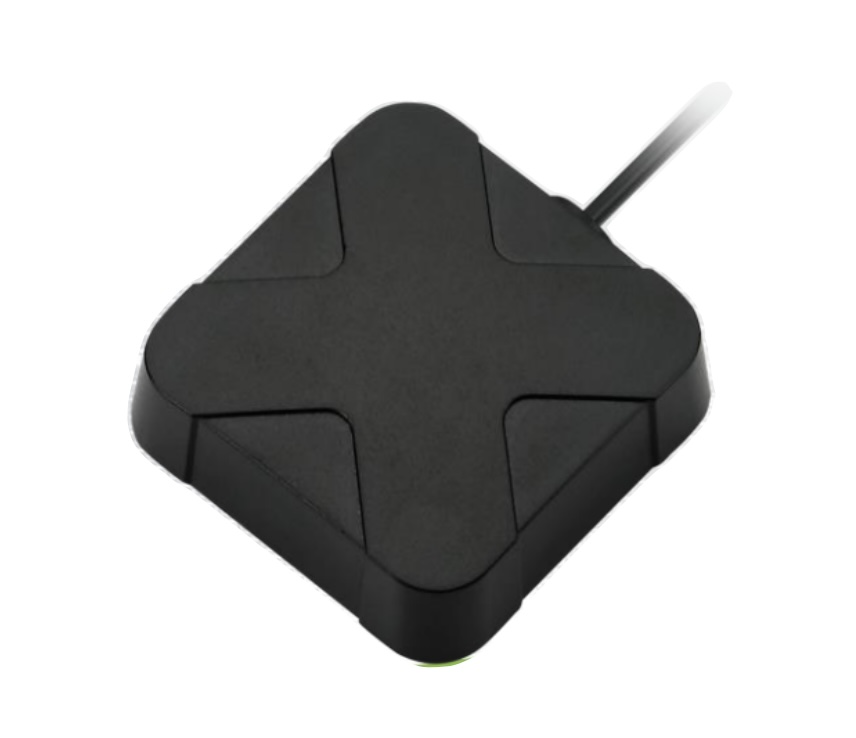

MagmaX Mag Mount GPS antenna with 5m cable

In Stock

Item Number: 19865
Model: AA.171.501111

Quantity:

Price:

$66.10

Sale Price:

$50.31

You Save:

$15.79

General

Details

Customer Reviews

Q & A

Support

MagmaX Mag Mount GPS antenna with 5m cable MagmaX IP67 External Automotive Antenna for GPS/QZSS (L1), Galileo (E1), GLONASS (G1), BeiDou (B1) with 3M RG-174 SMA(M)-SAW Filter The AA.171 MagmaX Low Axial Ratio Magma magnetic mount external GNSS antenna is ideal for robust, covert installations where durability and small size is paramount. It is used in telematics and M2M applications, for example in commercial vehicle installations for fleet management. Typical Applications Include: - Timing - Precision Positioning for Robotics / Automotive - Telematics - Autonomous Routing Standard cable and connector version is 3 meter RG174 and SMA(M). Cable length and connector type are customizable upon request. Using a unique specialist feed structure this antenna delivers best in class axial ratio across all GPS, GLONASS, Galileo and BeiDou bands. Low axial ratio improves accuracy of GNSS system location and leads to quicker lock times. A front-end SAW reduces out-band interference from any nearby wireless transmitters, helping prevent LNA compression and burnout. AA.171.501111 AA.171.501111

Taoglas

Antenna

$ $50.31 https://5gstore.com/product/19865_magma_mag_mount_with_1_gps_and_5_meter_cable

MagmaX IP67 External Automotive Antenna for GPS/QZSS (L1), Galileo (E1), GLONASS (G1), BeiDou (B1) with 3M RG-174 SMA(M)-SAW Filter

The AA.171 MagmaX Low Axial Ratio Magma magnetic mount external GNSS antenna is ideal for robust, covert installations where durability and small size is paramount. It is used in telematics and M2M applications, for example in commercial vehicle installations for fleet management. Typical Applications Include: - Timing - Precision Positioning for Robotics / Automotive - Telematics - Autonomous Routing Standard cable and connector version is 3 meter RG174 and SMA(M). Cable length and connector type are customizable upon request. Using a unique specialist feed structure this antenna delivers best in class axial ratio across all GPS, GLONASS, Galileo and BeiDou bands. Low axial ratio improves accuracy of GNSS system location and leads to quicker lock times. A front-end SAW reduces out-band interference from any nearby wireless transmitters, helping prevent LNA compression and burnout.

Specifications:

Country of Origin	Taiwan
No. of Cellular Connectors	0
No. of WiFi Connectors	0
No. of GPS Connectors	1
GPS Connector	SMA Male
Antenna Type	Outdoor
Antenna Style	Omni
Antenna Mount	Magnetic
Antenna Color	Black
Length (in)	2.1
Width (in)	2
Height (in)	0.7
Weight (lb)	0.2
Maximum Gain	3.1
Impedance Ω (Input/Output)	50
Cable Length (in)	196
Cable Type	RG174
Minimum Temperature (F)	-40
Maximum Temperature (F)	176
Material	ABS
