9-IN-1 PERMANENT MOUNT ANTENNA

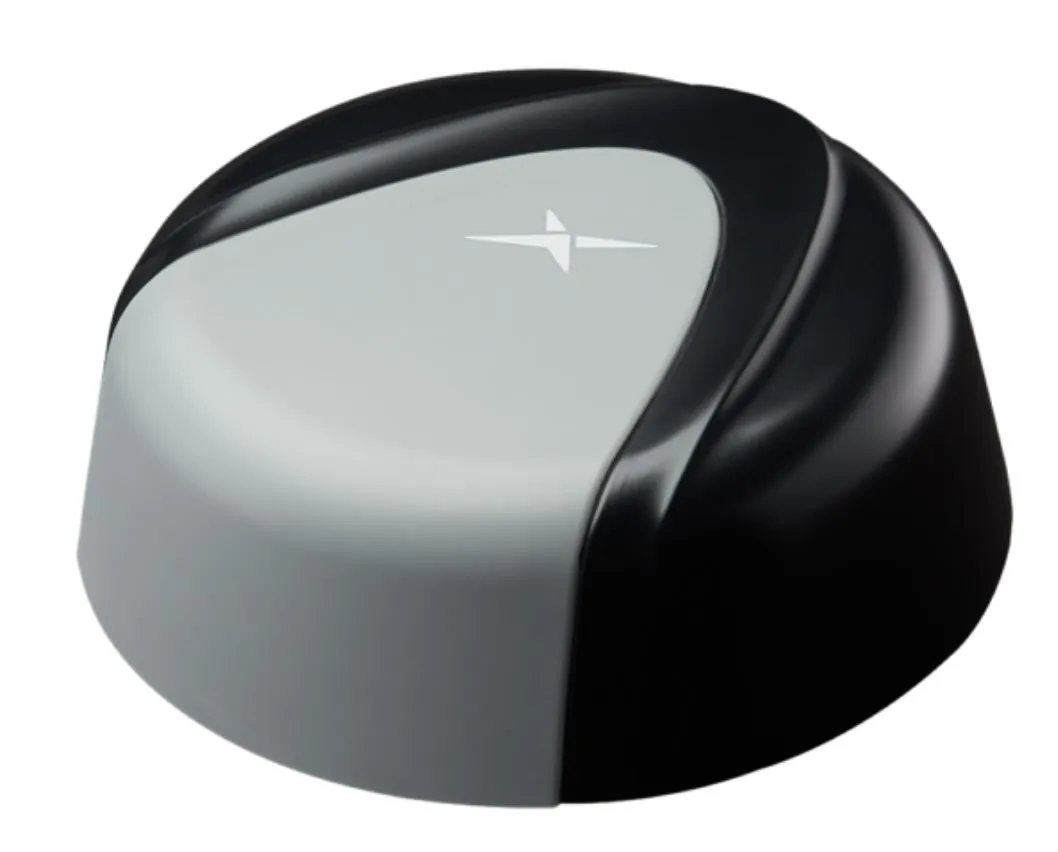

MA1509 Synergy 9-in-1 Combination Antenna – GNSS, 5*5G/4G Cellular & 3*Wi-Fi

The Taoglas Synergy MA1509.AK.001 is a 9-in-1 next-generation permanent mount antenna for vehicle roof applications. It has a fully IP67 rated waterproof robust ABS enclosure and base. The 9 antennas inside support 5G/4G, GPS/GLONASS/BeiDou, Wi-Fi (2.4GHz/5GHz). This outstanding patent-pending antenna delivers powerful MIMO antenna technology for 5G/4G, Wi-Fi 2.4/5.8GHz 802.11n and the emerging 802.11ac, and an optimized GPS/GLONASS/BeiDou patch antenna for location. The 5G/4G antennas also include backward compatibility to work at most worldwide 2G and 3G bands.

Typical Applications:
– Next Generation OEM Automotive Connectivity
– Multimedia, Navigation and Telematics Systems
– V2V, V2X and Fleet Management Applications
– Real-time HD Video Streaming
– First Net Responder Routers

The MA1509 is ideal for applications that require highly sophisticated antennas for real-time streaming applications that demand high-speed video uplink and downlink into the cabin of the vehicle. These challenges are resolved by the highly efficient, high gain MIMO antennas, with high isolation, all of which is necessary to achieve the required signal to noise ratio and throughput.

Technical Specification

This product has a longer lead time (10-15 days), below are similar products that we do have in stock.

20140

Raptor Max 1x GNSS, 8x 5G/4G & 3x Wi-Fi with 5m cables (Black)

In Stock

$785.20

$524.25
