This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.
The 10-cable MXG945 (4x 5G/LTE, 5x WiFi 6E/7, GNSS) antenna includes four Global 5G Sub-6 LTE antennas, five WiFi 6E/7 antennas, and one GNSS antenna. This provides MIMO (multiple-input-multiple-output) coverage for both Cellular and WiFi. In addition, GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.
The Global LTE 5G-ready antenna element covers: 617-960 & 1400-7200 MHz. Furthermore, it covers all Cellular bands, worldwide. In the US, this includes the new CBRS (Citizens Broadband Radio Service) at 3.55-3.7 GHz and Band 71 at 617-698 MHz.

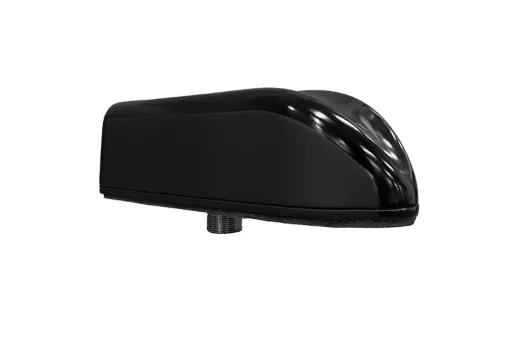

The MXG945 (4x 5G/LTE, 5x WiFi 6E/7, GNSS) elements all fit in this slim tapered radome that measures only 9″ long x 2.5″ wide by 2.6″ tall (22.9 cm x 6.4 cm x 6.6 cm). The antenna housing is a stylish combination of sleek, compact, and versatile design that comes in Black or White, depending on your wireless projects. The standard connectors for this product are SMA Plugs for 5G and GNSS and Rev Pol SMA Plugs; however, this product is customizable and can be configured with Fakra Jack connectors instead.
