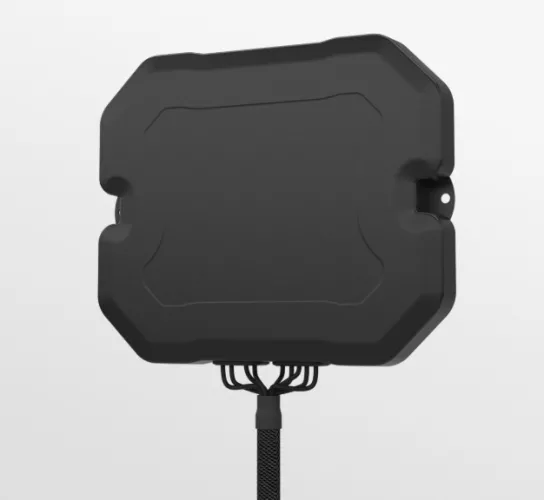

4G/5G 4x4 MIMO CASE ANT. 0.75m R/A SMA

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

4G/5G 4x4 MIMO CASE ANT. 0.75m R/A SMA The Panorama CASEANT[[X]4-6-60-[X] range is a 4×4 MiMo antenna solution for 4G / 5G specifically designed for deployable cases. The 4G/5G antenna elements cover 617-960/1427-6000MHz providing a robust communications link to ensure high data rates even in challenging network coverage areas. The efficient element design allows the antennas to work when the case is open or closed. CASEANTG[5]4 variants include a GPS/GNSS module with advanced filtering covering either L1/E1/G1/B1 or L1/E1/G1/B1 & L5. Additional variants also contain 2,3 or 4 WiFi elements which cover 2.4-7.2GHz for WiFi 6e. The antenna is supplied with integrated low loss flame retardant cables fitted with protective sleeving to assist with routing within the case and right angled connectors for easy installation. CASEANT4-6-60 CASEANT4-6-60

Panorama

Antenna

$ $200.00 https://5gstore.com/product/20518_4g5g_4x4_mimo_case_ant_075m_ra_sma

The Panorama CASEANT[[X]4-6-60-[X] range is a 4×4 MiMo antenna solution for 4G / 5G specifically designed for deployable cases.
The 4G/5G antenna elements cover 617-960/1427-6000MHz providing a robust communications link to ensure high data rates even in challenging network coverage areas. The efficient element design allows the antennas to work when the case is open or closed.

CASEANTG[5]4 variants include a GPS/GNSS module with advanced filtering covering either L1/E1/G1/B1 or L1/E1/G1/B1 & L5. Additional variants also contain 2,3 or 4 WiFi elements which cover 2.4-7.2GHz for WiFi 6e.

The antenna is supplied with integrated low loss flame retardant cables fitted with protective sleeving to assist with routing within the case and right angled connectors for easy installation.

Specifications:

No. of Cellular Connectors	4
No. of WiFi Connectors	0
No. of GPS Connectors	0
Cellular Connector	SMA Male
Antenna Type	Outdoor
Antenna Style	Omni
Antenna Mount	Multi
Antenna Color	Black
Length (in)	7.72
Width (in)	9.13
Height (in)	0.98
Maximum Gain	6
Impedance Ω (Input/Output)	50
Cable Length (in)	29
Cable Type	CS30
Minimum Temperature (F)	-40
Maximum Temperature (F)	176
VSWR (Voltage Standing Wave Radio)	<2.5:1
