Katalyst SPARK K500A 5G Router

Meet the Katalyst SPARK 5G Business Router

Work isn’t tied to a desk, and neither is the SPARK. Built for businesses that need fast, flexible, and failproof connectivity, SPARK delivers 5G speeds up to 6 Gbps on any network with the ability to connect up to 200 devices at once.

Insert your SIM card. Turn it on. Connect.

Because internet should be easy.

Compatible with your Primary ISP, Verizon, AT&T, US Cellular, and T-Mobile Networks.

HARDWARE

• CPU: MediaTek Dual-core, @1.3GHz
• Memory / Storage: DDR4 512 MB / eMMC 8GB
• Ethernet Speed: 10/100/1000/2500 Mbps
• External Antennas: 6 x Antennas (4 for 5G NR, 2 for Wi-Fi)
• Power Consumption: <14W
• Wi-Fi: 802.11 a/b/g/n/ac/ax, 574Mbps (2.4GHz); 802.11 a/b/g/n/ac/ax, 2402Mbps (5GHz)
• Battery: 6400mAh/7.4V/47.4Wh
• Exterior Material: PC + ABS Plastic
• Dimension / Weight: 6.10x3.74x1.93in / 1.68lbs

SOFTWARE FEATURES

• Operating System: OpenWrt
• Network Mode: Routing, AP, Wireless Bridge, Wired Bridge
• Ethernet Dialing Mode: DHCP, Static, PPPoE
• Repeater Mode: Scans and connects to SSID; Connects to hidden SSID
• 5G Modem: Sets AT command · Automatic / Manual setting; Receives SMS · Display signal strength
• Wireless Configuration: Switching on and off wireless AP; Modifying and hiding SSID; Modifying encryption mode and password; Channel modification · Bandwidth modification; Modifying transmission power · Guest SSID
• Display Flow Statistics (KCloud Platform Required): Display product model, name, IP addreess, MAC address · Current rate; Flow statistics; QoS setting
• Client List: Show current connected clients; Disable a client (no internet access); Firewall Function Port forwarding; open port; DMZ
• VPN: OpenVPN client & server · WireGuard client & server; Maximum OpenVPN Speed: 150Mbps | Maximum; WireGuard Speed: 300Mbps · Policy routing
• System Function: Restart; Restore factory settings; Change IP address range on LAN side; Change time zone; MAC address clone; Encrypted DNS; DDNS; Cloud remote management; Remote web management; Remote SSH management; Installing / uninstalling packages; Drop-in Gateway mode; Multi-WAN

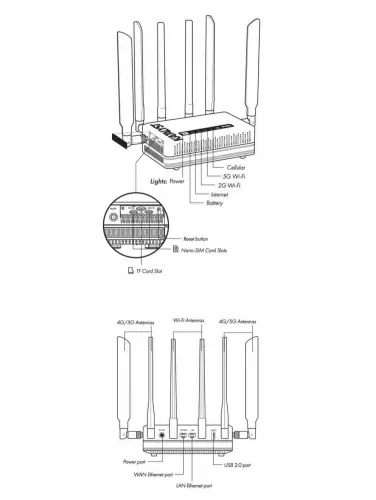

INTERFACE

• Reset Button: Press (>3s, <8s) restores network settings to device initial state OR Long press (>=8s) restores factory settings
• TF Card Slot: TF card, maximum 1TB
• SIM Card Slot: 2 x Nano SIM card (12.3mm x 8.8mm)
• USB Port: USB2.0 Type-A
• LED Indicator: Power / Battery / Internet / 2.4G Wi-Fi / 5G Wi-Fi / Signal Strength
• Ethernet Port: 1 x 2.5G WAN, 1 x 1G LAN
• Power Port: DC5521, 12V/2.5A (5.5*2.1mm)

WHAT'S IN THE BOX

• 1 Spark Router
• 1 x Power Adapter + 4 Converters (US, EU, UK & AU)
• 2 x Wi-Fi Antennas
• 4 x 5G NR Antennas
• 1 x Ethernet Cable
• 1 x User Manual
• 1 x Warranty Card
• 1 x Wall Mount Kit

SpecSheet-Spark(20622).pdf

Katalyst_Spark_User_Guide(20622).pdf
