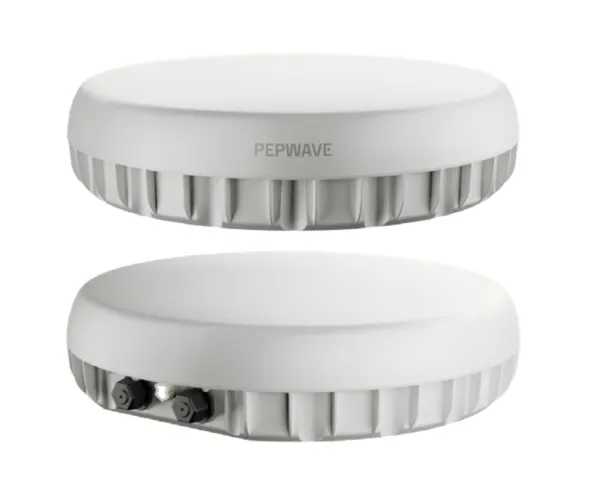

Peplink Antenna Max Duo is an IP67 enclosure. It comes with right-angle connectors for 4G/5G, WiFi and GPS.

Support for multiple router combinations, such as:

BR2 Pro 5G
BR1 Pro 5G + BR1 Pro 5G + PoE Splitter
BR1 Pro 5G + BR1 Mini 5G + PoE Splitter

Specifications

Connections:
- 8x 4G/5G with SMA/Male
- 2x WiFi with RP-SMA/Male
- 1x GPS with SMA/Male
Enclosure Material: UV Stable PC
Mounting Options: Surface, wall, pole, deck
Compliance: ROHS, REACH, WEEE
Enclosure Flammability: UL 94 V-0 (1.47 mm)
UV resistance: UL 746C (F1 long-term UV exposure)
Salt Spray: MIL-STD 810F/ASTM 8117
Operating Temperature: -40° - 176°F / -40° - 80°C
Storage Temperature: -40° - 176°F / -40° - 80°C
Product Dimensions:
Package Contents:
- Antenna Box
- L-Mount Set
- Double sided 3M adhesive pad
- 3pcs Cable Gland
- 2pcs Hole Plug

Latest Blog Posts About This Product

Latest YouTube Videos About This Product

Specifications:

Country of Origin	United States
No. of Cellular Connectors	8
No. of WiFi Connectors	2
No. of GPS Connectors	1
Cellular Connector	SMA Male
WiFi Connector	RP-SMA Male
GPS Connector	SMA Male
Antenna Type	Outdoor
Antenna Style	Omni
Antenna Mount	Panel/Enclosure
Antenna Color	White
Length (in)	16.83
Width (in)	16.83
Height (in)	4.82
Maximum Gain	8.1
Impedance Ω (Input/Output)	50
Cable Length (in)	pigtails
Minimum Temperature (F)	-40
Maximum Temperature (F)	176
Material	UV stable PC
VSWR (Voltage Standing Wave Radio)	< 2.5 over 95% of the band (cell); <2.0 (GPS), <2.5 (WiFi)
Noise Figure	2.5dB

There are currently no product reviews.

If you purchased this item, Login to write a review.

Q & A

Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!

Click here to submit a new question

Sort By:

The Peplink MAX BR1 Pro 5G HW3 is slightly larger than the HW2 version. Can I still use it with the Antenna Max, Antenna Max Duo, or Antenna Max S?

Yes, you can still install the MAX BR1 Pro 5G Hw3 within the Antenna Max, Antenna Max Duo, or Antenna Max S products.
