Digi 360 Cellular Solution Package for Digi IX30 (1 year) - LTE Cat 4, Edge Computing, GNSS, Worldwide - IX30-0EG4

Digi 360 Cellular Solution Package for Digi IX30 (1 year) - LTE Cat 4, Edge Computing, GNSS, Worldwide

14 Support Docs
Call for Availability
Item Number: 20809
Model: IX30-0EG4
Quantity:
Have a large deployment?
Request a Quote

Price:

$749.00

An optional 2 year or 4 year Digi 360 extension provides a total of 3 or 5 year Digi 360 benefits.
Optional Digi 360 Extension (extended lead times): - details
Cellular antennas are NOT included - two antennas are required for the embedded modem.
Select Antennas (required) - compare - details
This device only includes the hardwire DC power supply. If you need an AC or vehicle power supply, you can add one here.
Add a Power Adapter (optional) - details
Bundle & Save Compare All...
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

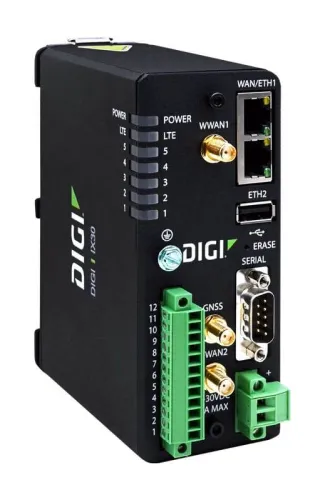

Digi IX30-0EG4 Edge Computing Industrial IoT Cellular Router

An intelligent C1D2 and NEMA TS2 temperature rated cellular router solution, delivering secure, reliable connectivity to industrial assets, anywhere. Additional I/O ports reduce the need for third-party devices to eliminate potential points of failure.

Integrated with Digi Remote Manager® — the remote management platform that provides visibility and control across the network — Digi IX30 is an excellent choice for process automation controllers, remote data loggers, flow meters, sensing equipment, telco infrastructure, traffic applications, and smart grid assets.

Superior performance and a range of SKUs offering edge intelligence and private network capabilities make Digi IX30 a true Industry 4.0 solution.

FEATURES

  • Cellular: LTE Cat-4, 3G HSPA+, 2G GPRS
    • Certified with AT&T, FirstNet, and Verizon/ Frontline
    • Supported Bands:
      • FDD: B1, B2, B3, B4, B5, B7, B8, B8_US (Anterix), B12, B13, B14 (FirstNet®), B18, B19, B20, B25, B26, B28;
      • WCDMA: B1, B2, B4, B5, B6, B8, B19; GSM: B2, B3, B5, B8; GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
  • Memory: 1 GB RAM, 8 GB FLASH
  • Anterix Active and FirstNet Capable™ for business-critical communications
  • Built-in Digi TrustFence® for device security, secure encrypted connections, ongoing monitoring, and support
  • Digi Remote Manager® platform for easy setup, mass configuration, and management
  • Dual SIMs and Digi SureLink® for failover and connection reliability
  • DIN rail clip mount
  • Connections:
    • 2x Ethernet (10/100 Mbps)
    • 1x serial port RS-232/422/485
    • 1x USB 2.0 port
  • Operating temperature: -34 °C to +74 °C

*No accessories included.

digi-ix30-0eg4-datasheet(20809).pdf

Latest Blog Posts About This Product


Latest YouTube Videos About This Product


Popular Comparisons

Specifications:

Country of Origin Mexico
No. of Cellular Connectors 2
No. of WiFi Connectors 0
No. of GPS Connectors 1
Cellular Connector SMA Female
GPS Connector SMA Female
No. of LAN Ports 1
No. of WAN Ports 1
No. of Fiber (SFP) Ports 0
No. of Serial Ports 1
No. of Embedded Modems 1
Ports Configurable as LAN/WAN Yes
USB Port LAN
WAN Throughput Speed 100 MBps
SIM Card Size 2FF
eSIM Support No
Length (in) 5.04
Width (in) 3.94
Height (in) 2.05
Weight (lb) 1.1
Minimum Temperature (F) -29
Maximum Temperature (F) 165
Material Aluminum/ IP30
Antennas Included No
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified Yes
Cloud Management Included Yes
Power Input 9 – 30 VDC, 18 W min power source required
Bluetooth No
Bonding Support Yes
IP Passthrough Yes
