Teltonika RUTX10 Professional Ethernet Router - RUTX10000200

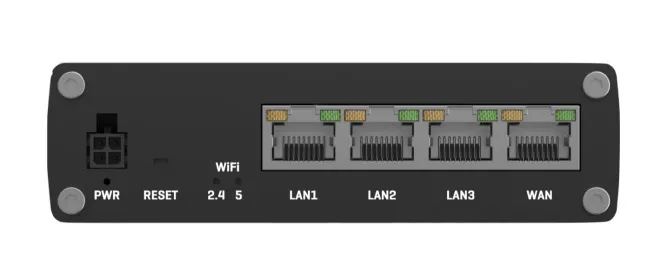

  • Teltonika RUTX10 Professional Ethernet Router - Front Panel

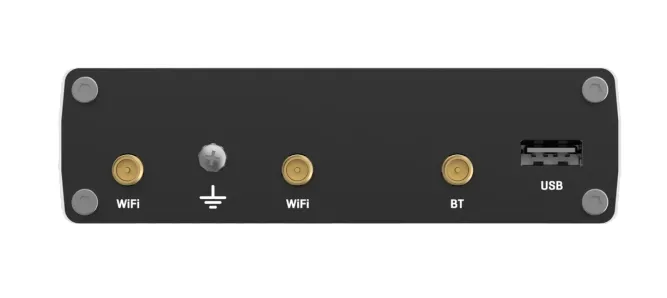

  • Teltonika RUTX10 Professional Ethernet Router - Back Panel

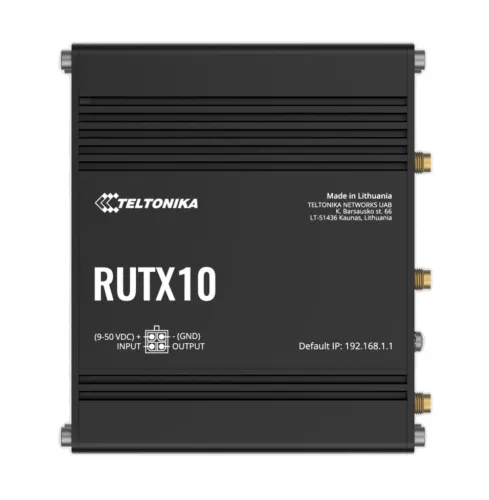

Teltonika RUTX10 Professional Ethernet Router

11 Support Docs
Call for Availability
Item Number: 20985
Model: RUTX10000200
Quantity:
Have a large deployment?
Request a Quote

Price:

$199.00

The Remote Management System (RMS) is designed to conveniently monitor and manage all your Teltonika Networks networking devices. The system allows to securely gather status information of your devices and to change their configuration even if the devices do not have public IP addresses. Note that this subscription is good for one device for 10 years of RMS Management usage only. It will not provide any data for RMS Connect or RMS VPN (these services require a client use Data packs)
Add Teltonika Remote Management System (RMS) - details
RMS Credits are a flexible option as they can be assigned on the device to get it online on the platform or exchanged for company data in case you need more of it. Each credit is active on a device for 30 days and would allow the device to be monitored/connected for this activation time. Note that each new device added to the system has trial service which would be active for 1 month, though, TAP series devices have trial service that is valid for 2 years.
Add Teltonika Remote Management System (RMS) Credits - details
Connection data packs are an alternative to Company data if you expect a lot of traffic going through a RMS Connect session on a specific device or RMS VPN hub to which that device is assigned. A device with active data pack will have its own data pool that would take higher priority than the company data pool and will be active for a specified time period. Connection data packs are currently available in a 10-year 150GB option. They MUST be purchased along with a Management Pack. A single pack can only be active on a single device, once it is activated - it can not be transferred (special conditions apply, please contact Teltonika support regarding this).
Add Teltonika Remote Management System (RMS) Data Pack - details
Teltonika offers an optional DIN rail mounting kit that is compatible with this device.
Optional Mounting Hardware: - details
Bundle & Save

RUTX10 is a robust industrial router equipped with 4x Gigabit Ethernet ports, WiFi, Bluetooth LE, a powerful CPU and RutOS software for advanced networking solutions.

FEATURES

  • GIGABIT ETHERNET: 4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported
  • WI-FI & BT: Wave-2 802.11ac Dual Band Wi-Fi and Bluetooth LE
  • VPN SUPPORT: Numerous VPN Protocols supported, including OpenVPN, IPsec, PPTP, L2TP & DMVPN
  • RMS: Compatible with Teltonika Networks Remote Management System

Physical Interfaces

  • Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps
  • I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
  • Status LEDs: 8 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi
  • Power: 1 x 4-pin power connector
  • Antennas: 2 x RP-SMA for Wi-Fi, 1 x RP-SMA fro Bluetooth
  • USB: 1 x USB A port for external devices
  • Reset: Reboot/User default reset/Factory reset button
  • Other: 1 x Grounding screw

Physical Specification

  • Casing material: Aluminum housing
  • Dimensions (W x H x D): 115 x 32.2 x 95.2 mm
  • Weight: 355 g
  • Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
  • Operating temperature: -40 °C to 75 °C
  • Operating humidity: 10% to 90% non-condensing
  • Ingress Protection Rating: IP30
  • Regulatory Approvals: CE, UKCA, EAC, UCRF, CITC, ICASA, ANRT, FCC, IC, NOM, UL/CSA Safety, Anatel, Giteki, CB, IC (ISED), RCM
rutx10-datasheet-v11(20985).pdf

Popular Comparisons



Specifications:

Country of Origin Lithuania
No. of Cellular Connectors 0
No. of WiFi Connectors 2
No. of GPS Connectors 0
WiFi Connector RP-SMA Female
No. of LAN Ports 3
No. of WAN Ports 1
No. of Fiber (SFP) Ports 0
No. of Serial Ports 0
No. of Embedded Modems 0
Ports Configurable as LAN/WAN Yes
WAN Throughput Speed 1 Gbps
eSIM Support No
Length (in) 4.52
Width (in) 3.75
Height (in) 1.27
Weight (lb) 0.8
Minimum Temperature (F) -40
Maximum Temperature (F) 167
Material Aluminum Housing
Antennas Included Yes
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified No
WiFi Support WiFi 5
Cloud Management Included Yes
Power Input 9-50v DC
Bluetooth Yes
Bonding Support No
IP Passthrough Yes
