LTMWG945 4xLTE/5xWIFI 6E/GNSS (10 cables; Black) - LTMWG945-A7CB7CW7CG2C-BLK-12-SP529

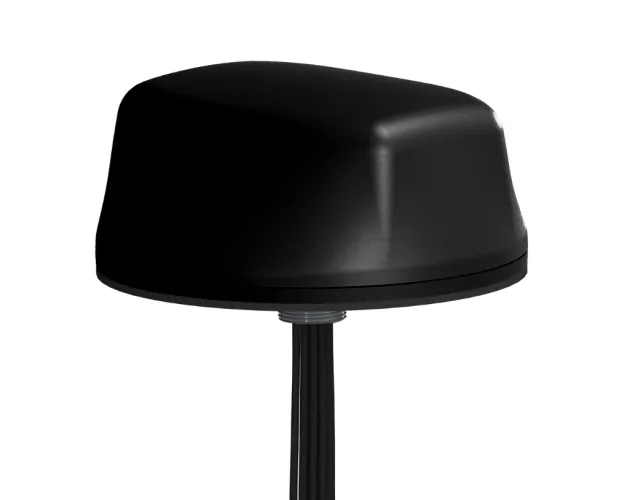

LTMWG945 4xLTE/5xWIFI 6E/GNSS (10 cables; Black)

In Stock
Item Number: 20991
Model: LTMWG945-A7CB7CW7CG2C-BLK-12-SP529
Quantity:

Price:

$517.15

The LTMWG945 is an 10-cable antenna with 4x 5G/LTE, 5x WiFi 6E or Bluetooth and 1x GNSS. With up to 10 antenna elements in a sleek small form factor, it is one of the smallest in the industry. The four Cellular elements can be used for Single-Carrier 4x MIMO 5G or Dual-Carrier 2x MIMO 5G. All of our 5G antennas are backwards compatible for 4G LTE. The 5x WiFi 6E elements provide faster through-put for advanced WiFi 6e with 802.11ax applications.

Cable Specifications:

  • Cable 1: 617-960/1710-7200 MHz, 12 inches LMR-100 SMA-plug
  • Cable 2: 617-960/1710-7200 MHz, 12 inches LMR-100 SMA-plug
  • Cable 3: 617-960/1710-7200 MHz, 12 inches LMR-100 SMA-plug
  • Cable 4: 617-960/1710-7200 MHz, 12 inches LMR-100 SMA-plug
  • Cable 5: 2.4-2.5/4.9-7.2 GHz, 12 inches, LMR-100 SMA-plug
  • Cable 6: 2.4-2.5/4.9-7.2 GHz, 12 inches, LMR-100 SMA-plug
  • Cable 7: 2.4-2.5/4.9-7.2 GHz, 12 inches, LMR-100 SMA-plug
  • Cable 8: 2.4-2.5/4.9-7.2 GHz, 12 inches, LMR-100 SMA-plug
  • Cable 9: 2.4-2.5/4.9-7.2 GHz, 12 inches, LMR-100 SMA-plug
  • Cable 10: GLONASS/GPS 12 inches RG-174 SMA-plug
  • SP529: No cable jumpers
LTMWG945_Spec_Sheet(20991).pdf



Specifications:

Country of Origin United States
No. of Cellular Connectors 4
No. of WiFi Connectors 5
No. of GPS Connectors 1
Cellular Connector SMA Male
GPS Connector SMA Male
Antenna Type Outdoor
Antenna Style Dome
Antenna Mount Surface
Antenna Color Black
Length (in) 5.5
Width (in) 5.5
Height (in) 2.38
Maximum Gain 6
Impedance Ω (Input/Output) 50
Cable Length (in) 12
Cable Type LMR-100 (A7C/B7C/W7C); RG-174 (G2C)
Minimum Temperature (F) -40
Maximum Temperature (F) 176
Material ASA UV-Inhibitive Plastic radome
VSWR (Voltage Standing Wave Radio) <2.5:1
Noise Figure 2 dB max (1.7 dB typical)
