This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

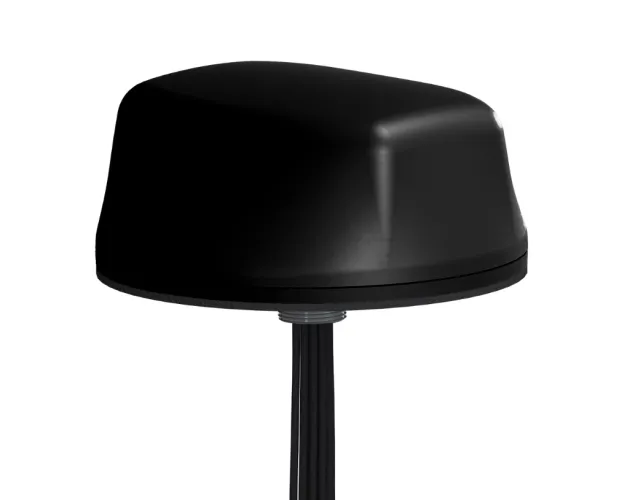

The LTMWG945 is an 10-cable antenna with 4x 5G/LTE, 5x WiFi 6E or Bluetooth and 1x GNSS. With up to 10 antenna elements in a sleek small form factor, it is one of the smallest in the industry. The four Cellular elements can be used for Single-Carrier 4x MIMO 5G or Dual-Carrier 2x MIMO 5G. All of our 5G antennas are backwards compatible for 4G LTE. The 5x WiFi 6E elements provide faster through-put for advanced WiFi 6e with 802.11ax applications.
Cable Specifications:
- Cable 1: 617-960/1710-7200 MHz, 12 inches LMR-100 SMA-plug
- Cable 2: 617-960/1710-7200 MHz, 12 inches LMR-100 SMA-plug
- Cable 3: 617-960/1710-7200 MHz, 12 inches LMR-100 SMA-plug
- Cable 4: 617-960/1710-7200 MHz, 12 inches LMR-100 SMA-plug
- Cable 5: 2.4-2.5/4.9-7.2 GHz, 12 inches, LMR-100 SMA-plug
- Cable 6: 2.4-2.5/4.9-7.2 GHz, 12 inches, LMR-100 SMA-plug
- Cable 7: 2.4-2.5/4.9-7.2 GHz, 12 inches, LMR-100 SMA-plug
- Cable 8: 2.4-2.5/4.9-7.2 GHz, 12 inches, LMR-100 SMA-plug
- Cable 9: 2.4-2.5/4.9-7.2 GHz, 12 inches, LMR-100 SMA-plug
- Cable 10: GLONASS/GPS 12 inches RG-174 SMA-plug
- SP529: No cable jumpers
