Thunder Integrated 5G/LTE Directional Antenna for Ericsson S400 - THDR40

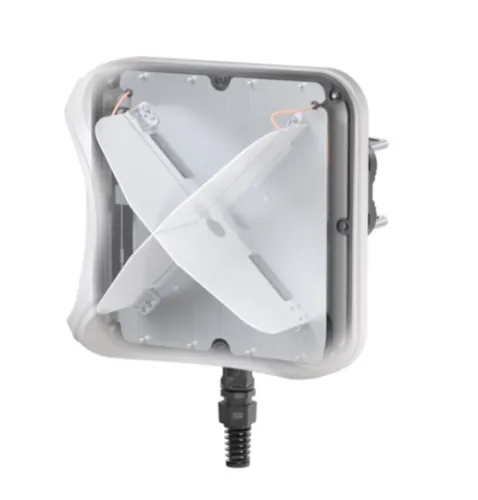

  • Thunder Integrated 5G/LTE Directional Antenna for Ericsson S400 - Front, internal view

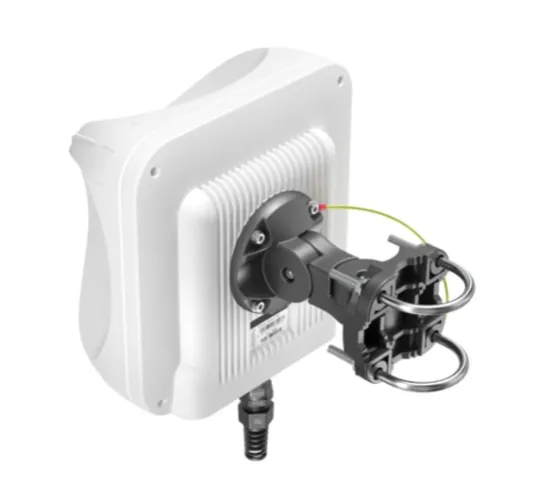

  • Thunder Integrated 5G/LTE Directional Antenna for Ericsson S400 - Back view

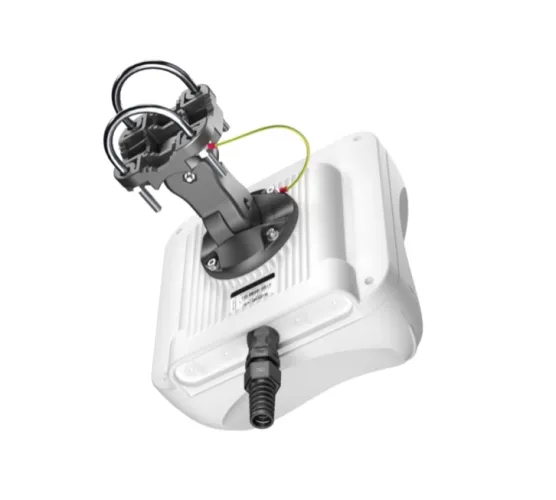

  • Thunder Integrated 5G/LTE Directional Antenna for Ericsson S400 - Back, underside view

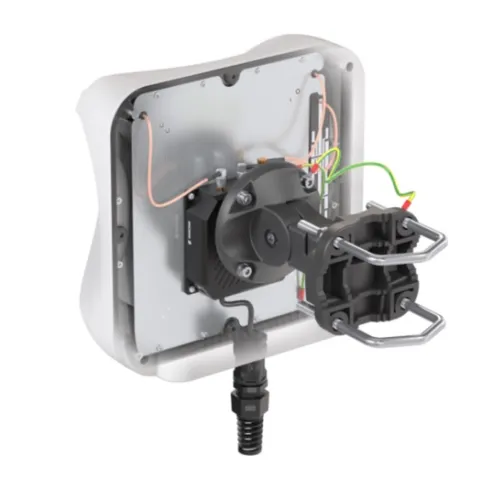

  • Thunder Integrated 5G/LTE Directional Antenna for Ericsson S400 - Back left, internal view

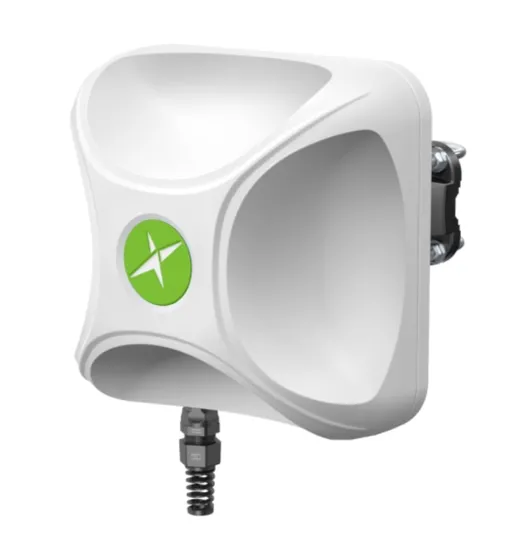

Thunder Integrated 5G/LTE Directional Antenna for Ericsson S400

Call for Availability
Item Number: 21174
Model: THDR40
Quantity:
Have a large deployment?
Request a Quote

Price:

$546.35

Similar Products Compare All...
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

The Taoglas THDR40 is an outdoor antenna for Ericsson (Cradlepoint) S400 routers is a perfect outdoor device for improving the signal in rural/suburban and locations where the mobile signal is weak. It has embedded directional 5G and Wi-Fi® antennas. If you use the Ericsson S400 router with the THDR40 Thunder Integrated Directional antenna you get a complete integrated solution with embedded router and multi-band antennas in one enclosure.

Typical applications include:

– Critical Communications and Public Safety
– Transportation & Fleet Management
– Industrial and Rugged Environments
– Enterprise & IoT Deployments

The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-7125 MHz, the THDR40 is a fantastic solution for 5G, Wi-Fi®, and GNSS applications.

THDR40_datasheet(21174).pdf



Specifications:

No. of Cellular Connectors 2
No. of WiFi Connectors 1
No. of GPS Connectors 0
Cellular Connector SMA Male
WiFi Connector RP-SMA Male
Antenna Type Outdoor
Antenna Style Directional
Antenna Mount Panel/Enclosure
Antenna Color White
Length (in) 10.6
Width (in) 10.6
Height (in) 7
Weight (lb) 6
Maximum Gain 7
Impedance Ω (Input/Output) 50
Cable Length (in) pigtails
Minimum Temperature (F) -40
Maximum Temperature (F) 176
Material ABS, aluminum, PTFE, fiberglass
VSWR (Voltage Standing Wave Radio) <2
