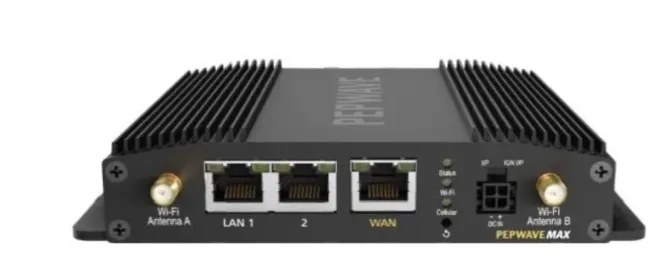

Pepwave MAX BR1 Pro HW3 - MAX-BR1-PRO-5GK-T-PRM

Peplink MAX BR1 Pro 5G HW3 | x65 Chipset | Global (with US Certification)

83 Support Docs
In Stock
Item Number: 21200
Model: MAX-BR1-PRO-5GK-T-PRM
Quantity:
Have a large deployment?
Request a Quote

Price:

$999.00

Bundle & Save Compare All...

Looking for the the MAX-BR1-PRO-5GN-T-PRM? This model is still available as needed!

This Peplink MAX BR1 Pro 5G is Hardware Revision 3, which utilizes a x65 chipset and supports PoE Input as well as Edge Computing via Docker support with 8GB of internal storage.

Specifications

  • WAN Interface
    • 1x 10/100/1000/2500M Ethernet
    • 1 x Embedded 5G/Cat 20 LTE modem with Redundant 4FF Nano SIM Slots
    • Cellular Modem - Global support with US carrier certifications from AT&T, FirstNet, T-Mobile and Verizon (5G NSA, C-Band, and Consumer eUICC; 5G SA support is pending as of September 2, 2025).
      • Supported Frequency Bands:
        • 5G (NSA & SA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
        • LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
      • Downlink/Uplink Datarate:
        • 5G: 4.1 Gbps / 900 Mbps
        • LTE CAT-20: 2 Gbps / 211 Mbps
  • LAN Interface
    • 2x 10/100/1000M Ethernet
  • WiFi Interface:
    • Simultaneous Dual-Band (2.4GHz / 5GHz)
    • Wi-Fi 6, 2X2 MU-MIMO
    • Wi-Fi WAN and/or AP
  • Transmit Power:
    • 2.4Ghz: 21 dBm
    • 5.0GHz: 22 dBm
  • Router Throughput
    • 1 Gbps
  • Recommended Users
    • 1-150
  • Antenna Connectors
    • 4x SMA Female Cellular Antenna Connectors
    • 2x RP-SMA Female Wi-Fi Antenna Connectors
    • 1x SMA Female GPS Antenna Connector
  • Power Input
    • 10 - 30V
  • Power Consumption
    • 8 W (nominal), 19 W (max.)
  • Dimensions
    • 5.78" x 5.52" x 1.15"
    • 146.8 x 140.3 x 29.3 mm
  • Weight
    • 1.59 pounds
    • 720 grams
  • Operating Temperature
    • -40° – 149°F
    • -40° – 65°C
  • Humidity
    • 15% – 95% (non-condensing)
  • Certifications
    • FCC, CE, RoHS
    • E-Mark
    • EN61373 Shock and Vibration Resistance
    • EN50155 Railway Applications
    • Electronic Equipment used on Rolling Stock
    • EN61000 Electromagnetic Compatibility
    • EN45545-2 Railway applications - Fire protection

Package Contents

  • MAX BR1 Pro 5G
  • 1x 12V2A Power Supply (ACW-632)
  • 4x LTE/5G Antennas (ACW-235)
  • 2x Wi-Fi Dual Band Antenna (ACW-341)
  • 1x GPS Antenna (ACW-232)
peplink_br1_pro_5g_datasheet_HW3(21200).pdf

Latest Blog Posts About This Product


Latest YouTube Videos About This Product




Specifications:

Country of Origin Taiwan
No. of Cellular Connectors 4
No. of WiFi Connectors 2
No. of GPS Connectors 1
Cellular Connector SMA Female
WiFi Connector RP-SMA Female
GPS Connector SMA Female
No. of LAN Ports 2
No. of WAN Ports 1
No. of Fiber (SFP) Ports 0
No. of Serial Ports 0
No. of Embedded Modems 1
Ports Configurable as LAN/WAN Yes
WAN Throughput Speed 1 Gbps
SIM Card Size 4FF
eSIM Support Yes
Length (in) 5.08
Width (in) 5.78
Height (in) 1.15
Weight (lb) 1.5
Minimum Temperature (F) -40
Maximum Temperature (F) 149
Material Metal
Antennas Included Yes
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified No
WiFi Support WiFi 6
Cloud Management Included Yes
Power Input 100V - 240V AC or 10V - 30V DC
Bluetooth No
Bonding Support Yes
IP Passthrough Yes
