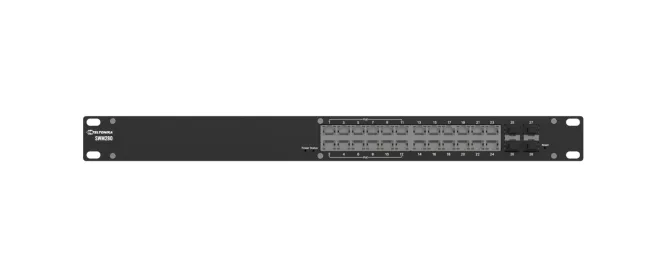

Teltonika SWM280 L2+ 24 Port Switch (SFP, PoE) - SWM280000200

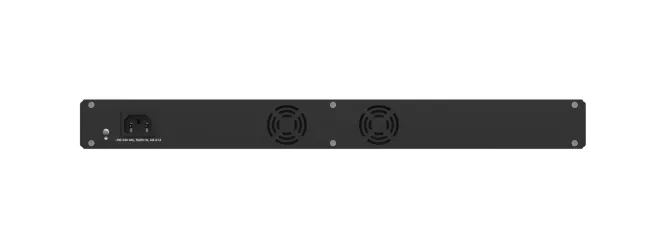

  • Teltonika SWM280 L2+ 24 Port Switch (SFP, PoE) - Back panel

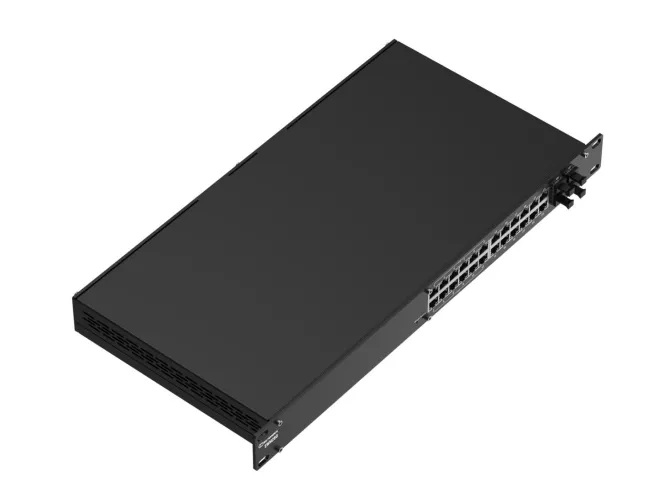

  • Teltonika SWM280 L2+ 24 Port Switch (SFP, PoE) - Top, side view

Teltonika SWM280 L2+ 24 Port Managed Ethernet Switch with SFP and PoE

Call for Availability
Item Number: 21209
Model: SWM280000200
Quantity:
Have a large deployment?
Request a Quote

Price:

$349.00

The Remote Management System (RMS) is designed to conveniently monitor and manage all your Teltonika Networks networking devices. The system allows to securely gather status information of your devices and to change their configuration even if the devices do not have public IP addresses. Note that this subscription is good for one device for 10 years of RMS Management usage only. It will not provide any data for RMS Connect or RMS VPN (these services require a client use Data packs)
Add Teltonika Remote Management System (RMS) - details
RMS Credits are a flexible option as they can be assigned on the device to get it online on the platform or exchanged for company data in case you need more of it. Each credit is active on a device for 30 days and would allow the device to be monitored/connected for this activation time. Note that each new device added to the system has trial service which would be active for 1 month, though, TAP series devices have trial service that is valid for 2 years.
Add Teltonika Remote Management System (RMS) Credits - details
Connection data packs are an alternative to Company data if you expect a lot of traffic going through a RMS Connect session on a specific device or RMS VPN hub to which that device is assigned. A device with active data pack will have its own data pool that would take higher priority than the company data pool and will be active for a specified time period. Connection data packs are currently available in a 10-year 150GB option. They MUST be purchased along with a Management Pack. A single pack can only be active on a single device, once it is activated - it can not be transferred (special conditions apply, please contact Teltonika support regarding this).
Add Teltonika Remote Management System (RMS) Data Pack - details
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

Teltonika SWM280 L2+ 24 Port Managed Switch with SFP and PoE Support

 Users will also benfit greatly from the 2 years of included cloud support via RMS management.

FEATURES

Ethernet

  • Fiber: 4 x SFP ports
  • IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z
  • ETH: Multi-layer managed 24 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

Performance Specifications

  • Bandwidth (Non-blocking): 56 Gbps
  • Forwarding rate: 83.33 Mpps
  • Packet buffer: 512 KB
  • MAC address table size: 8K entries
  • Jumbo frame support: 10000 bytes

PoE Out

  • PoE ports: Port 1-12
  • PoE Standards: 802.3af and 802.3at Alternative A
  • PoE Max Power per Port (at PSE): 30 W
  • Total PoE Power Budget (at PSE): 300 W

Power

  • Connector: C14 connector
  • Input voltage range: 100-240 VAC, 50/60 Hz
  • PoE-out input voltage range: 9 – 30 VDC
  • Power consumption: Idle: 5.5 W / Max: 20 W

Physical Interfaces

  • Ethernet: 24 x RJ45 ports, 10/100/1000 Mbps
  • Fiber: 4 x SFP ports
  • Status LEDs: 1 x Power LED, 48 x ETH status LEDs, 1 x Status LED, 4 x SFP status LEDs
  • Power: 1 x C14 connector
  • Reset: Software reset button
  • Other: 1 x Grounding screw

Physical Specification

  • Casing material: Anodized aluminum housing and panels
  • Dimensions (W x H x D): 483 x 44 x 234 mm
  • Weight: 1770 g
  • Mounting options: Rack mounting kit

Operating Environment

  • Operating temperature: -40 °C to 75 °C
  • Operating humidity: 10% to 95% non-condensing
  • Ingress Protection Rating: IP30

Regulatory & Type Approvals

  • Regulatory: CE, UKCA, CB, RCM, FCC, IC

Warranty

Teltonika products include a 2 year manufacturer warranty.

swm280-datasheet-v10(21209).pdf
