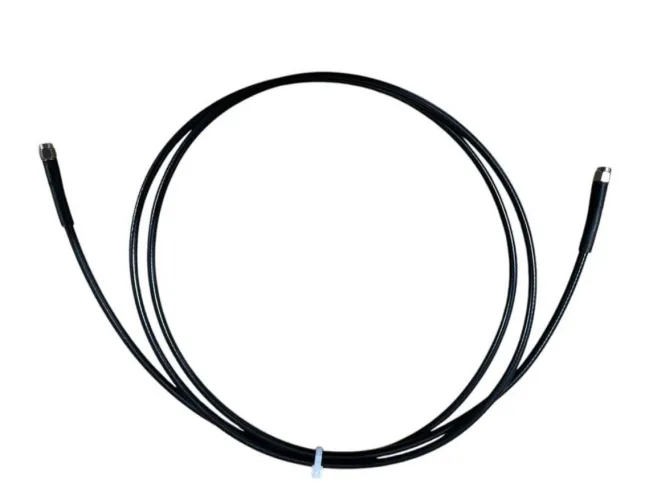

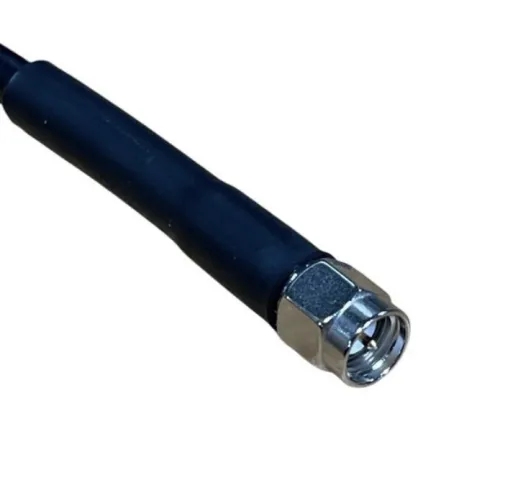

This 6' RG58 equivalent cable has an SMA/Male connector on one side and an SMA/Male connector on the other side. It is used to connect two cables or devices that are using SMA/Female connectors.
Specifications:
- Cable length: 6'
- Connectors: SMA/Male
- Impedence: 50ohms
- Cable diameter: 3/16"
Signal Loss:
The amount of signal attenuation you'll see depends on which frequency you're using. This cable averages approximately 1dB of signal loss.
Attenuation for each frequency is below:
- 700mhz: 0.6dB
- 800mhz: 0.7dB
- 1700mhz: 1dB
- 1900mhz: 1.1dB
- 2100mhz: 1.1dB
- 2400mhz: 1.2dB
- 2500mhz: 1.3dB
Approximately .5dbm is lost at each connection between 2 cables
NOTE: To prevent excessive signal loss, this cable should NOT be daisy chained with other cables! It is always better to use one longer piece of cable than to screw two shorter cables together.
