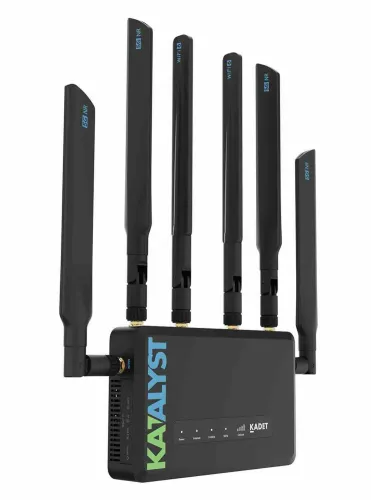

Katalyst KADET 5G Router - Katalyst-KAT-K300NB

Katalyst KADET K300NB 5G/ LTE Cat 19 Router

11 Support Docs

Call for Availability

Item Number: 21272
Model: Katalyst-KAT-K300NB

Quantity:

Have a large deployment?
Request a Quote

Add a Cellular Data Plan

Price:

$469.00

General

Details

Customer Reviews

Q & A

Support

Photos & Videos

Katalyst KADET K300NB 5G/ LTE Cat 19 Router Meet the Katalyst KADET 5G Cat 19 Router This business ready router is your new secret weapon for staying connected. Utilize up to 2 cellular networks* (one SIM connection at a time; failover only) and 1 wired WAN at up to 2.5Gbps. With overall speeds capable of up to 3Gbps, this router can support bandwidth for up to 200 users! *Compatible with Verizon, AT&T, US Cellular, and T-Mobile Networks. SPECIFICATIONS CPU : MediaTek Dual-core MT7981A, @1.3GHz Memory / Storage : DDR4 512 MB / EMMC 8GB Protocol : IEEE 802.11a/b/g/n/ac/ax Wi-Fi Speed : 574Mbps (2.4GHz), 2402Mbps (5GHz) Antennas : 4 x Cellular Antennas (SMA, 600M~6GHz), 2x Wi-Fi Antennas (PR-SMA, 2.4G~2.5GHz, 5.15~5.84GHz) Cellular : 5G NR CAT19 Battery : N/A SIM Card Slot : 2x Nano (4FF) TF Card Slot : Max.1TB USB Port : USB 2.0 Type-A Ethernet Port : 1 x WAN port, 1 x LAN ports Ethernet Speed : WAN Port: 10/100/1000/2500Mbps LAN Port: 10/100/1000Mbps Power Input : DC5521, 12V/2.5A (5.5*2.1mm) [default adapter] / 24V Power Consumption : <14W Dimension / Weight : 6.10 x 3.74 x 1.42in (155 x 95 x 36mm) / 1.15lbs (520 g) SOFTWARE FEATURES Operating System : OpenWrt Network Mode : Routing, AP, Wireless Bridge, Wired Bridge Ethernet Dialing Mode : DHCP, Static, PPPoE Repeater Mode : Scans and connects to SSID Connects to hidden SSID 4G/5G Modem : Sets AT command Automatic / Manual setting Receives SMS Display signal strength Wireless Configuration : Switching on and off wireless AP Modifying and hiding SSID Modifying encryption mode and password Channel modification Bandwidth modification Modifying transmission power Guest SSID Display Flow Statistics (KCloud Platform Required) : Display product model, name, IP addreess, MAC address Current rate Flow statistics QoS setting Client List : Show current connected clients Disable a client (no internet access) Firewall Function : Port forwarding open port DMZ VPN : OpenVPN client & server Maximum OpenVPN Speed: 150Mbps WireGuard client & server Maximum WireGuard Speed: 300Mbps Policy routing System Function : Restart Restore factory settings Change IP address range on LAN side Change time zone MAC address clone Encrypted DNS DDNS Cloud remote management Remote web management Remote SSH management Installing / uninstalling packages Drop-in Gateway mode Multi-WAN GPS : View current and historical location data WHAT'S IN THE BOX 1 x Kadet Router 1 x Power Adapter 2 x Wi-Fi Antennas 4 x 5G NR Antennas 1 x Ethernet Cable 1 x Warranty Card 1 x User Manual 1 x Wall-mount Kit 1 x 10GB USA 30-DAY Data SIM Card Katalyst-KAT-K300NB Katalyst-KAT-K300NB

Katalyst

Router

$ $469.00 https://5gstore.com/product/21272_katalyst_kadet_k300nb_5g_router

Meet the Katalyst KADET 5G Cat 19 Router

This business ready router is your new secret weapon for staying connected. Utilize up to 2 cellular networks* (one SIM connection at a time; failover only) and 1 wired WAN at up to 2.5Gbps. With overall speeds capable of up to 3Gbps, this router can support bandwidth for up to 200 users!

*Compatible with Verizon, AT&T, US Cellular, and T-Mobile Networks.

SPECIFICATIONS

CPU: MediaTek Dual-core MT7981A, @1.3GHz
Memory / Storage: DDR4 512 MB / EMMC 8GB
Protocol: IEEE 802.11a/b/g/n/ac/ax
Wi-Fi Speed: 574Mbps (2.4GHz), 2402Mbps (5GHz)
Antennas: 4 x Cellular Antennas (SMA, 600M~6GHz), 2x Wi-Fi Antennas (PR-SMA, 2.4G~2.5GHz, 5.15~5.84GHz)
Cellular: 5G NR CAT19
Battery: N/A
SIM Card Slot: 2x Nano (4FF)
TF Card Slot: Max.1TB
USB Port: USB 2.0 Type-A
Ethernet Port: 1 x WAN port, 1 x LAN ports
Ethernet Speed: WAN Port: 10/100/1000/2500Mbps LAN Port: 10/100/1000Mbps
Power Input: DC5521, 12V/2.5A (5.5*2.1mm) [default adapter] / 24V
Power Consumption: <14W
Dimension / Weight: 6.10 x 3.74 x 1.42in (155 x 95 x 36mm) / 1.15lbs (520 g)

SOFTWARE FEATURES

Operating System: OpenWrt
Network Mode: Routing, AP, Wireless Bridge, Wired Bridge
Ethernet Dialing Mode: DHCP, Static, PPPoE
Repeater Mode:
- Scans and connects to SSID
- Connects to hidden SSID
4G/5G Modem:
- Sets AT command
- Automatic / Manual setting
- Receives SMS
- Display signal strength
Wireless Configuration:
- Switching on and off wireless AP
- Modifying and hiding SSID
- Modifying encryption mode and password
- Channel modification
- Bandwidth modification
- Modifying transmission power
- Guest SSID
Display Flow Statistics (KCloud Platform Required):
- Display product model, name, IP addreess, MAC address
- Current rate
- Flow statistics
- QoS setting
Client List:
- Show current connected clients
- Disable a client (no internet access)
Firewall Function:
- Port forwarding
- open port
- DMZ
VPN:
OpenVPN client & server
- Maximum OpenVPN Speed: 150Mbps
WireGuard client & server
- Maximum WireGuard Speed: 300Mbps
Policy routing
System Function:
- Restart
- Restore factory settings
- Change IP address range on LAN side
- Change time zone
- MAC address clone
- Encrypted DNS
- DDNS
- Cloud remote management
- Remote web management
- Remote SSH management
- Installing / uninstalling packages
- Drop-in Gateway mode
- Multi-WAN
GPS: View current and historical location data

WHAT'S IN THE BOX

1 x Kadet Router
1 x Power Adapter
2 x Wi-Fi Antennas
4 x 5G NR Antennas
1 x Ethernet Cable
1 x Warranty Card
1 x User Manual
1 x Wall-mount Kit
1 x 10GB USA 30-DAY Data SIM Card

Katalyst_Kadet_SetupGuide(21272).pdf

Katalyst_Kadet_SpecSheet(21272).pdf

Popular Comparisons

Specifications:

Country of Origin	China
No. of Cellular Connectors	4
No. of WiFi Connectors	2
No. of GPS Connectors	1
Cellular Connector	SMA Female
WiFi Connector	RP-SMA Female
GPS Connector	SMA Female
No. of LAN Ports	1
No. of WAN Ports	1
No. of Fiber (SFP) Ports	0
No. of Serial Ports	0
No. of Embedded Modems	1
Ports Configurable as LAN/WAN	No
WAN Throughput Speed	2.5 Gbps
SIM Card Size	4FF
eSIM Support	No
Length (in)	6.1
Width (in)	3.7
Height (in)	1.42
Weight (lb)	1.15
Minimum Temperature (F)	32
Maximum Temperature (F)	104
Material	ABC + PC
Antennas Included	Yes
Modem Expansion Slot	No
Modem Replaceable	No
FIPS Certified	No
WiFi Support	WiFi 7
Cloud Management Included	No
Power Input	DC, 9-36V
Bluetooth	No
Bonding Support	No
IP Passthrough	Yes
