Hercules Screwmount GPS/GALILEO-3M and Cellular-3M, GEN II SAW - MA104.C.AB.015

Hercules Screwmount GPS/GALILEO-3M and Cellular-3M, RG-174 SMA(M), GEN II SAW

Call for Availability
Item Number: 21601
Model: MA104.C.AB.015
Quantity:
Have a large deployment?
Request a Quote

Price:

$63.93

Similar Products Compare All...
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

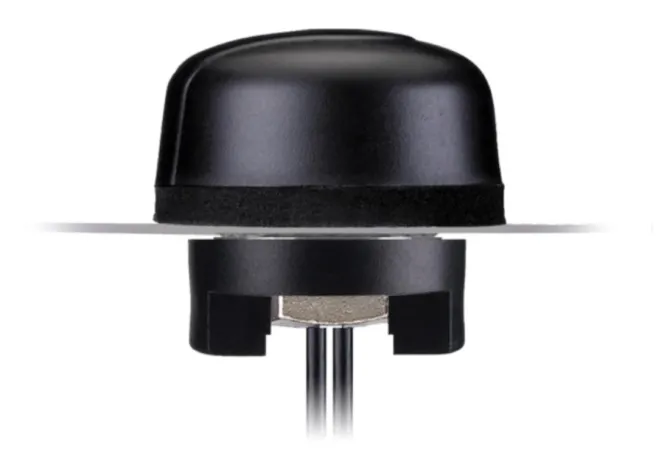

The MA.104.C GPS/GALILEO/Cellular Combination Hercules Antenna is a combination high-performance GPS/GALILEO and penta-band cellular antenna solution for reliable asset tracking and remote monitoring. Durable UV and robust PC housing is IP65 rated, resistant to vandalism and direct attack. At only 29 mm height it complies with the latest EU height restrictions directives for roof-mounted objects, with a diameter of 49 mm. It is designed to not catch on tree-branches. The Hercules can be mounted on metal or non-metal structures as it has a metal ground-plane base integrated inside.

MA104_C_AB_015(21601).pdf



Specifications:

Country of Origin Taiwan
No. of Cellular Connectors 1
No. of WiFi Connectors 0
No. of GPS Connectors 1
Cellular Connector SMA Male
GPS Connector SMA Male
Antenna Type Outdoor
Antenna Style Omni
Antenna Mount Bolt
Antenna Color Black
Length (in) 1.9
Width (in) 1.9
Height (in) 1.1
Weight (lb) 0.5
Maximum Gain 0.4
Impedance Ω (Input/Output) 50
Cable Length (in) 118
Cable Type RG-174
Minimum Temperature (F) -40
Maximum Temperature (F) 185
Material UV resistant PC
VSWR (Voltage Standing Wave Radio) <3.5.0:1
