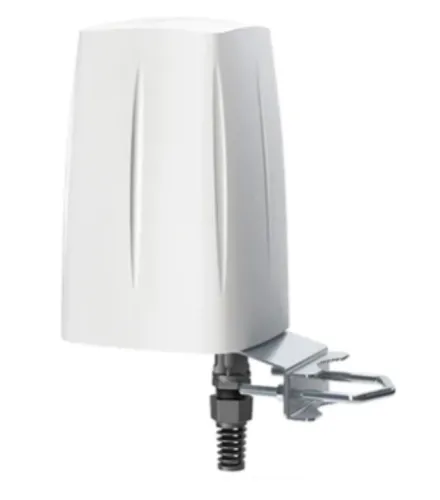

Teltonika Outdoor 4G LTE/ 5G/ Wi-Fi/ GPS antenna for RUT9 series routers

Outdoor LTE/Wi-Fi/GPS antenna for RUT9-series routers.

Compatible wth these Routers:

• RUT901
• RUT906
• RUT951
• RUT956

SPECIFICATIONS

LTE/ 5G ANTENNA

• Frequency range: 617 - 960, 1700 - 2700, 3300 - 4300 MHz
• Polarisation: Vertical
• Radiation pattern type: Omnidirectional
• Gain: Max 4.5 dBi
• V.S.W.R: < 2.50
• Impedance: 50 Ω
• Connector type and count: 2x SMA male

GNSS ANTENNA

• Frequency range: 1560 - 1610 MHz
• Polarisation: RHCP
• Gain: 28 dBi
• V.S.W.R: < 2.00
• Impedance: 50 Ω
• Connector type and count: 1x SMA male
• Current consumption: 2.5 - 6.5 mA
• Supply voltage: 2.5 - 6.5 VDC

WI-FI ANTENNA

• Frequency range: 2400 - 2500, 4700 - 6000 MHz
• Polarisation: Vertical
• Radiation pattern type: Omnidirectional
• Gain: Max 7.5 dBi
• V.S.W.R: < 2.00
• Impedance: 50 Ω
• Connector type and count: 2x RP-SMA male

MECHANICAL/ENVIRONMENTAL

• Cable: 4x RG316, 1x RG174
• Operating temperature: -40 °C to 75 °C
• Mounting method: Wall, ceiling, mast
• IP rating: IP68
• Weight: 1500 g
• RoHS compliant: ✓
