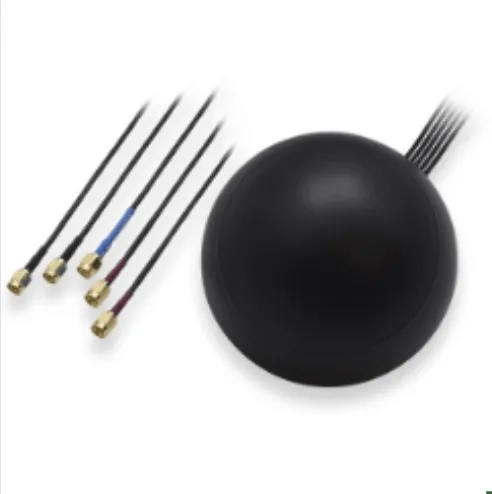

COMBO MIMO Mobile/GNSS/WIFI ROOF SMA antenna

FEATURES

LTE MIMO ANTENNA

• Frequency range: 698 – 960, 1710 – 2690 MHz
• Polarization: Linear
• Gain: 3.0 dBi
• V.S.W.R: < 3.0
• Impedance: 50 Ω
• Connector type and quantity: 2x SMA Male

WI-FI ANTENNA

• Frequency range: 2400 – 2483.5, 4900 – 5825 MHz
• Polarization: Linear
• Gain: 2.0 dBi
• V.S.W.R: < 2.5
• Impedance: 50 Ω
• Connector type and quantity: 2x RP-SMA Male

GNSS ANTENNA

• Frequency range: 1575.42 – 1610 MHz
• Polarization: RHCP
• LNA Gain: 28 ± 2 dB
• LNA noise figure: ≤1.5 dB
• Impedance: 50 Ω
• Supply voltage: 3 – 5 VDC
• Current consumption: < 15 mA
• Connector type and quantity: SMA Male

MECHANICAL/ENVIRONMENTAL

• Mounting method: Screw
• Radome ingress protection rating: IP65 (exclude cable outlet)
• Radome material: ABS
• Housing dimensions: Ø 110 x 55 mm
• Cable: 5x RG174, 3000 mm
• Operating temperature: - 40 ~ +85 °C
• Weight: 535 ± 10 g
• UV resistance: Yes
• RoHS compliant: Yes

Teltonika COMBO MIMO Mobile/GNSS/WIFI ROOF SMA antenna is compatible with the following Teltonika devices:

RUT955; RUTX11
