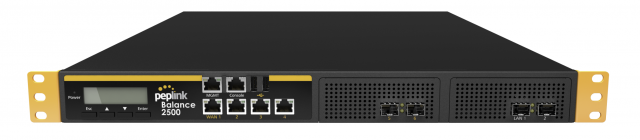

Peplink Balance 2500-2SFP Load Balancing/Bonding Router (4x GE WAN + 2x 10G SFP)

In Stock

Item Number: 6790
Model: BPL-2500-2SFP

Contact Us For Pricing

Peplink provides a one-year standard warranty at no additional charge. This warranty period can be extended for an additional 1 or 2 years if desired.

There is a setup fee of $10 for all warranty/license items (you will see this fee in your cart at checkout). If you are purchasing multiple warranties/licenses, you will only be charged the fee ONCE, and if you order more than 5, this fee is WAIVED.
Extended Warranty (optional): - details
SmartCare is an additional support option that can be added for one or three years.

The 1-year or 3-year SmartCare packages include:
  • Standard Warranty for 1 or 3 years
  • Free Firmware Upgrades for 1 or 3 years
  • Advance Hardware Replacement for RMA for 1 or 3 years (i.e. if your device needs to be replaced, Pepwave will ship you a replacement without having to receive the defective unit first)
There is a setup fee of $10 for all warranty/license items (you will see this fee in your cart at checkout). If you are purchasing multiple warranties/licenses, you will only be charged the fee ONCE, and if you order more than 5, this fee is WAIVED.
SmartCare Support (optional): - details
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

Large Enterprise Solutions: Peplink 2500-2SFP
Large businesses need dependable, secure and cutting-edge internet and cellular connections. The Peplink 2500-2SFP bonding and multiple WAN load balancing router provides your enterprise with the speed and the affordability you need to meet the internet and voice needs of everyone — up to 20,000 users — with reliable connectivity and tremendous bandwidth.

The Future of Connectivity: Load Balancing Routers
Peplink 2500-2SFP is poised to take your enterprise into the future, even when the network’s traffic is at its heaviest. Improved performance, video stream optimization and intelligent bonding algorithms keep your network running smoothly with no downtime. Enjoy automatic failover with this multiple WAN load balancing router. The 2500-2SFP router features two SFP+ WAN and LAN ports that support up to 10 Gigabit Ethernet speeds. It also includes four Gigabit Ethernet WAN ports and a USB modem port. In addition, you’ll enjoy enhanced security with the military-grade VPN encryption with SpeedFusion — the trusted firewall and Web-blocking tool that Peplink products are known for.

This 10G router also includes advanced QoS options for bandwidth management and InControl 2 cloud management. This management feature provides you with the flexibility you need, including Drop-In Mode, so you can easily add (or modify) this multiple WAN load balancing router to your network without modifying other hardware or settings.

Peplink Large Business Solutions at 5GStore.com
The affordable large-enterprise router is a cost-effective alternative to leased lines, bonding the bandwidth of up to 13 cable/DSL, 4G LTE/3G and other internet connections from multiple providers. Want to learn more about how you can save money and streamline your connectivity needs in your business? Contact 5GStore.com. With 5GStore.com, you’ll receive a year of free tech support in addition to unlimited access to our support portal.

5Gstore is a Peplink Certified PartnerRouter Features:

  • Internet Connections Supported: 4 (GE) & 2 (10G SFP+), 1 USB (view full compatibility chart)
  • WiFi Standard: No built-in WiFi. Add an access point (like the AP One Mini) if WiFi is needed.
  • WiFi Range: N/A
  • Ethernet ports: 2 x 10G SFP+ WAN ports, 4 x GBE WAN ports, and 2 x 10G SFP+ LAN ports
  • Bonding: SpeedFusion VPN Bonding. NOTE: Many factors influence the real-world throughput you'll see from bonded connections, including latency, connection type, connection speeds, traffic type, and reliability on both sides of the SpeedFusion tunnel. Cellular users should note that bonded cellular connections suffer from "flow control" of TCP traffic at the carrier level, and 5Gstore cannot guarantee that bonding multiple cellular connections will result in faster speeds (however, the other benefits of SpeedFusion remain, such as unbreakable VPN, session persistence, and 100% up-time as long as you have 1 healthy WAN).


Features:

  • Designed for large enterprises/campus
  • Recommended users: 5000-20000+
  • Inbound load balancing (distributes inbound data traffic over multiple WAN links to computers behind Peplink Balance)
  • Speedfusion bandwith bonding
  • Built-in WLAN controller
  • Bandwidth Monitor (great for mobile broadband users with a monthly data allowance!)
  • PPTP VPN server
  • Advanced QoS
  • Link controller
  • Drop-in Mode (allows the router to be deployed in an existing network without incurring any configuration changes to existing devices, e.g. routers, firewalls, etc.)
  • 3G/4G Modem Support (view list of compatible devices)

click the image above for a demo of the Peplink admin interface!

Specs:

  • Hardware:
    • LAN ports: 2 x 10G SFP+ LAN ports
    • WAN ports: 4 (GE) & 2 (10G SFP+)
    • USB WAN modem port: 1
    • Dimensions: 1.73" x 17" x 21.7"
    • Weight: 26.5 lbs
    • Power Requirements: Universal Input 100V to 240V AC
    • Power Consumption: 230W
    • 1U Rackmount
    • High Availability
    • LAN Bypass
  • Capacity:
    • Recommended users: 5000-20000+
    • Router throughput: 8Gbps
  • Wan:
    • Support for PPPoE, Static IP, DHCP
    • WAN Link Health Check
    • PING
    • DNS Lookup
    • HTTP
    • Bandwidth Allowance Monitor
    • IPv6 Support
    • USB 4G/3G Modem Support
  • Lan:
    • Extended DHCP Option
    • DHCP Reservation
    • Support for Dynamic DNS services
      • changeip.com
      • dyndns.org
      • no-ip.org
      • tzo.com
      • DNS-O-Matic
    • DNS Proxy for LAN Clients
  • Load Balancing:
    • Intelligent Failover
    • Session Persistence
    • Per-Service Load Distribution
    • Multiple Algorithms:
      • Weighted
      • Enforced
      • Persistence
      • Priority
      • Overflow
      • Least Used
      • Lowest Latency
  • Complete VPN Solution:
    • SpeedFusion Bandwidth Bonding
      • Number of SpeedFusion Peers: 4000
      • SpeedFusion Throughput: 2Gbps
      • SpeedFusion Features:
        • Site-to-Site VPN
        • Bandwidth Aggregation
        • Intelligent Failover
        • 256-bit AES Encryption
        • Pre-shared Key Authentication
        • Dynamic Routing
    • PPTP VPN Server
      • Recommended PPTP VPN Users: 1000
    • RADIUS, LDAP Authentication
    • IPsec VPN (Network-to-Network)
      • Number of IPsec Tunnels: 800
      • IPsec only supports connection with Cisco, Juniper, Peplink or Pepwave devices
  • Advanced QoS:
    • User Groups
      • Bandwidth Reservation
      • Individual Bandwidth Limit
    • Application Prioritization
      • By User Groups
      • SIP, HTTPS, VPN QoS
      • Custom Application QoS
  • Networking:
    • NAT and IP Forwarding
    • Static Routes
    • Port Forwarding
    • Many to One, One to One NAT
    • NAP Pool
    • SIP ALG, H.323 ALG
    • UPnP, NAT-PMP
    • WINS Server
  • WLAN Controller:
    • Support for Pepwave AP Series
      • Maximum Number of AP Support: free license to manage 20 APs included; additional license can be purchased to support up to 1500 APs
    • Customizable Captive Portal
    • Auto AP Discovery
    • Auto AP Firmware Management
    • AP Profile Configuration
  • DNS:
    • Built-in Authoritative DNS 7
      • Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT records
  • Security:
    • DoS Prevention
    • Stateful Firewall
    • Web blocking
  • Device Management:
    • Web Administrative Interface
    • Command Line Interface
    • InControl Cloud Management
    • Email Notfication
    • Active Client & Session Lists
    • Bandwidth Usage Statistics
    • Syslog
    • SNMP v1, v2c and v3
  • Support and Warranty:
    • 1-Year Standard Warranty
    • 1-Year Firmware Upgrade
  • Certifications
    • CE
    • RoHS
    • FCC
