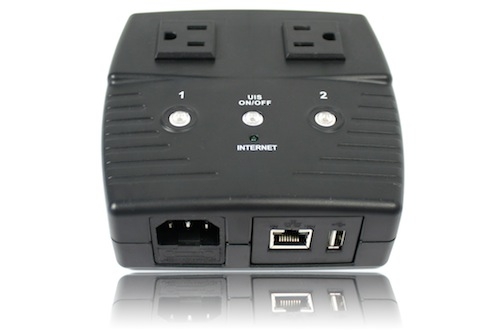

5Gstore 2-Outlet IP Switch for Remote Automation - App Controlled
$104.99 $89.99 |
= |
$798.99
 |
| Monitor and reboot your router remotely! |
| |
Sierra Wireless AirLink Raven RV50X - LTE Advanced
|
+ |
AC Power Supply for Sierra ES/GX/LS/MP/RV/RX and CloudGate
 |
= |
$733.00
|
| Only the hardwire power harness is included! |
| |
*TOP 10 Product of 2022*
This router features an embedded modem and you will need a SIM card with active service from a compatible provider to use it. The RV50 has a standard 2FF SIM slot - if you plan to use a microSIM, you'll need the micro-to-standard SIM adapter).

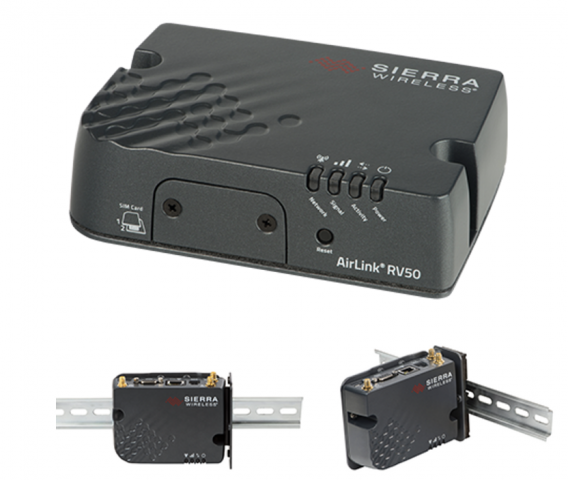

The AirLink® Raven RV50 is the industry’s lowest power consuming LTE gateway. Simple to install and easy to manage, the Raven RV50 industrial gateway is designed to connect critical assets and infrastructure. Ideal for industrial-grade applications in energy, utilities and smart-city infrastructure, the Raven RV50 provides real-time remote connectivity for SCADA, distribution management systems and metering.
With LTE coverage on major global networks, the Raven RV50 brings the benefits of broadband connectivity to the most challenging environments, where servicing is not an option and power is often scarce. It is the industry’s only fully operational 4G gateway with 2G power consumption. LTE bandwidth makes it a viable alternative to costly wired and wireless technologies, providing a future-proof solution that protects investment.
Router Features:
- Internet Connections Supported: 1 Embedded LTE Advanced IMPORTANT: you will need a 2mm Hex L-wrench (not included) to access the SIM slot on the router!
- Networks Supported for Embedded Modem: LTE: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 700(B12), 700(B13), 800(B20), 1900(B25), 850(B26), 700(B29), TDD B41; WCDMA: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 900(B8).
- WiFi Standard: N/A
- WiFi Range: N/A
- Ports: 1 Ethernet, 1 RS-232 serial
- Power supply: Hardwire DC power supply; AC power supply and cigarette lighter power supply are available separately
- Size: 4.69" x 1.34" x 3.45"
Your router will work on any carrier, but we are curious which carrier you plan to activate
BEST-IN-CLASS REMOTE MANAGEMENT
The Raven RV50 can be remotely managed by AirLink Management Service (ALMS)—the cloud management solution ranked “best-in-class” by ABI Research. ALMS supports over-the-air device registration, configuration and software updates. Variables such as signal strength, network technology, location, temperature and voltage can be remotely monitored to help maintain connectivity. Dashboards display up-to-date views of the entire deployment, and custom reports can be set-up to monitor critical events and prevent downtime.
INSTANT INTEGRATION
The Raven RV50 is designed to install directly into existing infrastructure. Offering both serial and Ethernet connectivity, it can be used to connect devices like PLCs and RTUs, and transmit a wide variety of protocols like Modbus/DNP3 with ease. The Raven RV50 can also be integrated directly into existing management systems via SNMP.
INTELLIGENCE AT THE EDGE
The Raven RV50’s Application Framework (AAF) provides programmability for leading-edge on-board data gathering, real-time processing and integration with the Sierra Wireless IoT Acceleration Platform. Processing data from connected devices, and making decisions at the edge can all be realized with the Raven RV50.
SECURE INDUSTRIAL COMMUNICATIONS
The Raven RV50 is loaded with features to secure critical data. It supports secure communications to multiple back-end systems by providing up to five concurrent VPN sessions. Remote authentication management allows enterprise-grade systems to manage access to devices in the field. Finally, port filtering and trusted IP protect the devices connected to the Raven RV50 from unwanted access.
Benefits:
- Provides LTE broadband connectivity to remote locations and in harsh environments
- Ultra-low power consumption, ideal for solar or battery powered installations
- Maximizes longevity of deployed equipment and protects investments with LTE
- Improves ROI by supporting multiple network operators without additional hardware costs
- Powerful remote management solution
- Built-in, class-leading voltage transient protection provides superior reliability and continuous operation
- Proven reliability and over 1 million AirLink gateways deployed
- Industry leading warranty includes support, software updates and advance replacement
Specs:
- Cellular WAN
- Carrier Approvals: Verizon, AT&T, T-Mobile USA, Other Major carriers pending
- Supported Frequency Bands
- LTE: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 700(B12), 700(B13), 800(B20), 1900(B25), 850(B26), 700(B29), TDD B41
- GSM/GPRS/EDGE: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 900(B8)
- Industry Approvals: FCC, IC, PTCRB, R&TTE, GCF, CE
- Software defined radio with automatic network operator switching
- Dual SIM Interfaces

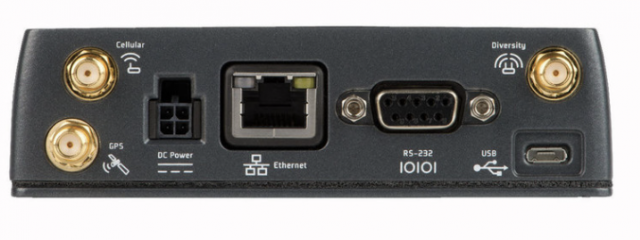

- Host Interfaces
- 10/100 Base-T RJ45 Ethernet port
- RS-232 Serial Port on DB-9 Connector
- USB 2.0 Micro-B Connector
- 3 SMA antenna connectors (Primary, Secondary/Diversity, GPS)
- Active GPS antenna support
- Input/Output
- Configurable I/O pin on power connector
- Digital Input ON Voltage: 2.7 to 36 VDC
- Configurable Pull-up for dry contact input
- Digital Open Collector Output > sinking 500 mA
- Analog Input: 0.5-36 VDC
- LAN (Ethernet/USB)
- DNS, DNS Proxy
- DHCP Server
- IP Passthrough
- VLAN
- Host Interface Watchdog
- PPPoE
- Serial
- TCP/UDP PAD Mode
- Modbus (ASCII, RTU, Variable)
- PPP
- DNP3 Interoperability
- Network and Routing
- Network Address Translation (NAT)
- Port Forwarding
- Host Port Routing
- NEMO/DMNR
- VRRP
- Reliable Static Route
- Dynamic DNS
- VPN
- IPsec, GRE, and SSL VPN Client
- Up to 5 concurrent tunnels
- Split Tunnel
- Dead Peer Detection (DPD)
- Multiple Subnets
- Events Engine
- Custom event triggers and reports Configurable interface, no programming
- Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature and Voltage
- Report Types: RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
- Event Actions: Drive Relay Output
- Security
- Remote Authentication (LDAP, RADIUS and TACACS+)
- DMZ
- Inbound and Outbound Port filtering
- Inbound and Outbound Trusted IP
- MAC Address Filtering
- PCI compatible
- Satellite Navigation (GNSS)
- 12 Channel GPS and GLONASS Receiver
- Acquisition Time: 1s Hot Start
- Accuracy:
- Tracking Sensitivity: -145dBm
- Reports: NMEA 0183 V3.0, TAIP, RAP, XORA
- Multiple Redundant Servers
- Reliable Store and Forward
- AirVantage Management Service
- Secure cloud-based device management application
- Remote provisioning and airtime activation
- Device configuration and template management
- Configurable monitoring and alerting
- Fleet wide firmware upgrade delivery
- Gateway Management Interfaces
- ALMS
- Local web user interface
- AT Command Line Interface (Telnet/SSH/Serial)
- SMS Commands
- SNMP
- Management System Access/Security
- Remote authentication (LDAP, RADIUS and TACACS+)
- Application Framework
- ALEOS Application Framework (AAF)
- LUA Scripting Language
- Eclipse-based IDE
- Integrated with AirVantage
- Dual-Core Processing
- Power
- Input Voltage: 7 to 36 VDC
- LTE Idle Power: 900 mW (75 mA @ 12 VDC)
- Standby Mode Power: 53 mW (4.4 mA @ 12 VDC) triggered on low voltage, I/O or periodic timer
- Low voltage disconnect to prevent battery drain
- Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump
- Ignition Sense with time delay shutdown
- Configurable features and ports to optimize power consumption
- Environmental
- Operating Temperature: -30°C to +70°C / -22°F to +158°F
- Storage Temperature: -40°C to +85°C / -40°F to +185°F
- Humidity: 90% RH @ 60°C
- Military Spec MIL-STD-810G conformance to shock, vibration, thermal shock, and humidity
- IP64 rated ingress protection
- Dimensions
- 119 mm x 34 mm x 85 mm (94 mm including connectors)
- Industry Certifications
- Safety: IECEE Certification Bodies Scheme (CB Scheme) UL 60950
- Vehicle Usage: E-Mark (2009/19/EC), ISO7637-2
- Hazardous Environments: Class 1 Div 2
- Environmental: RoHS, REACH, WEEE
- Support and Warranty
- 3 year standard warranty
- Optional additional 2 year warranty extension
- Unrestricted device software upgrades
- 1-day Accelerated Hardware Replacement available through participating resellers
- Minimum Requirements
- SIM card with active 3G/4G mobile broadband plan from a compatible provider
- 2mm Hex L-wrench (required to access the SIM card slot)
