Peplink EPX - LCD, 15x LTEA, 4x 10G SFP+, 8x GE - EPX-M8-LW5C1F1

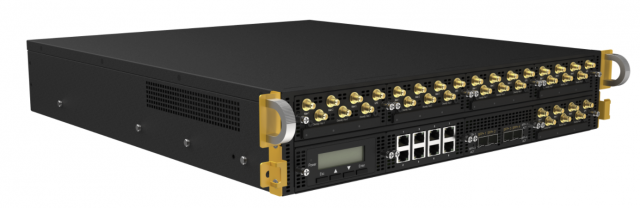

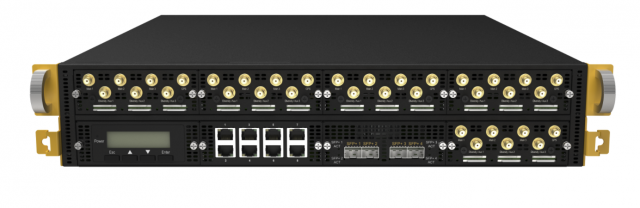

  • Peplink EPX - LCD, 15x LTEA, 4x 10G SFP+, 8x GE - Front View

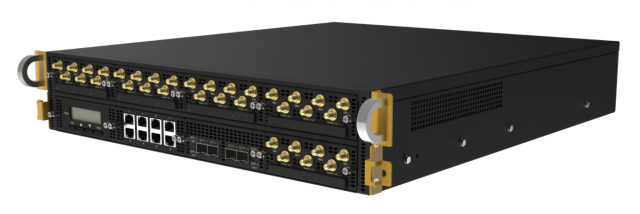

  • Peplink EPX - LCD, 15x LTEA, 4x 10G SFP+, 8x GE - Front/Side View
  • Peplink EPX - LCD, 15x LTEA, 4x 10G SFP+, 8x GE - Front/Side View

Peplink EPX with LCD Module, 15x LTE-A, 4x 10G SFP+, and 8x GE - DISCONTINUED

97 Support Docs
Call for Availability
Item Number: 8364
Model: EPX-M8-LW5C1F1
Quantity:

Price:

$31,999.00


DISCONTINUED ITEM - SCROLL DOWN FOR REPLACEMENT ITEMS
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

The EPX is a rapidly deployable, powerful, and versatile SD-WAN router that connects a wide range of WAN options from LTE-A, satellite modems, to fixed line networks. At a 19" 2U rack mountable form factor, it can combine up to 18x LTE-A connections for absolute connection reliability.

Purchase just the FlexModules for the connectivity you need. When you need more in the future, you can expand anytime. When future technologies like 5G and Firstnet appear, we will have modules to connect with those as well.

In its cellular configuration, the EPX is the most powerful wireless SD-WAN router in the industry. It can combine the bandwidth of up to 18 connections, supporting 36 SIM cards and providing gigabits of bandwidth on-the-go. The EPX can support different technologies depending on which modules you purchase. Also, when 5G technology appears, there will be modules for it too, ensuring that your investment is futureproof.

5Gstore is a Peplink Certified PartnerRouter Features:

  • Internet Connections Supported: 15 x Embedded Cat 6 LTE Advanced, 4x 10G SFP+, and 8x GE
  • Networks Supported for Embedded Modems: 4G LTE (B1/2100, B2/1900, B3/1800, B4/AWS, B5/850, B7/2600, B8/900GSM , B12/17 700a, B13/700c, B20/800DD, B25/1900+, B26/850+, B29/700d, B30/2300WCS, B41/TD 2500); WCDMA/HSPA+/DC-HSPA+ (B1/2100, B2/1900, B3/1800, B4/AWS, B5/850, B8/900)
  • WiFi Standard: No built-in WiFi. Add an access point (like the AP One Mini) if WiFi is needed.
  • WiFi Range: N/A
  • Ethernet ports: 4x 10G SFP+, and 8x GE
  • Size: 18.9 x 21.7 x 3.6 inches

Latest Blog Posts About This Product


Latest YouTube Videos About This Product




Specifications:

Country of Origin Taiwan
No. of Cellular Connectors 15
No. of WiFi Connectors 0
No. of GPS Connectors 1
Cellular Connector SMA Female
GPS Connector SMA Female
No. of LAN Ports 8
No. of WAN Ports 8
No. of Fiber (SFP) Ports 4
No. of Serial Ports 0
No. of Embedded Modems 15
Ports Configurable as LAN/WAN Yes
WAN Throughput Speed 30 Gbps
Length (in) 18.9
Width (in) 21.7
Height (in) 3.6
Minimum Temperature (F) 32
Maximum Temperature (F) 113
Antennas Included No
Modem Expansion Slot Yes
Modem Replaceable Yes
FIPS Certified No
Cloud Management Included Yes
Power Input 100V - 240V AC
Bluetooth No
Bonding Support Yes
IP Passthrough No
