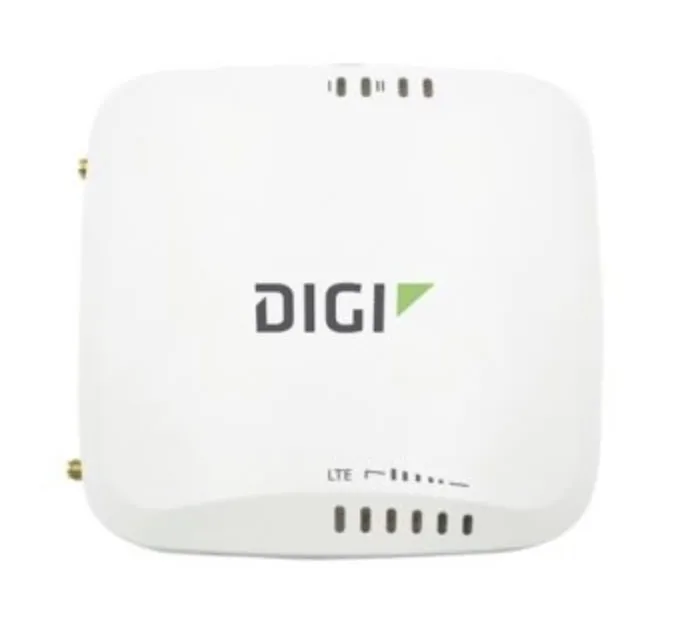

Digi 360 Cellular Solution Package for Digi EX15 (1 year) - LTE, Cat 7, US/CAN, RS-232, 1 Serial Port, Dual Ethernet, No WiFi - EX15-XX07-OUS

Digi 360 Cellular Solution Package for Digi EX15 (1 year) - LTE, Cat 7, US/CAN, RS-232, 1 Serial Port, Dual Ethernet, No WiFi

14 Support Docs
In Stock
Item Number: 16616
Model: EX15-XX07-OUS
Quantity:
Have a large deployment?
Request a Quote

Price:

$579.00

Login for Special Pricing

An optional 2 year or 4 year Digi 360 extension provides a total of 3 or 5 year Digi 360 benefits.
Optional Digi 360 Extension (extended lead times): - details
Bundle & Save Compare All...
Digi EX15 offers gigabit Ethernet and Wi-Fi connectivity for retailers and other organizations that cannot tolerate network downtime and the negative impact on revenue streams and brand reputation. EX15-XX07-OUS is Non WiFi Router.
A suite of upgradeable Digi CORE® LTE plug-in modems lets users select the cellular speeds that best fit their business requirements, including LTE Cat 4, LTE-Advanced Cat 6 and Cat 7, and FirstNet Trusted™ LTE-Advanced Pro Cat 18 for critical primary responder communications.
Combine a Digi EX15 with a dedicated wireline connection to ensure dual ISP connectivity, maximum uptime and complete business continuity for devices that must be “always on,” such as mobile kiosks, digital signs and POS systems.
You can use Digi EX15 for primary LTE connectivity, in addition to dual-connectivity/failover. Additionally, the serial port can provide out-of-band (OOB) management for remote, off-premise equipment.

Reduce the complexity of deploying and managing devices with Digi Remote Manager®, the command center of an intelligent network. Digi Remote Manager provides centralized control, management, security, edge intelligence and day-to-day network management for hundreds and thousands of distributed devices.

For fast and easy installations, a site survey battery, PoE injector and mounting accessories are included for proper placement based on optimal signal strength.

Features and Benefits

LTE-certified Digi CORE® plug-in modem

  • Scalable cellular technology allows you to match speeds to applications and future proof your network
  • Optimized connectivity to any Ethernet device
  • Battery pack for site survey to identify optimal signal strength placement
  • Multiple mounting options and accessories
  • Serial port for remote, out-of-band management
  • Zero-touch provisioning and cloud management
  • Includes 1 year of the Digi 360 solution with warranty, customer care and Digi Remote Manager® cloud management, enabling easy setup, mass configuration and management

What's in the box?

Digi EX15, Power Input: 18 VDC 1 A, Included ACccessories: Includes PSU, antennas, and remote mounting kit: temporary battery, passive PoE injector, mounting bracket and accessories.

Digi EX15

Cellular Connectivity LTE-A Cat 7 (US): B2, B4, B5, B7, B12, B13, B25, B26, B41, B42, B43, B48, B66, B71; WCDMA: B2, B5; Transfer rate (max): 300 Mbps, 150 Mbps up
Connectors (2) 50 Ω SMA (center pin: female)
SIM Slots (2) Mini-SIM (2FF); software selectable and hardware switchable
SOFTWARE AND MANAGEMENT
Remote Management Digi Remote Manager®; SNMP v3 (user installed/managed), encrypted SMS
Local Management WebUI (HTTP/HTTS); CLI (SSH, serial port)
Protocols RIP, RIPng, OSPFv2, OSPFv3, BGP, Babel, IS-IS
Management / Troubleshooting Tools FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog; NTP/SNTP
Memory 256 MB RAM, 512 MB flash
Ethernet
WI-FI (Optional)
Connectivity 2 x 2 MIMO 2.4/5 GHz: 802.11 b/g/n 2.4 GHz or 802.11 n/a/ac 5 GHz
Serial
Ports v1) RS-232 (RJ-45)
PHYSICAL
DIMENSIONS (L X W X H) 142 mm x 128 mm x 31 mm (5.6 in x 5.0 in x 1.2 in)
WEIGHT 0.2 kg (7.0 oz)
STATUS LEDS LAN (link = solid, flashing = act), WAN (link = solid, flashing = act), LTE, 5 signal, SIM 1 and 2 LEDs
ENCLOSURE Plastic
Environmental
Operating Temperature 0° C to 40° C (32° F to 104° F)
Relative Humidity 5% to 95% (non-condensing)
Warranty
Product Warranty 3-years

Latest Blog Posts About This Product


Latest YouTube Videos About This Product




Specifications:

Country of Origin China
No. of Cellular Connectors 2
No. of WiFi Connectors 0
No. of GPS Connectors 1
Cellular Connector SMA Female
GPS Connector SMA Female
No. of LAN Ports 1
No. of WAN Ports 1
No. of Fiber (SFP) Ports 0
No. of Serial Ports 1
No. of Embedded Modems 1
Ports Configurable as LAN/WAN Yes
WAN Throughput Speed 1 Gbps
SIM Card Size 2FF
eSIM Support No
Length (in) 5.6
Width (in) 5
Height (in) 1.2
Weight (lb) 0.44
Minimum Temperature (F) 32
Maximum Temperature (F) 104
Material Plastic
Antennas Included Yes
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified Yes
Cloud Management Included Yes
Power Input 18 VDC 1 A
Bluetooth No
Bonding Support Yes
IP Passthrough Yes
