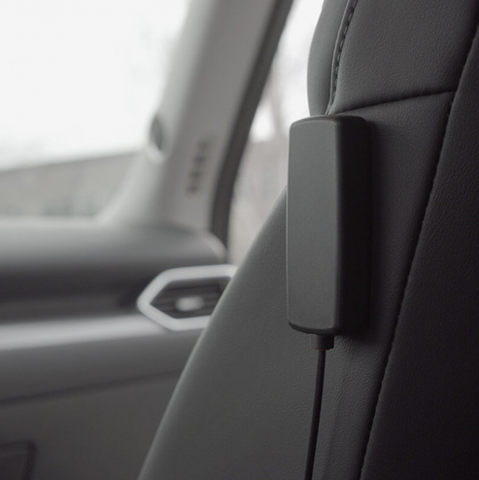

Wilson Slim Low-Profile Cellular Antenna for Vehicle Amplifiers

Call for Availability

Item Number: 8561
Model: 314401
Quantity:

Price:

$29.99

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

This is the same rebroadcasting antenna that comes with several of weBoost's in-vehicle amplifiers. The weBoost 4G Slim Low-Profile Antenna compact design makes it simpler to install, while giving you improved performance over previous models.  When connected to any weBoost multi-user cellular booster, this antenna provides enhanced reception of calls, texts and data to the booster, providing superior performance when connected in your car, truck or SUV.  Installation is simple: place the antenna vertically or horizontally and you’ll still get optimal performance.  This antenna will work with any weBoost multi-user vehicle boosters, including the Drive 4G-X, Drive 4G-X OTR, Drive 4G-M, Drive 3G-X and Drive 3G-M.

Features:

  • Works on all worldwide cellular bands for voice and 4G data: LTE/CDMA/GSM/UMTS/AWS
  • High performance for weBoost cellular repeater-boosters
  • Supports 4G LTE, 3G & 2G
  • Designed for in-vehicle installation
  • High efficiency & compact design
  • UV stable white sealed radome
  • Rugged & waterproof for all weather operation
  • Simple install
  • Ground plane independent
  • 2-year warranty


Specifications:

  • Model: 314401
  • Frequency range: 698-960 / 1710-2170 / 2500-2700 mhz
  • Antenna gain: 3.4db / 2.1db / 1.0db
  • Impedance: 50 Ohms
  • Polarization: Linear
  • Radiation Pattern: Omnidirectional
  • Max Power: 25W
  • Cable: 10' LMR100
  • Dimensions: 3.2x1.4x.5 in
  • Weight: 0.23 lbs
  • Connector: SMA Male
  • Mount: Velcro / Adhesive
  • Radome Material: ABS Anti UV
  • Radome Color: Black
  • Water Resistance: IPX Weather Rated
  • Operating Temperature: -40to+85 /-40to+185
  • Substance Compliance: RoHS
