Cradlepoint NetCloud Essentials for Branch with CBA550 Cat 4 LTE Adapter - 3 Years

70 Support Docs
Call for Availability
Item Number: 8817
Model: BB3-0550150M-N0N
Quantity:

Price:

$577.00

Related Products
Cradlepoint NetCloud Essentials for Branch - CBA550 Cat 4 - 1 Yr
$471.00
Cradlepoint NetCloud Essentials for Branch - CBA550 Cat 4 - 5 Yr
$683.00
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

The CBA550 Essentials Solutions package includes the CBA550-150M router and support for 3 years:

  • NetCloud Software (NetCloud Manager Standard, NetCloud OS, NetCloud Perimeter)
  • 24x7 Cradlepoint Support
  • Limited Lifetime Warranty

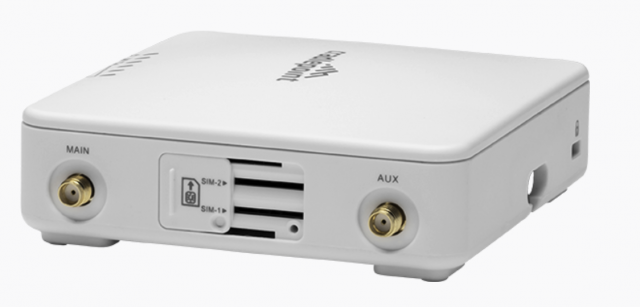

The Cradlepoint CBA550 LTE Adapter is a turnkey branch continuity solution for LTE failover that integrates seamlessly with existing network and SD-WAN infrastructure. It is equipped with Power-over-Ethernet for flexible, unobtrusive placement to optimize cellular reception. This powerful solution maximizes uptime for businesses that require always-on connectivity.

Router Features:

  • Internet Connections Supported: 1 Embedded Cat 4 LTE
  • Networks Supported for Embedded Modem: LTE: Band 2 (1900 MHz), Band 4 - AWS (1700/2100 MHz), Band 5 (850 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 66 - AWS 3 (1700/2100 MHz), Band 71 (600 MHz); WCDMA/HSPA+/UMTS: Band 2, Band 4, Band 5
  • WiFi Standard: N/A
  • WiFi Range: N/A
  • Ethernet ports: 1 x 10/100 LAN
  • Power Supply: POE only
  • Size: 3.9 × 3.9 × 1.3 in
ibr600c-data-sheet(7458).pdf
product-brief-cba550(8815)(1).pdf
product-brief-cba550(8815).pdf
spec-sheet-cba550(8815).pdf



Features:

  • WAN
    • 150M: 150/50 Mbps DL/UL FDD LTE w/HSPA+ Fallback
    • Advanced Modem Failure Check
    • IP Passthrough
    • Standby
  • LAN
    • VLAN 802.1Q
    • DHCP Server, Client, Relay
    • DNS and DNS Proxy
    • DynDNS
    • UPnP
    • DMZ
    • MAC Address Filtering
  • Management
    • Cradlepoint Netcloud Manager
    • Web UI, API, CLI
    • Data Usage Alerts (router and per client)
    • Device Alerts
    • SNMP
    • SMS control
  • Routing
    • Routing Rules
    • NAT-less Routing
    • Virtual Server/Port Forwarding
    • IPv6
  • Security
    • RADIUS and TACACS+ support *
      • *-Native support for authentication. Authorization and accounting support through hotspot/captive portal services.
    • 802.1x authentication for Ethernet
    • MAC Address Filtering
    • ALGs
    • Advanced Security Mode (local user management only)
    • Per-Client Web Filtering
    • IP Filtering
    • Content Filtering (basic)
    • Website Filtering

Specifications:

  • WAN:
    • Embedded 150M Category 4, LTE modem with DC-HSPA Failover
  • LAN:
    • One LAN 10/100 Ethernet port
  • Temperature:
    • 0° C to 50° C (32°F to 122°F) operating
    • −20° C to 70° C (−4°F to 158°F) storage
  • Humidity (non-condensing):
    • 10% to 85% operating non-condensing
    • 5% to 90% storage non-condensing
  • Power:
    • 802.3af (15 W) or 802.3at (30 W) PoE capable
  • Power Consumption (Typical):
    • Idle: 1.5W
    • Heavy Usage (max power): 5.1W
  • Size:
    • 4.8 × 4.8 × 1.7 in (122 × 122 × 42 mm)
  • Housing:
    • White plastic, locking compatible
    • Wall, desk, or DIN Rail mounting
  • Certifications:
    • FCC, CE, IC, GCF-CC, RCM (Australia & New Zealand), IDA (Singapore), SIRIM (Malayisa)
    • Safety: UL/CUL/CB Scheme
    • Materials: WEEE, RoHS, RoHS-2, California Prop 65
  • Modem Specifications:
    • Technology: LTE Cat 4 (3GPP Rel 11), DC-HSPA+
    • Downlink Rates: LTE 150 Mbps, HSPA+ 42.2 Mbps*
    • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps*
    • Frequency Bands:
      • LTE: Band 2 (1900 MHz), Band 4 - AWS (1700/2100 MHz), Band 5 (850 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 66 - AWS 3 (1700/2100 MHz), Band 71 (600 MHz)
      • WCDMA/HSPA+/UMTS: Band 2, Band 4, Band 5
    • Power: LTE 23 dBm ± 1, DC-HSPA+ 23 dBm ± 1
    • Antennas: Two SMA male (plug). The recommended maximum torque is 4 inch-pounds (4 in-lbs).
    • Industry Standards & Certs: FCC, IC, PTCRB, AT&T, FirstNet Ready, Verizon
    • SIM slots: 2 x Standard 2FF (if you plan to use a micro or nano SIM, you'll need a SIM adapter)
    • The CBA550-150M-D is certified on public safety networks for North America (U.S., Canada)
  • Package contents:
    • CBA550 with embedded 150M multi-carrier modem with SIM-based, Auto-Carrier Selection

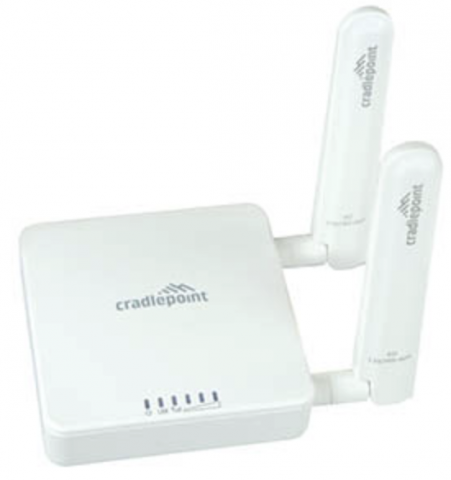

    • Universal LTE antennas
    • Ethernet cable
    • Mounting hardware
    • Safety, Regulatory, and Warranty guide
