Cradlepoint NetCloud Essentials for Branch - CBA550 Cat 4 - 5 Yr - BB5-0550150M-N0N

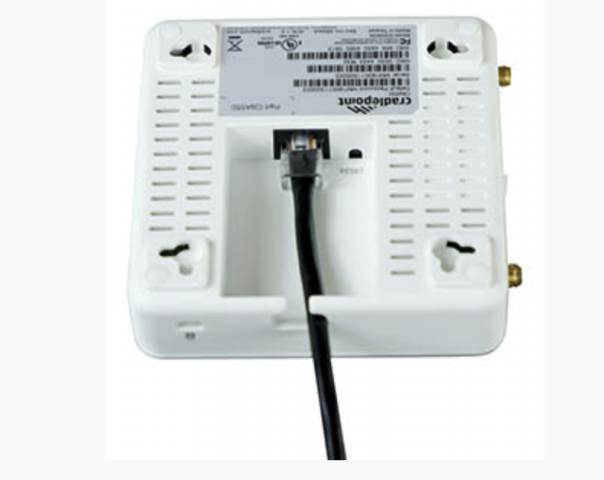

  • Cradlepoint NetCloud Essentials for Branch - CBA550 Cat 4 - 5 Yr - Back Of Device

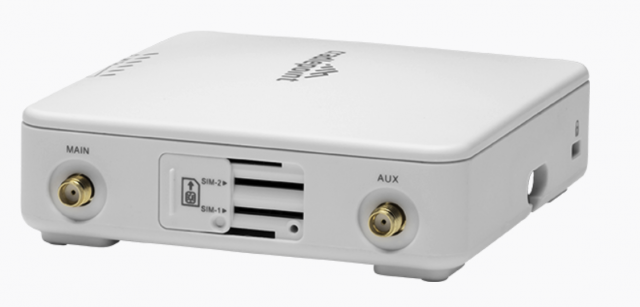

  • Cradlepoint NetCloud Essentials for Branch - CBA550 Cat 4 - 5 Yr - Sim Slots, Cellular Ports
  • Cradlepoint NetCloud Essentials for Branch - CBA550 Cat 4 - 5 Yr - Bottom - Ethernet & Reset

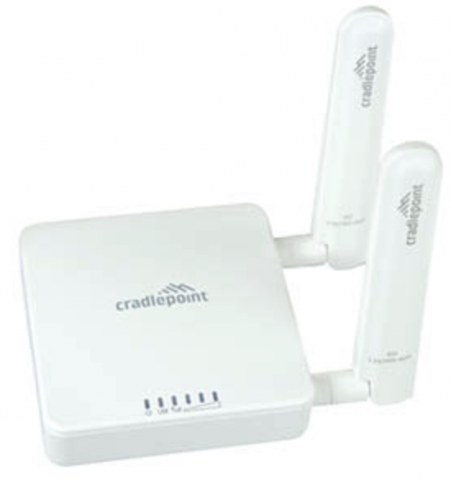

  • Cradlepoint NetCloud Essentials for Branch - CBA550 Cat 4 - 5 Yr - Photo with Antennas Attached
  • Cradlepoint NetCloud Essentials for Branch - CBA550 Cat 4 - 5 Yr - LEDs and Wall Mounting

Cradlepoint NetCloud Essentials for Branch with CBA550 Cat 4 LTE Adapter - 5 Years

64 Support Docs
Call for Availability
Item Number: 8818
Model: BB5-0550150M-N0N
Quantity:
Have a large deployment?
Request a Quote

Price:

$683.00

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

The CBA550 Essentials Solutions package includes the CBA550-150M router and support for 5 years:

  • NetCloud Software (NetCloud Manager Standard, NetCloud OS, NetCloud Perimeter)
  • 24x7 Cradlepoint Support
  • Limited Lifetime Warranty

The Cradlepoint CBA550 LTE Adapter is a turnkey branch continuity solution for LTE failover that integrates seamlessly with existing network and SD-WAN infrastructure. It is equipped with Power-over-Ethernet for flexible, unobtrusive placement to optimize cellular reception. This powerful solution maximizes uptime for businesses that require always-on connectivity.

Router Features:

  • Internet Connections Supported: 1 Embedded Cat 4 LTE
  • Networks Supported for Embedded Modem: LTE: Band 2 (1900 MHz), Band 4 - AWS (1700/2100 MHz), Band 5 (850 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 66 - AWS 3 (1700/2100 MHz), Band 71 (600 MHz); WCDMA/HSPA+/UMTS: Band 2, Band 4, Band 5
  • WiFi Standard: N/A
  • WiFi Range: N/A
  • Ethernet ports: 1 x 10/100 LAN
  • Power Supply: POE only
  • Size: 3.9 × 3.9 × 1.3 in

Latest Blog Posts About This Product


Latest YouTube Videos About This Product


Popular Comparisons

ARC CBA550 LTE Adapter Quick Start Guide(8818).pdf
cba550-serieslte-adapter-2023-08-17(8818).pdf
product-brief-cba550(8815)(1).pdf
product-brief-cba550(8815).pdf
spec-sheet-cba550(8815).pdf



Specifications:

Country of Origin Taiwan
No. of Cellular Connectors 2
No. of WiFi Connectors 0
No. of GPS Connectors 0
Cellular Connector SMA Female
No. of LAN Ports 1
No. of WAN Ports 0
No. of Fiber (SFP) Ports 0
No. of Serial Ports 0
No. of Embedded Modems 1
Ports Configurable as LAN/WAN No
WAN Throughput Speed 95 Mbps
SIM Card Size 2FF
Length (in) 3.9
Width (in) 3.9
Height (in) 1.33
Weight (lb) 0.4
Minimum Temperature (F) 32
Maximum Temperature (F) 122
Material Plastic
Antennas Included Yes
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified No
Cloud Management Included Yes
Power Input PoE
Bluetooth No
Bonding Support No
IP Passthrough Yes
