MP70, 4G LTE-A Pro Router, Global, Wi-Fi, includes 1-year AirLink Complete - 1104074

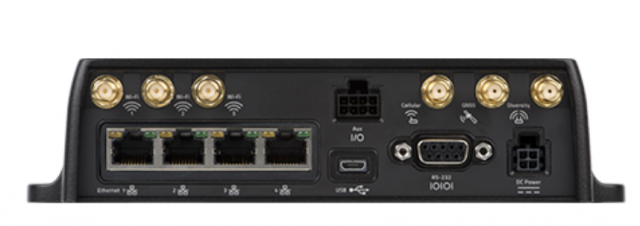

  • MP70, 4G LTE-A Pro Router, Global, Wi-Fi, includes 1-year AirLink Complete - Back

MP70, 4G LTE-A Pro Router, Global, Wi-Fi, includes 1-year AirLink Complete

18 Support Docs
Call for Availability
Item Number: 9081
Model: 1104074
Quantity:
Have a large deployment?
Request a Quote

Price:

$1,099.00

Cellular antennas are NOT included - two antennas are required for the embedded modem.
Select Cellular Antennas (required) - compare - details
The MP70 does not include WiFi antennas - three are required to use the wireless access point.
Select WiFi Antennas (required) - details
AirLink Complete is a subscription service that combines best-in-class network management software, industry-leading technical support and warranty. It is a cost-effective way to ensure your mission critical infrastructure operates securely and at peak efficiency. One year of AirLink Complete is included with all new AirLink routers except the XR90.
Extend AirLink Complete (optional) - details
Bundle & Save Compare All...
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

The Semtech (formerly Sierra Wireless) AirLink MP70 is a purpose-designed vehicle router made for demanding environments such as public safety, public transportation and commercial transit. It contains an embedded APAC modem. This mobile transit router allows you to connect laptops, smartphones and other devices to perform mission-critical tasks such as data transfer, record management and live video streaming in a vehicle.

Vehicle location and fleet management with the AirLink MP70 mobile router are fast and reliable using GNSS satellite positioning technology or the Inertial Navigation System. Integrated Vehicle Telemetry will monitor both vehicle and driver performance to proactively identify potential problems with each. The router will stand up to tough working conditions thanks to its industrial grade construction that includes die-cast aluminum housing, thermal output management, water/dust resistance and transient surge protection. 5Gstore.com provides free technical support for a year to help you get your public safety vehicle router set up for reliable always-on performance.

Router Features:

  • Internet Connections Supported: 1 Embedded LTE IMPORTANT: you will need a 2mm Hex L-wrench (not included) to access the SIM slot on the router, WiFi as WAN* (more info)
  • Networks Supported for Embedded Modem: 2100(B1), 1800(B3), 850(B5), 2600(B7), 900(B8), 850(B18), 850(B19), 1500(B21), 700(B28), TDD 38, TDD 39, TDD 40, TDD 41, 2100(B1), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19)
    TD-SCDMA: B39
  • WiFi Standard: 802.11 b/g/n/ac, dual-band 2.4GHz/5.0GHz
  • WiFi Range: 150-200'
  • Ports: 4 x 10/100/1000 LAN, 1 RS-232 serial
  • Power supply: Hardwire DC power supply; AC power supply and cigarette lighter power supply are available separately
  • Size: 7.5" x 1.75" in x 4.1"
  • pdf download the MP70 datasheet

*Compatibility with all WiFi networks cannot be guaranteed. Networks requiring authentication on a "splash page" (e.g. Starbucks WiFi) in particular can be hit or miss.

AirLink MP70 _ LTE-Advanced Vehicle Router (1104074).pdf

Latest Blog Posts About This Product


Latest YouTube Videos About This Product


Popular Comparisons

Specifications:

Country of Origin China
No. of Cellular Connectors 2
No. of WiFi Connectors 3
No. of GPS Connectors 1
Cellular Connector SMA Female
WiFi Connector RP-SMA Female
GPS Connector SMA Female
No. of LAN Ports 4
No. of WAN Ports 0
No. of Fiber (SFP) Ports 0
No. of Serial Ports 1
No. of Embedded Modems 1
Ports Configurable as LAN/WAN Yes
USB Port LAN
WAN Throughput Speed 1 Gbps
SIM Card Size 2FF
eSIM Support No
Length (in) 4.4
Width (in) 7.5
Height (in) 1.75
Weight (lb) 1.68
Minimum Temperature (F) -22
Maximum Temperature (F) 158
Antennas Included No
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified No
WiFi Support WiFi 5
Cloud Management Included Yes
Power Input 7 to 36 VDC
Bluetooth No
Bonding Support No
IP Passthrough Yes
