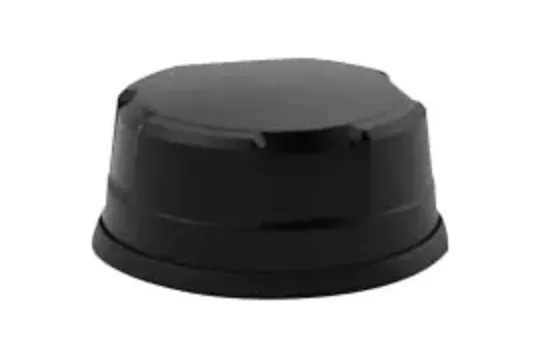

Semtech (formerly Sierra Wireless) 10-in-1 Dome 4G/5G Antenna for XR80 - Black - 6001354

Semtech (formerly Sierra Wireless) 10-in-1 Dome 4G/5G Antenna for XR80 - Black

1 Questions & Answers
Call for Availability
Item Number: 11526
Model: 6001354
Quantity:
Have a large deployment?
Request a Quote

Price:

$419.00

Related Products
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

The 10-in-1 Dome is a custom 5G single antenna solution for the AirLink XR80, tested and certified for mobile and fixed applications. The antenna has a low-profile design that contains ten isolated high-performance antenna elements in a single housing for optimal coverage; four ultra-wideband elements spanning 617-6000MHz; a high-performance GNSS antenna with an integrated 26dB gain LNA; and a 5x5 MIMO dual-band 2.4/5GHz Wi-Fi elements.

Features:

  • 4G/5G Elements
    • Peak Gain:Isotropic*
      • 4G/5G: 617-960MHz - 4dBi, 1710-3800MHz - 6dBi, 4900-6000MHz - 6dBi
  • Wifi Elements
    • Peak Gain:Isotropic*
      • Wifi:2.4GHz - 5dBi, 4.9-6.0GHz - 7dBi
  • Omni-directional
    • Bolt Mount - 19mm(3/4")

*Simulated off a groundplane and does not include cable attenuation

Specifications:

  • Directivity: Omni-directional
  • Frequency Range: 617 to 960, 1710 to 6000 Mhz, and 4900-6000MHz
  • Impedance: 50 ohm
  • Compatibility: 4G, 5G
  • Voltage Standing Wave Ratio (VSWR):<2.1 +/- 4MHz
  • Cables/Connectors
    • Cellular: C32, 16ft, FAKRA D (Purple)
    • GPS: C32, 16ft, FAKRA C (Blue)
    • WiFi: C32, 16ft, FAKRA I (Beige)
  • Dimensions: 3.1 x 7.1
  • Operating Temperature : -40°/ +80°C (-40° / +176°F )
  • Color: Black
6001354(11526).pdf

Latest Blog Posts About This Product


Latest YouTube Videos About This Product




Specifications:

Country of Origin China
No. of Cellular Connectors 4
No. of WiFi Connectors 5
No. of GPS Connectors 1
Cellular Connector FAKRA CODE D Violet Female
WiFi Connector FAKRA CODE I Beige Female
GPS Connector FAKRA CODE C Blue Female
Antenna Type Outdoor
Antenna Style Dome
Antenna Mount Bolt
Antenna Color Black
Width (in) 7.1
Height (in) 3.1
Weight (lb) 7.25
Maximum Gain 6
Impedance Ω (Input/Output) 50
Cable Length (in) 192
Cable Type C32 (cellular and WiFi) and CS29 (GPS)
Minimum Temperature (F) -40
Maximum Temperature (F) 176
VSWR (Voltage Standing Wave Radio) <2.1

There are currently no product reviews.

If you purchased this item, Login to write a review.
Q & A
Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!


Click here to submit a new question

Sort By:

Will the 10-in-1 dome antenna for the Sierra Wireless XR80 also work with the XR90?

This antenna will work with the XR90 as well, but does not support all antenna connections. We have another model specifically recommended for the XR90. Please see the product page here:

https://5gstore.com/product/11528_sierra_wireless_9-in-1_dome_4g5g_antenna_for_xr90_-_black.html
