Semtech XR60, Global modem with Dual Ethernet - 1105099
  • Semtech XR60, Global modem with Dual Ethernet - AirLink XR60 Details

XR60, 5G Router, Global, Dual Ethernet, includes 5-year AirLink Complete

17 Support Docs
In Stock
Item Number: 14613
Model: 1105099
Quantity:
Have a large deployment?
Request a Quote

Price:

$1,319.00

Antennas are NOT included - four antennas are required for the embedded cellular modem. One GPS antenna is also needed if you intend on using this feature.
Select Cellular Antennas (required) - compare - details
This device only includes the hardwire DC power supply. If you need an AC power supply, you can add one here.
Add an AC Adapter (optional) - details
Bundle & Save Compare All...

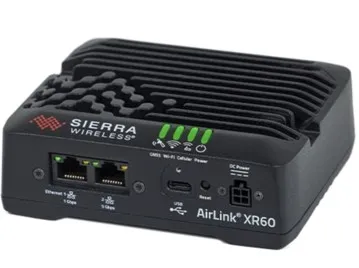

AirLink XR60: World’s Smallest Rugged 5G Router

The ultra-compact and highly ruggedized AirLink® XR60 delivers high performance 5G and Wi-Fi 6 connectivity to space-limited and harsh environments — from tight industrial enclosures to fast-moving vehicles.

With advanced networking capabilities, private network support and edge computing capabilities, the XR60 future proofs your connectivity and accelerates your digital transformation.

  • 5G

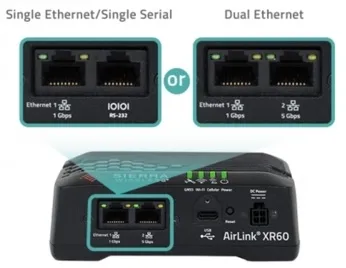

  • Dual Ethernet (1 Gbps + 5 Gbps)
  • Dual-Band GNSS
  • IP64 Rated
  • AirLink OS with AirLink Complete

The XR60 5G router now comes with 5 years of AirLink Complete.

Upon registering the XR60 router in ALMS, you’ll automatically gain access to 5 years of AirLink Complete with no annual fee and no renewal process to manage for the next 5 years!

1105099(14613).pdf
1105160(14615).pdf

Latest Blog Posts About This Product


Latest YouTube Videos About This Product


Popular Comparisons

Specifications:

Country of Origin Viet Nam
No. of Cellular Connectors 4
No. of WiFi Connectors 0
No. of GPS Connectors 1
Cellular Connector SMA Female
GPS Connector SMA Female
No. of LAN Ports 1
No. of WAN Ports 1
No. of Fiber (SFP) Ports 0
No. of Serial Ports 0
No. of Embedded Modems 1
Ports Configurable as LAN/WAN No
USB Port LAN
WAN Throughput Speed 800 Mbps
SIM Card Size 4FF
eSIM Support No
Length (in) 4.2
Width (in) 4.6
Height (in) 1.5
Weight (lb) 1.15
Minimum Temperature (F) -40
Maximum Temperature (F) 158
Material Sealed Aluminum Housing (IP64 Rated)
Antennas Included No
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified Yes
Cloud Management Included Yes
Power Input DC Power Cable
Bluetooth No
Bonding Support No
IP Passthrough Yes

There are currently no product reviews.

If you purchased this item, Login to write a review.
Q & A
Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 3Gstore will answer it!


Click here to submit a new question


Purchasing this product gets you access to the following exclusive 3Gstore resources:
Sierra Wireless AirLink OS - Port Forwarding 04/23/2026
Finding IP Addresses via Client Lists 01/09/2025
Port Forwarding - Troubleshooting Checklist 12/15/2021
How to Locate Your Local IP Address 08/10/2015
Troubleshooting Ethernet Modems 06/07/2017
Sierra Wireless ALMS - How to Use Operations 12/03/2015
Sierra Wireless ALMS - Changing a Device Config. 12/03/2015
Sierra Wireless ALMS - Configuring Your Device 12/03/2015
Sierra Wireless ALMS - Monitoring Your Device 12/03/2015
Semtech/ Sierra Wireless ALMS - Register Device 11/10/2015
Chain 2 Routers Tip Sheet 09/29/2015
How to Find Your Device(s)' Local IP address 06/02/2015
Sierra Wireless Software Firmware Update 04/23/2026
Testing Ports with Telnet Tip Sheet 02/24/2015
Using a Router to Block Access to your Home Modem 02/24/2015
A Custom Appearance For Your SSID
Windows/Mac Static IP Address Tip Sheet 11/24/2014

If you already purchased this item from 3Gstore, Log In to the support portal to access these downloads.

Recommended accessories for your Semtech XR60, Global modem with Dual Ethernet

$234
$196.26

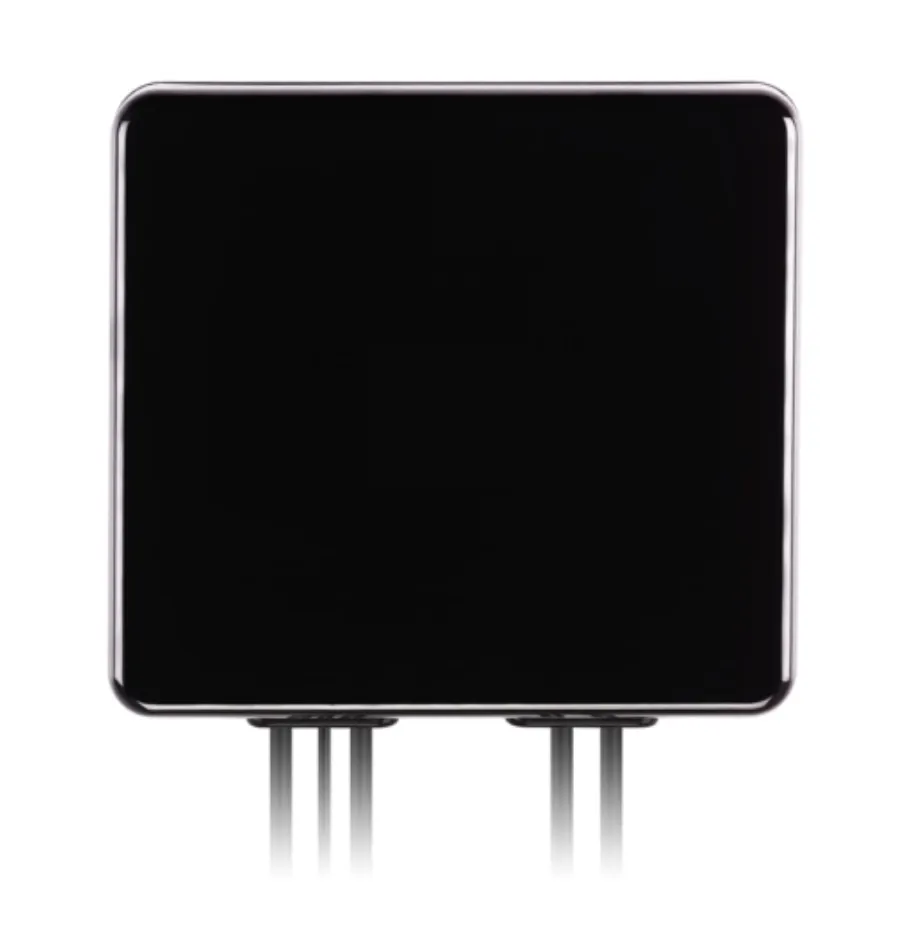

5-IN-1 ADHESIVE MOUNT ANTENNA
