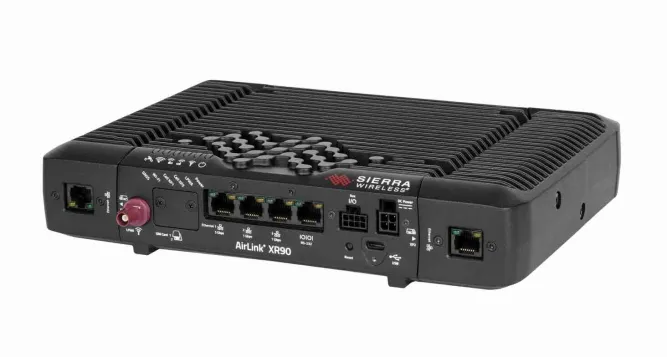

XR90 Dual 5G Gen2 (Global) - 1105224

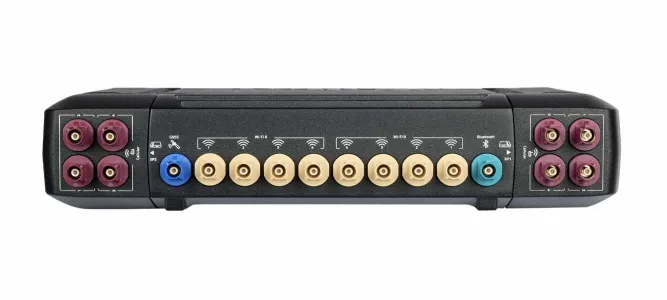

  • XR90 Dual 5G Gen2 (Global) - Back view

XR90, Dual 5G Gen2 Router with Wi-Fi (Global), includes 1-year AirLink Premium

18 Support Docs
Call for Availability
Item Number: 20616
Model: 1105224
Quantity:
Have a large deployment?
Request a Quote

Price:

$2,899.00

This router does not include antennas. Cellular antennas are required to use the embedded modem, and if you require Wi-Fi or GPS support, antenna connections will be needed for those also. Select from a compatible antenna solution.
Select Antennas (required) - details
This router comes with a DC Power Cable. An AC adaptor and other connection cables can be added if needed
Add Power or Connection Cables (Optional) - details
Semtech Offers an optional DIN rail mounting kit for this router
Optional Mounting Hardware: - details
AirLink Premium combines out-of-band management with a best-in-class remote network management portal. This subscription service ensures your mission critical infrastructure operates at peak efficiency and is always accessible.
Extend AirLink Premium (NEW device only) - details
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

Designed for mission-critical connectivity, the AirLink® XR90 delivers unmatched performance for public safety, transit, and mobile fleets. Powered by dual 5G cellular radios and dual independent 4×4 MU-MIMO Wi-Fi 6, it provides resilient, high-speed connectivity virtually anytime, anywhere, while reducing maintenance costs with ALMS Out-of-Band Management.

Key Features

  • Dual 5G & Wi-Fi 6: Reliable, multi-network access with the latest wireless standards. This device uses a next generation 5G module (EM9293).
  • End-to-End Security: Full device-to-cloud protection with AirLink OS and secure boot
  • Lower TCO: Reduce maintenance costs with ALMS Out-of-Band Management
  • Modular Design: Cartridge-based hardware for long-term expandability and upgrades
  • Built for the Field: Rugged IP64-rated design ready for harsh transit environments

Specifications

Cellular

  • Technology: 5G SA & NSA
  • Carrier Certifications: AT&T, T-Mobile, Verizon, Rogers*, Telus*, Bell*, CBRS, C-Band
  • Public Safety: FirstNet® Trusted**, Verizon Frontline (pending), T-Priority
  • Peak Downlink (Theoretical): 4.5 Gbps
  • Peak Uplink (Theoretical): 900 Mbps
  • MIMO: 4×4
  • RF Connectors: FAKRA
  • SIM: Dual SIM (Mini-2FF)

Wi-Fi

  • Wi-Fi Standard: Wi-Fi 6 802.11ax
  • Access Point: Dual
  • Client (Depot/WAN): Yes
  • Client & AP: Yes
  • Peak Throughput (Theoretical): 2400 Mbps
  • MIMO: Dual 4×4
  • Security: WPA2/3 Enterprise
  • Clients: Up to 256
  • SSID: 4 per radio
  • Output Power: 23.3 dBm per chain
  • Frequency: 2.4/5 GHz

Environmental

  • Operating Temperature: -30°C to +70°C / -22°F to +158°F
  • Storage Temperature: -40°C to +85°C / -40°F to +185°F
  • Humidity: 95% RH @ 60°C
  • Military Specification: MIL-STD-810G (Shock, Vibration, Thermal Shock, Humidity)
  • IP Rating: IP64

Power

  • Input Voltage: 7 to 36 VDC
  • Power Consumption:
    • Peak: 68W (5.7A @12V)
    • Standby 55mW: (4.5mA@12V)
  • Power Modes
    • Built-in protection against voltage transients including 5 VDC engine cranking and +200 VDC load dump
    • Ignition Sense with time delay shutdown

Network and Routing

  • Throughput: 1150 Mbps Firewall TCP throughput
  • Features
    • Cognitive Wireless
    • IPv4 and IPv6 Routing
    • Network Address Translation (NAT)
    • Port Forwarding
    • DHCP Server
    • IP Passthrough
    • LAN Segmentation
    • IPv4 Passthrough and IPv6 Prefix Extension
    • WAN/LAN Connection Policy Management
    • Policy-Based Routing
    • Configurable MTU size
    • Static Routing
    • WAN Ethernet
  • QoS: Application/Traffic Priority Queuing
  • WAN Monitors: Connection Failure Recovery

Dimensions

  • Size: 268mm x 220mm x 53mm / 10.5 x 8.7 x 2.1 in
  • Weight: 3.22 Kg / 7.09 lb

What's in the Box?

  • XR90
  • DC Power cable
  • LPWA Antenna
  • Quick Start Guide
  • AirLink Premium Leaflet

*Still in progress

**Requires device management via AirLink Management Service (ALMS)

XR90_Gen2_DataSheet(20616).pdf

Latest Blog Posts About This Product


Latest YouTube Videos About This Product




Specifications:

No. of Cellular Connectors 8
No. of WiFi Connectors 8
No. of GPS Connectors 1
Cellular Connector FAKRA CODE D Violet Male
WiFi Connector FAKRA CODE I Beige Male
GPS Connector FAKRA CODE C Blue Male
No. of LAN Ports 4
No. of WAN Ports 1
No. of Fiber (SFP) Ports 0
No. of Serial Ports 1
No. of Embedded Modems 2
Ports Configurable as LAN/WAN Yes
USB Port LAN
WAN Throughput Speed 5 Gbps
SIM Card Size 2FF
eSIM Support No
Length (in) 8.7
Width (in) 10.5
Height (in) 8.7
Weight (lb) 2.1
Minimum Temperature (F) -22
Maximum Temperature (F) 158
Material Sealed Aluminum Housing (1P64 rated)
Antennas Included No
Modem Expansion Slot Yes
Modem Replaceable No
FIPS Certified Yes
WiFi Support WiFi 6
Cloud Management Included Yes
Power Input 7 to 36 VDC
Bluetooth Yes
Bonding Support No
IP Passthrough Yes
