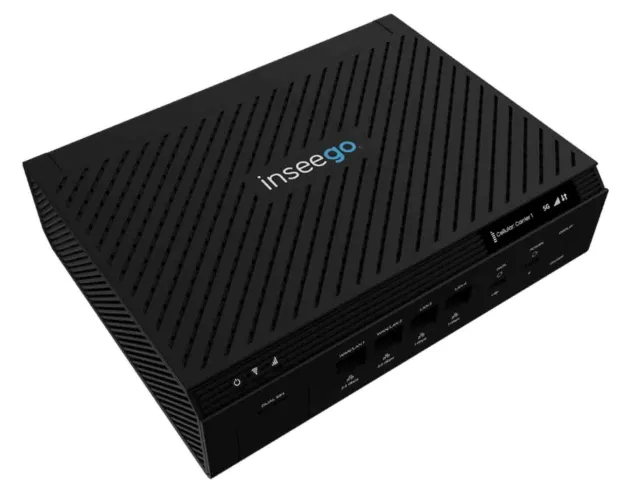

FX4200 5G Wi-Fi 7 indoor router - 649496 02754 4

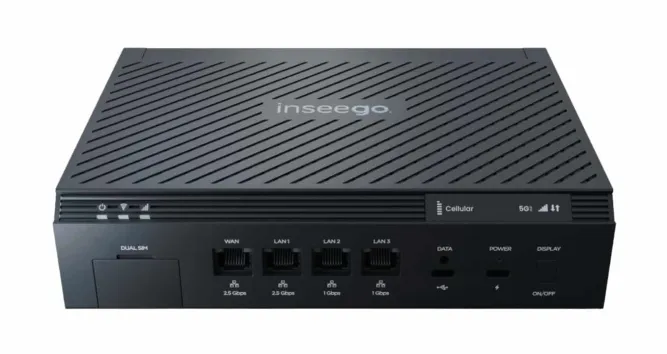

  • FX4200 5G Wi-Fi 7 indoor router - Front side with ports

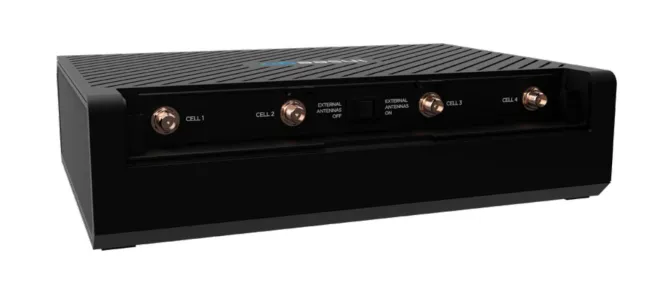

  • FX4200 5G Wi-Fi 7 indoor router - Back side with antenna connections

FX4200 5G Wi-Fi 7 indoor router with dual SIM, sub-6 NSA/SA, LTE fallback (Supports X700 mesh)

13 Support Docs
Call for Availability
Item Number: 21305
Model: 649496 02754 4
Have a large deployment?
Request a Quote

Price:

$899.00

Bundle & Save Compare All...

Contact Me When the Inseego FX4200 Router is Available

The Inseego FX4200 5G router is expected between late November and early December. Sign up here to be notified when it's available, or contact us today to discuss alternative solutions!
Email Address: *
Name: *
Phone:
Quantity needed?
Comments:



This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

The FX4200 uses 5G NR, Wi-Fi 7, and a quad-core processor with integrated antennas and a powerful internal, rechargeable battery with automatic failover for reliable broadband and incredibly simple setup. Supports download speeds up to 5+ Gbps and upload speeds up to 2+ Gbps.

KEY FEATURES

  • Instant connectivity: The FX4200 supports quick setup with integrated antennas, smart diagnostics, automatic carrier selection, zero-touch provisioning, and cloud integration via Inseego Connect.
  • Dependable broadband for business: The FX4200 ensures 24/7 connectivity with multiple WAN links, automatic failover to the best available 5G connection, and robust security features. A rechargeable Li-ion backup battery provides reliable failover power.
  • Managed from the cloud: The FX4200 with Inseego Connect enables monitoring and management of network health from anywhere. It allows oversight of thousands of devices and mesh networks, optimizes performance, and ensures uptime through a centralized cloud platform.
  • Secure and private remote access: The FX4200 provides secure edge networking with split or full-tunnel VPNs, ensuring encrypted, high-uptime connections between headquarters and remote locations. It supports up to 256 devices with secure, private Wi-Fi 7 across both primary and guest networks.
  • Expandable Wi-Fi Coverage: Pair with up to 3x X700 Wi-Fi Mesh Nodes for extended wireless coverage.

SPECIFICATIONS

Network connectivity1
  • 5G NR (SA/NSA) with 3x Downlink CA and 2x Uplink CA
  • 4x4 MIMO 5G sub-6 GHz
  • 4G LTE Cat 20 fallback
  • 4x4 MIMO 4G LTE

Bands supported
  • 5G sub-6: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77 (ext 2A), n78 (ext 2A)
  • 4G LTE Cat 20: 2, 4, 5, 7, 12, 13, 14, 17, 25, 26, 29, 30, 38, 41, 42, 43, 46, 48, 66, 70, 71
Wi-Fi
  • Wi-Fi 7 with 2x2 MU-MIMO
  • 802.11be with EasyConnect standards
  • Simultaneous dual-band Wi-Fi
  • Full power AP Wi-Fi (30 dBm) with mesh
  • Connects up to 256 Wi-Fi enabled devices
  • Primary and guest networks
Chipset
  • Qualcomm® Dragonwing FWA Gen 3 Platform
  • Qualcomm SDX72 5G Modem-RF System
Module
  • Inseego RM4210
Display
  • 3x LED for device, Wi-Fi, and cell status
  • Single line display for Wi-Fi & cell details, status, mesh pairing, and FOTA updates
Ports
  • 2x 2.5GbE RJ45
  • 2x 1GbE RJ45
  • 1x USB 3.1 Type-C data
  • 1x USB PD Type-C power
  • 4x external full spectrum SMA cellular antenna
Location
  • Standalone GNSS
  • Internal antenna
Battery
  • Rechargeable 5500 mAh Li-ion back-up battery
SIM
  • 2x SIM 4FF Nano
Dimensions & Weight
  • 8.3” x 5.5” x 2.1” (210 mm x 140 mm x 54 mm)
  • 48.8 oz (1.38 kg)
Operating Temperature
  • 32°F to 104°F (0°C to +40°C)
Operating Temperature with Limitations
  • 14°F to 122°F (-10°C to +50°C)
Storage Temperature
  • -22°F to 158°F (-30°C to +70°C)





NOTES

1. Data plan required. Coverage subject to network availability.

Software Solutions

  • Inseego Connect remote management
  • Inseego Connect API support
  • Firmware management and scheduling
  • Seamless WAN failover and failback
  • Automatic carrier selection
  • WAN prioritization
  • Remote troubleshooting and diagnostics
  • Firewall
  • IP Passthrough
  • Zero-touch deployment
  • Network slicing
  • On-device speed test
  • Notifications and alerts
  • GPS with map location
  • IPsec VPN and OpenVPN
  • VPN passthrough
  • IPv4 and IPv6 with XLAT support
  • WPA2/3 personal and enterprise
  • Secure local user interface
  • Data usage monitoring
  • Wired and wireless Wi-Fi mesh support
  • FIPS 140-3 OpenSSL
  • Inseego Mobile™ app

    Accessories (sold separately)

    • Inseego Wavemaker mesh Wi-Fi X700
    • External antennas
    Inseego_Wavemaker_FX4200_Datasheet_rev1(21305).pdf

    Latest Blog Posts About This Product


    Latest YouTube Videos About This Product


    Popular Comparisons

    Specifications:

    No. of Cellular Connectors 4
    No. of WiFi Connectors 0
    No. of GPS Connectors 0
    Cellular Connector SMA Female
    No. of LAN Ports 3
    No. of WAN Ports 1
    No. of Fiber (SFP) Ports 0
    No. of Serial Ports 0
    No. of Embedded Modems 1
    Ports Configurable as LAN/WAN Yes
    USB Port LAN
    WAN Throughput Speed 2.5 Gbps
    SIM Card Size 4FF
    eSIM Support No
    Length (in) 8.3
    Width (in) 5.5
    Height (in) 2.1
    Weight (lb) 3
    Minimum Temperature (F) 32
    Maximum Temperature (F) 104
    Antennas Included No
    Modem Expansion Slot No
    Modem Replaceable No
    FIPS Certified Yes
    WiFi Support WiFi 7
    Cloud Management Included Yes
    Bluetooth No
    Bonding Support No
    IP Passthrough Yes
