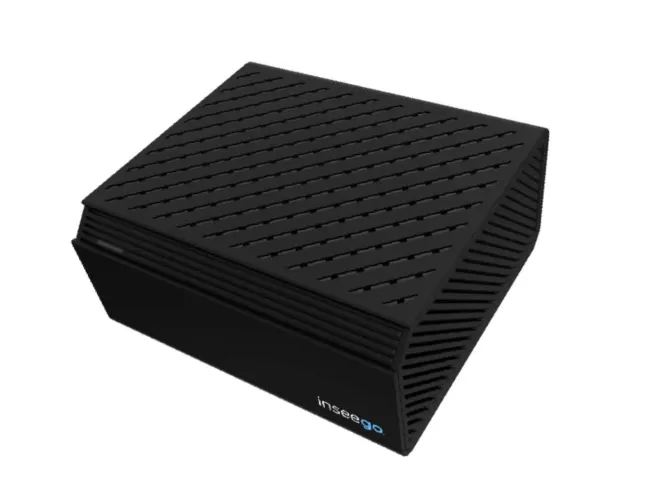

X700 Wi-Fi 7 indoor mesh node - 649496 02791 9

X700, 2x2 dual band Wi-Fi 7 indoor mesh node access point

1 Support Docs

Call for Availability

Item Number: 21306
Model: 649496 02791 9

Have a large deployment?
Request a Quote

Price:

$199.00

General

Customer Reviews

Q & A

Support

Photos & Videos

Contact Me When the Inseego X700 Wi-Fi Mesh Node is Available

The Inseego X700 is expected between late November and early December. Sign up here to be notified when it's available or contact us today to discuss alternative solutions!
Email Address:	*
Name:	*
Phone:
Quantity needed?
Comments:

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

X700, 2x2 dual band Wi-Fi 7 indoor mesh node access point Inseego Wavemaker™ mesh Wi-Fi X700 Wall-to-wall wireless coverage KEY FEATURES Greater Network Coverage : Mesh Wi-Fi X700 provides secure backups to data flow and creates a stronger, more dependable network that can cover larger areas. Simple Installation : Pairs easily with the FX4200 cellular router via Wi-Fi or Ethernet (Note: The FX4200 can support up to 3x mesh nodes). The indicator LED helps find the best signal spots for top performance. Scalable And Flexible : Supports multiple X700 mesh nodes using wireless or wired mesh backhaul. In addition, connects to mesh clients via Wi-Fi or Ethernet. Mesh Management : Configures entire mesh network through the FX4200 mesh router locally or with Inseego Connect. SPECIFICATIONS Wi-Fi 2 x 2 dual-band Wi-Fi 6 2 x 2 2GHz + 2 x 2 5GHz Full power AP Wi-Fi (~30dBm) 160 MHz bandwidth for 5GHz radio (80 MHz for router link and 80 MHz for client link) Power 12V@2.5A (+/- 5%) Processor Multi-core processor with 1GB RAM + 1GB Flash or more Ports 2x LAN/WAN (1 GbE) 1x USB 3 Type-C (data and power) Indicator LED Device/signal status Dimensions & Weight 4.6” x 4.1” x 2.0” (117 x 104 x 52 mm) 16.4oz (465g) Operating Temperature 32°F to 104°F (0°C to +40°C) Operating Temperature with Limitations 14°F to 122°F (-10°C to +50°C) Storage Temperature -22°F to 158°F (-30°C to +70°C) 649496 02791 9 649496 02791 9

Inseego

Router > Access Point

$ $199.00 https://5gstore.com/product/21306_x700_2x2_dual_band_wi-fi7_indoor_mesh_node

Inseego Wavemaker™ mesh Wi-Fi X700 Wall-to-wall wireless coverage

KEY FEATURES

Greater Network Coverage: Mesh Wi-Fi X700 provides secure backups to data flow and creates a stronger, more dependable network that can cover larger areas.
Simple Installation: Pairs easily with the FX4200 cellular router via Wi-Fi or Ethernet (Note: The FX4200 can support up to 3x mesh nodes). The indicator LED helps find the best signal spots for top performance.
Scalable And Flexible: Supports multiple X700 mesh nodes using wireless or wired mesh backhaul. In addition, connects to mesh clients via Wi-Fi or Ethernet.
Mesh Management: Configures entire mesh network through the FX4200 mesh router locally or with Inseego Connect.

SPECIFICATIONS

Wi-Fi	2 x 2 dual-band Wi-Fi 6 2 x 2 2GHz + 2 x 2 5GHz Full power AP Wi-Fi (~30dBm) 160 MHz bandwidth for 5GHz radio (80 MHz for router link and 80 MHz for client link)
Power	12V@2.5A (+/- 5%)
Processor	Multi-core processor with 1GB RAM + 1GB Flash or more

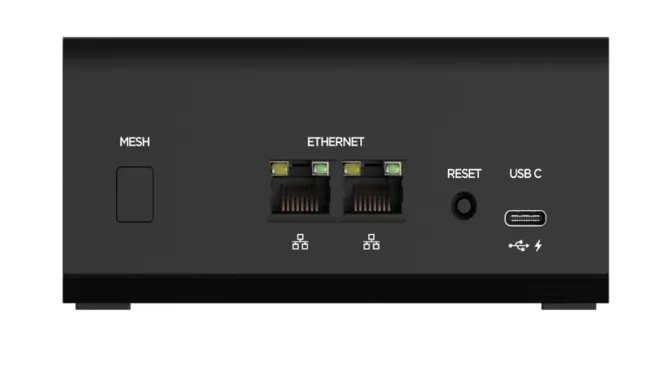

Ports	2x LAN/WAN (1 GbE) 1x USB 3 Type-C (data and power)
Indicator LED	Device/signal status
Dimensions & Weight	4.6” x 4.1” x 2.0” (117 x 104 x 52 mm) 16.4oz (465g)
Operating Temperature	32°F to 104°F (0°C to +40°C)
Operating Temperature with Limitations	14°F to 122°F (-10°C to +50°C)
Storage Temperature	-22°F to 158°F (-30°C to +70°C)

Inseego_x700_datasheet(21306).pdf
