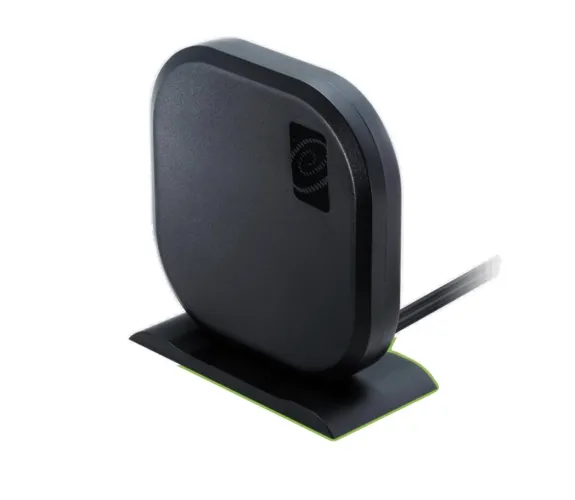

5G/4G 2x2 MIMO Magnetic Antenna with 15ft cable

General

Details

Customer Reviews

Q & A

Support

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

5G/4G 2x2 MIMO Magnetic Antenna with 15ft TGC-200 SMA(M)ST Gemini LMA101 2x2 5G/4G 600-6000MHz MIMO Magnetic Mount Antenna Taoglas Gemini LMA101 is a 2x2 5G/4G MIMO Antenna for use with all 5G/4G cellular routers and access points worldwide requiring MIMO connectivity. It includes two high efficiency 5G/4G antennas that operate at all common and 5G/4G bands worldwide from 600MHz to 6000MHz. It has been designed to include 3G and 2G bands, meaning the antenna can also be used for fallback in circumstances where 5G/4G is not available. High isolation and low ECC between the two embedded MIMO antennas prevent self-interference and the low loss cables are used to keep efficiency high over longer cable lengths. This unique antenna offers three mounting options for easy installation. The base features eight super-magnets for easy and secure installation on metal surfaces. The rear of the enclosure features a bracket to enable wall installation, keeping your workstation free from clutter or the antenna can also be placed directly on a flat surface using the stand. The LMA101 can be used both indoors and outdoors as the robust external enclosure is fully IP67 rated. Typical Applications include : HD Real-time Streaming Video over LTE Intelligent Transport Systems Digital Signage and HD Broadcast Systems Wireless 5G/4G MIMO M2M devices with legacy 3G/2G functionality. LMA101.A.BI.019 LMA101.A.BI.019

Taoglas

Antenna

$ $145.99 https://5gstore.com/product/21598_lte_mimo_magnetic_antenna_5g4g_mimo12_4572mm_15ft_tgc-200_smamst

Gemini LMA101 2x2 5G/4G 600-6000MHz MIMO Magnetic Mount Antenna

Taoglas Gemini LMA101 is a 2x2 5G/4G MIMO Antenna for use with all 5G/4G cellular routers and access points worldwide requiring MIMO connectivity. It includes two high efficiency 5G/4G antennas that operate at all common and 5G/4G bands worldwide from 600MHz to 6000MHz. It has been designed to include 3G and 2G bands, meaning the antenna can also be used for fallback in circumstances where 5G/4G is not available. High isolation and low ECC between the two embedded MIMO antennas prevent self-interference and the low loss cables are used to keep efficiency high over longer cable lengths.

This unique antenna offers three mounting options for easy installation. The base features eight super-magnets for easy and secure installation on metal surfaces. The rear of the enclosure features a bracket to enable wall installation, keeping your workstation free from clutter or the antenna can also be placed directly on a flat surface using the stand. The LMA101 can be used both indoors and outdoors as the robust
external enclosure is fully IP67 rated.

Typical Applications include:

HD Real-time Streaming Video over LTE
Intelligent Transport Systems
Digital Signage and HD Broadcast Systems
Wireless 5G/4G MIMO M2M devices with legacy 3G/2G functionality.

Specifications:

No. of Cellular Connectors	2
No. of WiFi Connectors	0
No. of GPS Connectors	0
Cellular Connector	SMA Male
Antenna Type	Outdoor
Antenna Style	Omni
Antenna Mount	Magnetic
Antenna Color	Black
Length (in)	6.5
Width (in)	6.5
Height (in)	1.4
Weight (lb)	1.3
Maximum Gain	3
Impedance Ω (Input/Output)	50
Cable Length (in)	180
Cable Type	TGC-200
Minimum Temperature (F)	-40
Maximum Temperature (F)	185
Material	PCL1250Y
VSWR (Voltage Standing Wave Radio)	2:1
