This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

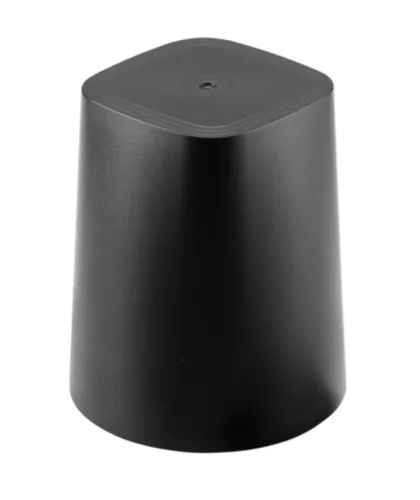

The Taoglas Olympian III is a high performance 3-in-1 combination GNSS, 4G/5G MIMO permanent mount antenna in a compact housing at 70mm tall and 59mm in diameter. It is ideal for external use on vehicles and outdoor assets requiring GNSS, and Cellular MIMO connectivity.
The GPS/GLONASS/Galileo antenna has stable gain and radiation patterns on all bands. The 4G/5G antenna, covers all worldwide LTE bands, includes many sub 6GHz, 5G FR1 bands and also includes fallback to 3G/2G bands where required, especially improving the design to eliminate the cable radiation to make the antenna will not be impacted after installed on a metal box. This makes MA181 antenna can be mounted on metal and plastic structures, and both works well. Taoglas recommend a minimum of 1m cable lengths for stable antenna performance.
The IP67 rated enclosure is made from a durable, ASA material that makes it resistant to vandalism. An integrated rubber O-ring under the enclosure prevents water ingress under the antenna. It is mounted from the inside of the user device enclosure and the small thread allows for installation in situations where space is minimal.
Typical Applications Include:
– Smart Metering and Remote Monitoring
– Digital Signage
– Transportation and Telematics
