75ohm Wide Band Yagi, 2 Reviews

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

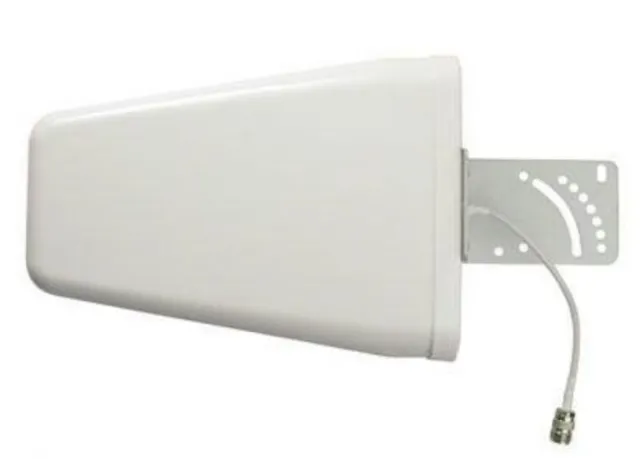

Wilson 75ohm Wide Band Yagi Directional Antenna - 314475 This antenna is designed to be used as the exterior antenna in a 75ohm repeater system. It is NOT compatible with 50ohm amplifiers and is not designed to be connected directly to a modem - for 50ohm systems, use the 314411 Yagi . A Wilson Yagi antenna is a good choice for users building a 75ohm amplifier system from scratch or who want to replace an omnidirectional antenna. By installing this exterior 75ohm antenna and aiming it at the closest cell tower, you can pull in signal from further away and improve your amplifier's performance. All major worldwide cellular frequencies are picked up by this Yagi directional antenna. It comes with pole-mounting hardware and can also be mounted to a wall or rooftop. The antenna is built for tough environmental conditions with a UV-stabilized housing and DC grounding. Features: Covers Cellular/PCS (US and worldwide) and WiFi frequencies 7-10dBi gain across all frequencies Pole or wall mountable Light gray attractive UV protected housing Vertical or horizontal polarization DC grounded for lightning protection Pole-mounting hardware included, accommodates pipe diameters from 1.25" - 2" 314475 314475

Wilson Electronics

Antenna > Repeater Antenna

811815022558

$ $89.99 811815022558 https://5gstore.com/product/2678_wilson_75ohm_wide_band_yagi_directional_antenna_314475

5.00 2

This antenna is designed to be used as the exterior antenna in a 75ohm repeater system. It is NOT compatible with 50ohm amplifiers and is not designed to be connected directly to a modem - for 50ohm systems, use the 314411 Yagi.

A Wilson Yagi antenna is a good choice for users building a 75ohm amplifier system from scratch or who want to replace an omnidirectional antenna. By installing this exterior 75ohm antenna and aiming it at the closest cell tower, you can pull in signal from further away and improve your amplifier's performance.

All major worldwide cellular frequencies are picked up by this Yagi directional antenna. It comes with pole-mounting hardware and can also be mounted to a wall or rooftop. The antenna is built for tough environmental conditions with a UV-stabilized housing and DC grounding.

Features:

Covers Cellular/PCS (US and worldwide) and WiFi frequencies
7-10dBi gain across all frequencies
Pole or wall mountable
Light gray attractive UV protected housing
Vertical or horizontal polarization
DC grounded for lightning protection
Pole-mounting hardware included, accommodates pipe diameters from 1.25" - 2"

Specifications:

Country of Origin	United States
No. of Cellular Connectors	1
No. of WiFi Connectors	0
No. of GPS Connectors	0
Cellular Connector	N Female
Antenna Type	Outdoor
Antenna Style	Yagi
Antenna Mount	Pole
Antenna Color	White
Length (in)	11.75
Width (in)	8.5
Height (in)	2.5
Weight (lb)	1.8
Maximum Gain	8.83
Impedance Ω (Input/Output)	75
Minimum Temperature (F)	-40
Maximum Temperature (F)	131
Material	ABS Anti UV
VSWR (Voltage Standing Wave Radio)	1:8:1

Filter Reviews

Last 2 Weeks (0)

				100% (2)
				0% (0)
				0% (0)
				0% (0)
				0% (0)

		Show Brief Review
		Show 5Gstore Comments

Last 6 Months (0)

All Reviews (2)

Only customers who bought this item from 5Gstore can write a review - these are all verified 5Gstore purchases

Date Added: 03/17/2012 by Michael K. (Round Hill, VA)

Excellent customer service and tech support

Date Added: 12/21/2011 by Jamie A. (Coleman Falls, VA)

First of all, Wilson is the best out there when it comes to quality and customer service. If you ever have a question, just ring Wilson Electronics and speak directly to an engineer. Also, they will replace a defective unit in a heartbeat -- for free. I've been dealing with Wilson for the past 4 years and am confident they are the best out there.

Second, this antenna is perfect for my needs. I had an omnidirectional before, but its reach is small compared to what this antenna gives. It has doubled my 3g downloads in comparison to my old omnidirectional (even though the RSSI was the same with both - go figure).

If you purchased this item, Login to write a review.

Q & A

Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!

Click here to submit a new question

Sort By:

Can I use the Wilson 75ohm Yagi antenna with RG6 cables?

Yes, we would recommend keeping the RG6 cable run short due to its great amount of signal loss.

How do I know where to aim a directional antenna?

You want to aim the antenna in the direction of your cell tower. Once you have it aimed in the correct direction, you want to gradually zone in on the best possible signal from that direction. Slowly wave the antenna by about 5 degree increments until you find a 'sweet spot.' If you're unsure of how to locate the tower in your location, you can reference our video here: https://youtu.be/2DylKQlYbv8
