Semtech (formerly Sierra Wireless) AirLink MG90 Vehicle Router w/ Cat 6 LTE Advanced - 1102695

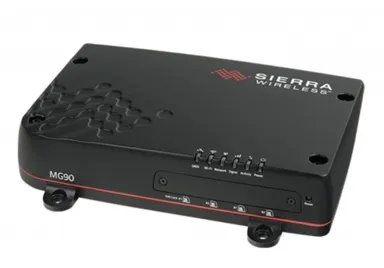

  • Semtech (formerly Sierra Wireless) AirLink MG90 Vehicle Router w/ Cat 6 LTE Advanced - Front

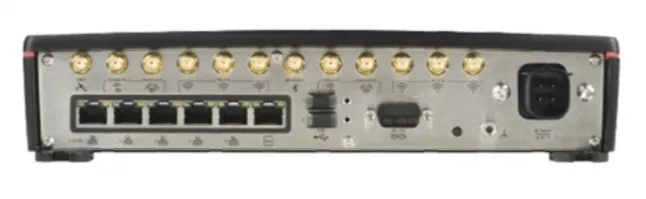

  • Semtech (formerly Sierra Wireless) AirLink MG90 Vehicle Router w/ Cat 6 LTE Advanced - Back

Semtech (formerly Sierra Wireless) AirLink MG90 High Performance Vehicle Router with Cat 6 LTE Advanced Modem - DISCONTINUED

28 Support Docs
Call for Availability
Item Number: 7653
Model: 1102695
Quantity:
Have a large deployment?
Request a Quote

Price:

$1,999.00


DISCONTINUED ITEM - SCROLL DOWN FOR REPLACEMENT ITEMS
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

All MG90 deployments require subscriptions to Semtech (formerly Sierra Wireless) AirLink Support and AMM as well as the purchase of a Semtech (formerly Sierra Wireless) Professional Service. Cellular and WiFi antennas are also required and sold separately. Contact us to discuss your needs and to receive a customized quote.

The AirLink® MG90 is a high performance LTE-Advanced vehicle networking platform that offers extensible multi-network connectivity, to provide secure uninterrupted communications for the world’s most demanding mission critical applications in public safety, transit and field services fleets.

With extensible multi-network connectivity, the MG90 offers an LTE-Advanced radio, dual concurrent Gigabit Wi-Fi and Gigabit Ethernet, with extensions to Land Mobile Radio (LMR) and satellite systems.

Fast Facts About This Product:

  • This router is best for: First responders, field personnel, and other vehicle users.
  • Internet Connections Supported: 1 Embedded LTE IMPORTANT: you will need a 2mm Hex L-wrench (not included) to access the SIM slot on the router, WiFi as WAN* (more info)
  • Networks Supported for Embedded Modem: LTE: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 700(B12), 700(B13), 800(B20), 1900(B25), 850(B26), 700(B29), TDD B41; WCDMA: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 900(B8). - NOTE: Verizon certification coming late 2018
  • WiFi Standard: 3x3 MIMO 802.11 b/g/n/ac
  • WiFi Range: 150-200'
  • Ports: 5 x 10/100/1000 LAN, 1 RS-232 serial
  • Power supply: Hardwire DC power supply
  • Size: 10.71" x 8.66" in x 2.36"
  • pdf download the MG90 datasheet

*Compatibility with all WiFi networks cannot be guaranteed. Networks requiring authentication on a "splash page" (e.g. Starbucks WiFi) in particular can be hit or miss.

Latest Blog Posts About This Product


Latest YouTube Videos About This Product




Specifications:

Country of Origin Viet Nam
No. of Cellular Connectors 4
No. of WiFi Connectors 6
No. of GPS Connectors 1
Cellular Connector SMA Female
WiFi Connector RP-SMA Female
GPS Connector SMA Female
No. of LAN Ports 5
No. of WAN Ports 0
No. of Fiber (SFP) Ports 0
No. of Serial Ports 1
No. of Embedded Modems 1
Ports Configurable as LAN/WAN Yes
USB Port LAN
WAN Throughput Speed 1 Gbps
SIM Card Size 2FF
eSIM Support No
Length (in) 8.6
Width (in) 10.7
Height (in) 2.4
Weight (lb) 5.3
Minimum Temperature (F) -22
Maximum Temperature (F) 158
Material Sealed Aluminum Housing (IP64 Rated)
Antennas Included No
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified Yes
WiFi Support WiFi 5
Cloud Management Included Yes
Power Input 7 to 36 VDC
Bluetooth Yes
Bonding Support No
IP Passthrough No

There are currently no product reviews.

If you purchased this item, Login to write a review.
Q & A
Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!


Click here to submit a new question

AirLink MG90 Hardware User Guide Download installation guide/manual
AirLink MG90 Software Configuration Guide Download installation guide/manual
