Wilson Cell LinQ Pro Meter (Hard Case)

In Stock

Item Number: 10174
Model: 910055
Quantity:

Price:

$599.99

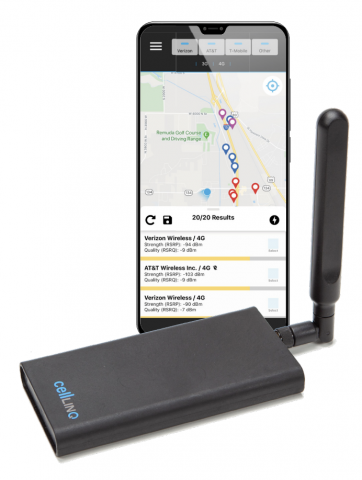

The Cell LinQ Signal Meter kit includes everything for professional installers to perform a comprehensive cellular site survey. The Pro Meter kit comes with one App license and instructions on how to download and activate the Cell LinQ App for an Apple or Android device.

State-of-the-art engineering enables access to accurate information required to effectively design, install and validate performance for various types of cellular amplifier systems, all at the touch of a button.

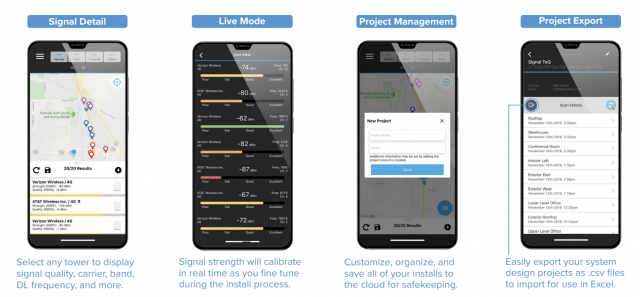

The LinQ meter app works in tandem with the meter and allows you to view, tune and store 3G and 4G tower data and carriers. A survey is performed by linking the Cell LinQ meter to the Cell LinQ app via Bluetooth on either an iOS or Android-supported device.

  • Offers multi-band scanning of LTE, cellular, AWS, and PCS frequency bands
  • Identifies individual carriers and towers using 3G and 4G/LTE technology
  • Provides details on location, tower ID, distance to tower, and more
  • Pinpoints active carriers and geo maps any active cells within range
  • Captures all scan results; including time stamps for A/B comparisons
  • Links via Bluetooth to iOS or Android devices with the Cell LinQ app
  • Scans all carriers regardless of the carrier phone running the app


Specifications:

  • Cable - SMA Male to N Male 3' Jumper Cable
    • Antenna connector SMA
    • Antenna impedance 50 ohms
  • Power - 120V, 3' USB Cord
  • Dimensions - 12.75 x 4.25 x 9.25 in
  • Weight 6.2 oz
  • Battery Cell Type: Polymer lithium-ion
    • Battery Weight: Approx 46g
    • Number of Batteries: 1
    • Number of Lithium-ion Cells: single cell
    • Lithium Battery Energy Content: 2500mAh
  • Is this a rechargeable Battery: Yes
    • Charging Input 1.5A @ 5V
  • Maximum Input Power 24dBm
    • Sensitivity (LTE B2) -103.0dBm
    • Sensitivity (LTE B4) -102.5dBm
    • Sensitivity (LTE B5) -103.0dBm
    • Sensitivity (LTE B12) -103.0dBm
    • Sensitivity (LTE B13) -103.0dBm

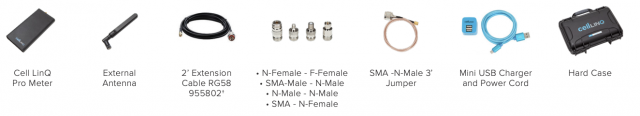

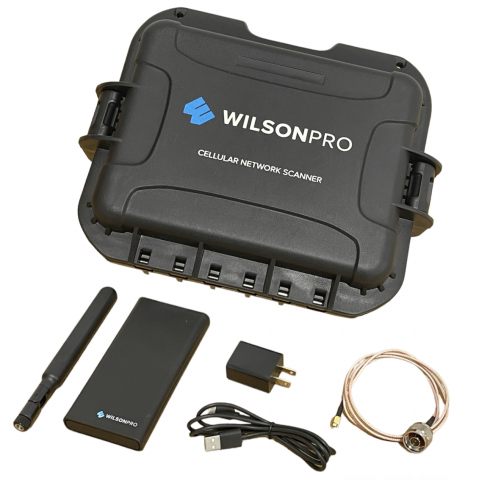

  • What's Included:
    • Cell LinQ Pro Meter
    • External Antenna
    • 2’ Extension Cable RG58 955802†
    • N-Female - F-Female
    • SMA-Male - N-Male
    • N-Male - N-Male
    • SMA - N-Female
    • SMA -N-Male 3’ Jumper
    • Mini USB Charger and Power Cord
    • Hard Case


There are currently no product reviews.

If you purchased this item, Login to write a review.
Q & A
Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!


Click here to submit a new question


We recommend downloading the User Guide (pdf) before ordering.
