Wilson Wide Band 600-2700MHz Yagi Antenna - 311233 (Cable Sold Separately)

In Stock

Item Number: 10397
Model: 311233



This antenna does NOT include cabling. You must select a length of cable from the list.

The cables listed here are terminated in SMA/Male for use with most routers/modems. Adapters are available if you need to connect to a different type of connector - contact us if you need assistance.If you already have a compatible cable you plan to use (this antenna has an N/Female connector), you may select the "I already have a cable" option.

Cable length recommendation: Unless you plan to use an amplifier as well, we recommend using LESS THAN 50' OF CABLE to minimize signal loss. Mounting the antenna outside and reasonably high up is recommended, but using long lengths of cable for the express purpose of mounting the antenna higher up typically does not outweigh the additional loss unless the extra length allows you to mount the antenna in a location that can receive signal MUCH better than a shorter cable would.
Select a Cable (required) - details
Related Products

Frequently Purchased With This Item.. »

Wilson Wide Band 600-2700MHz Yagi Antenna
Wilson Wide Band 600-2700MHz Yagi Antenna - 311233 (Cable Sold Separately)
+ Wilson Yagi/Panel Antenna Pole Mounting Assembly
Wilson Yagi/Panel Antenna Pole Mounting Assembly
= $112.98
Add to Cart
Required if you don't have your own pole!

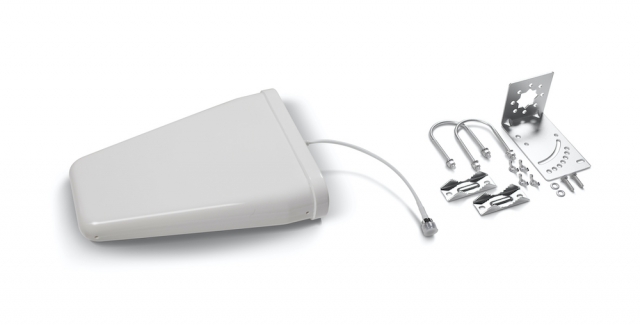

The Wilson 311233 Wide Band Yagi Antenna gives you the cellular signal boost you need when you live just beyond the optimal range of your provider. This directional 617-2700mhz antenna provides a gain of up to 8.3 dBi and can be mounted on any flat surface or on a pole up to two inches in diameter.


  • Compatibility: 617-2700mhz networks, which are used by most providers in the USA, including band 71
  • Length: 11.42"
  • Cable: NO cable is included with this antenna. Various lengths are available; you can select your cable above. Depending on the cable selected and the device you are using, an adapter may be needed.
  • Ground Plane: The Yagi Antenna has a built-in ground plane.
  • Weatherproof? Yes, this antenna is weatherproof and designed for outdoor use.

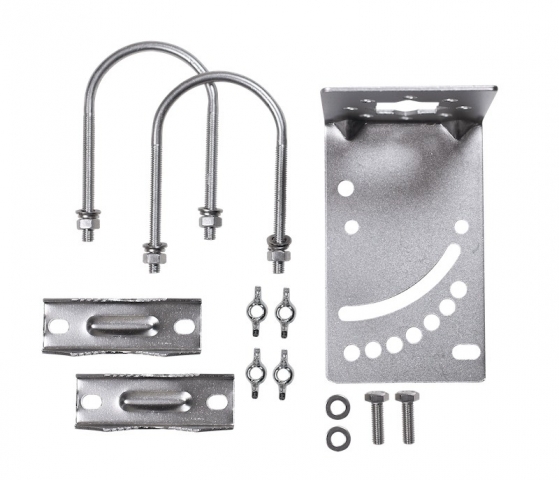

  • Mounting Requirements: Mounting hardware is included to mount to a wall or to a pipe/pole (accommodates diameters from 1.25" - 2"). It must be aimed accurately at the cell tower to be effective. If you do not have a pole to mount to, you'll need the Pole Mounting Assembly Kit (sold separately).
  • Portability: This antenna is made to be installed at a fixed location aimed at the cell tower and is NOT portable.

Do a site survey before buying this antenna! If you're purchasing this to use in just one location, we strongly recommend doing a site survey first to determine whether the antenna will help your signal and performance and to give you an idea of what kind of results you can expect from it. Start here: Will an Antenna/Amplifier Help Me?


  • Works on all worldwide cellular bands for voice and 4G data: LTE/CDMA/GSM/UMTS/AWS
  • Supports 617-960 & 1710-2700 MHz cellular frequencies
  • Band 71 support
  • Pole or wall mountable
  • UV stable white sealed radome
  • Rugged and waterproof for all weather operation
  • DC grounded for lightning protection
  • Pole-mounting hardware included, accommodates pipe diameters from 1.25" - 2"


  • Model: 311233
  • Frequency range:
    • 617-698
    • 698-806
    • 806-960
    • 1710-1880
    • 1850-1990
    • 1910-2170
    • 2300-2700
  • Antenna gain (dBi):
    • 4.8
    • 6.3
    • 8
    • 8.3
    • 7.6
    • 8
    • 7.8
  • Impedance: 50 Ohms
  • Cable: None included - select a cable from the menu above
  • Dimensions: 11.5 x 8.2 x 2.5"
  • Weight: 1.76lbs
  • Connector: N Female
  • Mount: Pole mount
  • Polarization: Vertical
  • Radiator Material: Aluminum
  • Radome Material: ABS
  • Beamwidth: 70-90° horizontal, 85-110° vertical
