This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

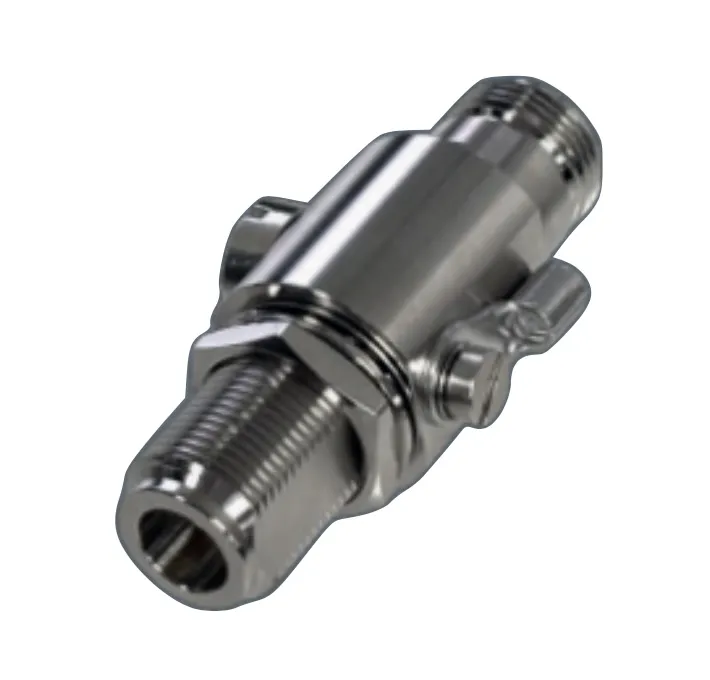

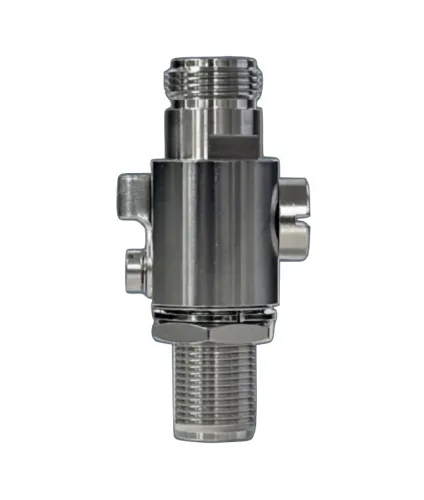

N-Female to N-Female Lightning Protection
Reliable wide-band performance (6 GHz), 50 ohm coax lightning arrestor, bi-directional protection and can be used indoor or outdoor. Replaceable 90v gas discharge tube with multi-strike capability shunts damaging surges, transients, and lightning strikes to ground.
Electrical Specifications
- Impedance: 50Ω
- Max Frequency: DC-5.8 GHz
- Dielectric Withstanding Voltage: 2500V (RMS)
- Contact Resistance: Center conductor ≤ 1mΩ; Outer conductor ≤ 1mΩ
- Nut: Brass/Nickel Surface Plating
- Insulation Resistance: ≥5000MΩ

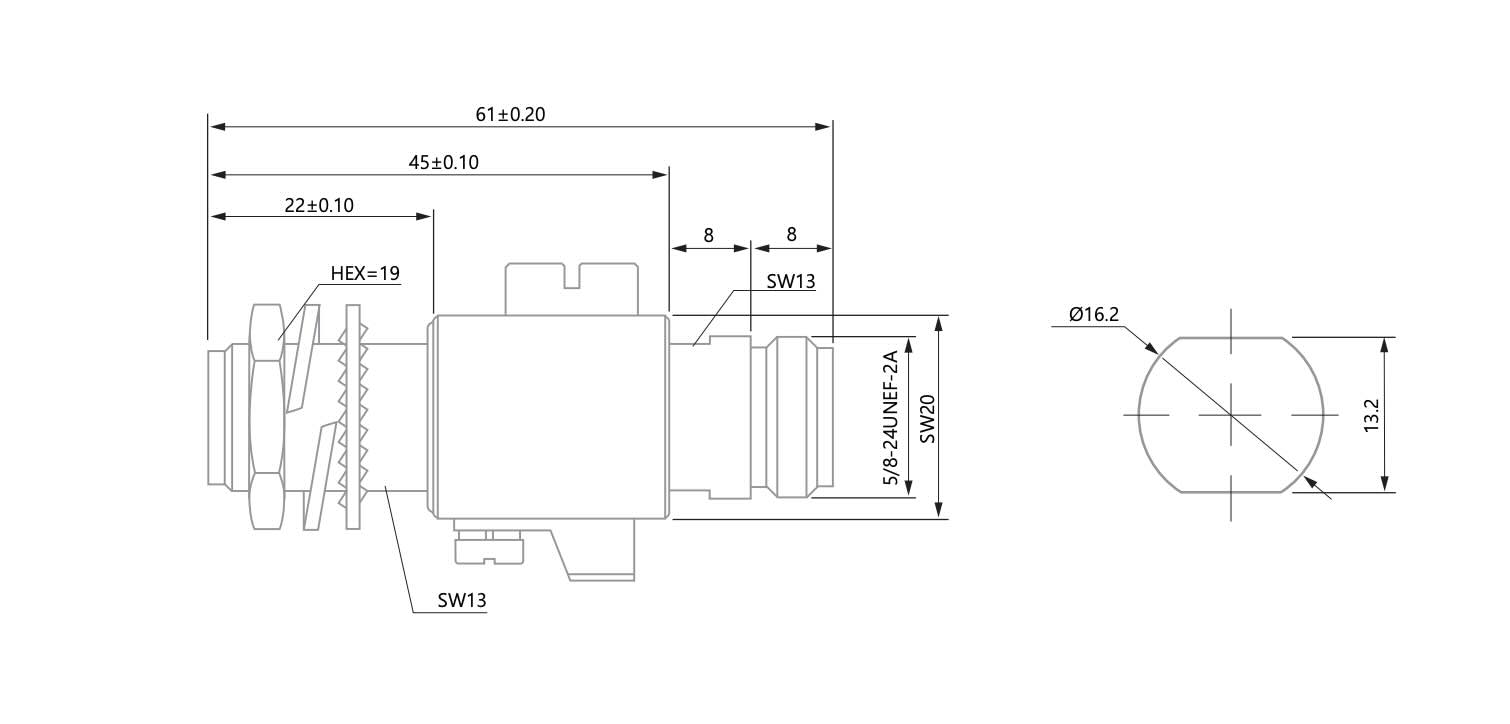

- Mating: 5/8”-24UNEF-2A
- Durability: ≥ 500 cycles
- Temperature Range: - 40°C to +85 °C
Materials & Plating Specifications
- Model: 850050
- Shell/Body: Brass/Nickel Surface Plating
- Contact: Phosphor Bronze/Bronze & Gold Surface Plating
- Insulator: PTFE
- Spring Contact: Phosphor Bronze/Nickel Surface Plating
- Gas Discharge Tube: 90V±20%/230V±20%
