Omni-Directional, Cross-Polarised, 6x6 MIMO 5G Panel Antenna; 617 ," 6000 MHz, 7.8dBi; 6 x Cellular, 3 x Wi-Fi, 1 x GNSS

Advanced 10-in-1 Multi-Functional Panel Antenna - The PANL-631

A state-of-the-art, multi-functional panel antenna designed to revolutionize connectivity. This versatile antenna configuration offers a 10-in-1 solution, including 6 x Cellular, 3 x Tri-Band Wi-Fi, and 1 x GNSS antenna, which provides exceptional performance and versatility for improving cellular and GPS signal reception in vehicles or fixed installations.

FEATURES

• Ultra-Wideband Frequency Coverage: The PANL-631 covers a broad frequency range from 617 to 6000 MHz, accommodating various cellular operators and technologies. It is future-ready, supporting cellular technologies up to 6GHz for 5G applications. The antenna provides an excellent balance between omnidirectionality, pattern diversity, and effective radiation at the desired elevation, crucial for the transportation market.
• Advanced Tri-Band Wi-Fi Capabilities: The three tri-band Wi-Fi antennas support concurrent 2.4GHz, 5GHz, and 6GHz bands, compatible with 802.11n and 802.11ac/ax/be standards through 3x3 MIMO. This setup ensures complete backward compatibility with older devices while also accessing current high-speed channels and the newest, least congested 6 GHz spectrum for next-generation Wi-Fi 6E/7 devices. This ensures maximum performance, future-proofing, and optimal connectivity across all wireless technologies.
• Reliable GNSS Performance: The inclusion of a dual-band GNSS antenna ensures dependable navigation and precise location tracking, even in challenging environments.

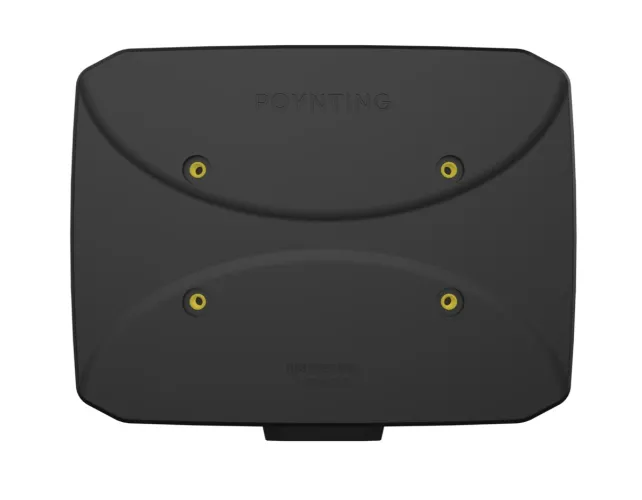

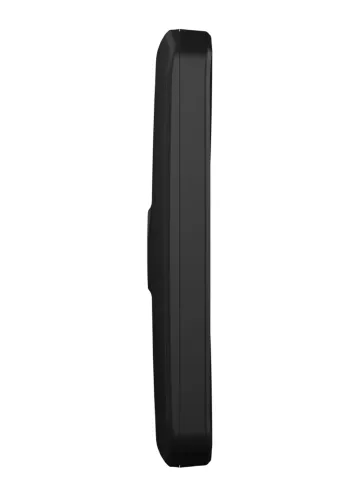

• Sleek, Low-Profile Design: Featuring a compact and low-profile design, the PANL-631 blends seamlessly into any setting, catering to both aesthetic and practical needs. Its innovative window mount design allows for simple installation, enabling easy attachment to vehicle or building windows using either suction cups or adhesive mounts.
• Exceptional Connectivity Gateway: With its remarkable GNSS capabilities and broad-spectrum performance, the PANL-631 stands as your gateway to unparalleled connectivity across various wireless applications.

SPECIFICATIONS

PANL_0631_V1(20816).pdf
