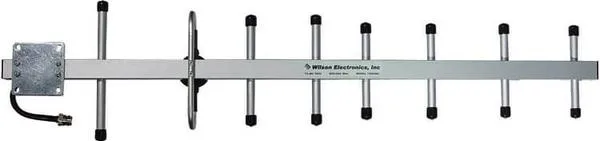

Wilson Single-Band 700-960MHz Yagi Antenna - 301111 (Cable Sold Separately)
The Wilson 301111 Yagi Antenna is a single-band, high-gain antenna designed for the 700MHz, or 824-960MHz, frequency range. This directional 3G/4G/LTE antenna boosts your cellular signal and is helpful for those who live just beyond their provider’s optimal range. It can be mounted vertically or horizontally on a pole up to two inches in diameter or, any flat surface. It delivers gain between 10dBi to 13dBi.
This yagi antenna is made for rugged environments. It features a stainless-steel back plate and a UV-stabilized, weather resistant ABS plastic sealed housing. It comes with a pre-attached N/Female pigtail connector. If needed, 5Gstore carries various modem adapters and coax cables to fit your requirements for installation and customized setups.
The Wilson 301111 yagi antenna is similar to the Wilson model 314411; however, the 301111 modelMHz to 960MHz frequency range. It is compatible with AT&T, Verizon, Sprint, and other 2G/3G/4G/LTE providers in North America.
Although some testing will be needed to provide an accurate aim, of this outdoor directional antenna, users with knowledge and patience will greatly benefit from an enhanced cellular signal. As always, 5Gstore recommends performing a site survey prior to installing any new antenna and signal booster. This ensures the best results from your amplifier and antenna purchase from 5Gstore. This antenna MUST be aimed correctly at the cell tower to be effective.
Important: Cables are NOT included with the purchase of this Wilson 301111 antenna. For assistance when selecting the right cables, please contact 5Gstore . We’ll be happy to help.
Wilson Electronics is North America’s premiere manufacturer of cell phone signal boosters and antennas. See our Wilson antenna reviews for more information from our customers.
Antenna Features:
Compatibility: 700-960mhz networks - this antenna will ONLY work for users whose provider ONLY uses those frequency bands.
Length: 32.5".
Cable: NO cable is included with this antenna. Various lengths are available; you can select your cable above. Depending on the cable selected and the device you are using, an adapter may be needed.
Ground Plane: The Yagi Antenna has a built-in ground plane.
Weatherproof? Yes, this antenna is weatherproof and is designed for outdoor use.
Mounting Requirements: Mounting hardware is included to mount to a wall or to a pipe/pole (accommodates diameters from 1.25" - 2"). It must be aimed accurately at the cell tower to be effective.
Portability: This antenna is made to be installed at a fixed location aimed at the cell tower; it is NOT portable.
The main benefit of the this single-band Yagi antenna is its ability to focus its signal in one direction, which leads to greater gain. This antenna is designed for stationary/building use only - it is not appropriate for mobile or travel use. If this antenna is not aimed correctly, it will not be effective - we do NOT recommend this antenna unless you know where the tower is and/or have the patience to do extensive testing while installing.
This antenna can be used indoors or outdoors and comes complete with all components needed for pole mounting or wall mounting (does not include the pole). The backplate is stainless steel with stainless steel fasteners. All bracket components are stainless steel as well for corrosion protection. The pigtail is 4" outdoor-rated cable terminated with an N/Female connector (coax cable sold separately; see menu on the top of this page).
Features:
Works on the 700-960MHz frequency band ONLY
10-13dBi gain
Pole or wall mountable
Vertical or horizontal polarization
DC grounded for lightning protection
Pole-mounting hardware included, accommodates pipe diameters from 0.5" - 2"
Specifications:
Model: 301111
Frequency range: 700-960 mhz
Antenna gain: 10-13db
Impedance: 50 Ohms
Cable: None included - select a cable from the menu above
Length: 32.5"
Connector: N Female
Mount: Pole mount
Polarization: Vertical or horizontal
Material: Aluminum
this antenna is similar to Wilson model 301129 but also covers the 700mhz frequency (301129 only covers 800-900mhz)
5
5
9
This antenna has been a life saver. I live in a rural area where my only internet connection is via Verizon. Fortunately the area has 4G coverage. Before installing the antenna on my UML290 modem, I was getting -73db signals, I am now getting -52db. Granted "before" had the modem at about 8 feet and "now" has the antenna at 23 feet. To minimize signal loss, I installed the modem inside a box attached to the mast so I could use the adapter cable to directly connect the antenna and modem. Actually, I installed a lightning arrestor between the antenna and the adapter cable. I connected the modem to my Cradlepoint MBR95 router with a 16 foot active USB extension cable; it works like a champ! I know I should have been able to use a regular cable for this distance, but when I tried it, I ran into a lot of flaky connections. All and all, this antenna is a winner!
Ronald A.
5
5
This antenna has been a life saver. I live in a rural area where my only internet connection is via Verizon. Fortunately the area has 4G coverage. Before installing the antenna on my UML290 modem, I was getting -73db signals, I am now getting -52db. Granted "before" had the modem at about 8 feet and "now" has the antenna at 23 feet. To minimize signal loss, I installed the modem inside a box attached to the mast so I could use the adapter cable to directly connect the antenna and modem. Actually, I installed a lightning arrestor between the antenna and the adapter cable. I connected the modem to my Cradlepoint MBR95 router with a 16 foot active USB extension cable; it works like a champ! I know I should have been able to use a regular cable for this distance, but when I tried it, I ran into a lot of flaky connections. All and all, this antenna is a winner!
Date Added: 08/26/2013 by Ronald A. (Van Buren, AR)
