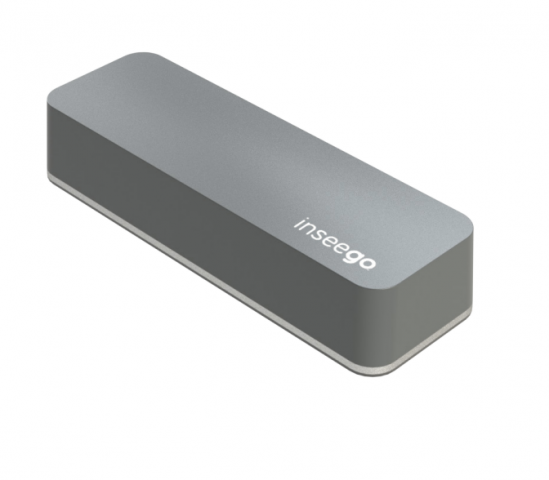

Inseego Antenna 5G Multi-Element MiMo 7in1(6x6)

1 Support Docs

In Stock

Item Number: 11487
Model: 649496 02576 2

Quantity:

Price:

$350.00

Related Products

S2000e Enterprise 5G Industrial North America Modem

$899.00

General

Details

Customer Reviews

Q & A

Support

Photos & Videos

Inseego Antenna 5G Multi-Element MiMo 7in1(6x6) The all-in-one external antenna is a high-performance multi-element antenna that supports the full spectrum of LTE and 5G bands and active GPS. With world-class engineering design, the all-in-one antenna has optimized efficiency, coverage, gain, and return loss to provide the best possible signal strength for your cellular device. In addition, the L1 and L5 band coverage with active GPS support provides world-class tracking and location-based services. The remote antenna is fully ruggedized with high-performance materials and a full IP67 rating to withstand any outdoor environment. Pair this antenna with your Inseego device to have the best possible cellular connection in remote industrial applications. Specifications Mounting hole 1.5 “ (35.1mm) hole, fully gasket and sealed RF cable length 6-foot cable Element configuration: 6x Cellular 1x Active GNSS Operating temperatures -40o C to 85o C Ingress protection IP67 Waterproof Product dimensions 279.4mm x 93.52mm x 56.38mm Element frequency range Cell 1: 617 - 894 MHz, 1710 - 2700 MHz, 3400 - 3800 MHz, 5150 - 5925 MHz Cell 2: 1400 - 2700 MHz, 3400 - 4000 MHz, 5150 - 5925 MHz Cell 3: 1400 - 2700 MHz, 3400 - 4000 MHz, 5150 - 5925 MHz Cell 4: 3400 - 4000 MHz, 5150 - 5925 MHz Cell 5: 1400 - 2700 MHz, 3400 - 4000 MHz, 5150 - 5925 Cell 6: 617 - 894 MHz, 1710 - 2700 MHz, 3400 - 3800 MHz, 5150 - 5925 MHz GNSS: 1575.42, 1176.45 MHz (GPS L1/L5) Band coverage AT&T: 2, 4, 5, 12, 14, 17, 29, 30, 46, 48, 66 Verizon: 2, 4, 5, 13, 46, 48, 66 T-Mobile: 2, 4, 12, 25, 26, 41, 46, 48, 66, 71 Private networks: 12, 41, 42, 43, 46, 48, 71, 77, 78, 79 Global: 1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 14, 17, 18, 19, 20, 28, 29, 30, 32, 38, 39, 40, 41, 42, 43, 46, 48, 77, 78, 79 Antenna-S2000e 649496 02576 2

Inseego

Cable & Accessory

649496025762

$ $350.00 649496025762 https://5gstore.com/product/11487_inseego_antenna_5g_multi-element_mimo_7in16x6.html

The all-in-one external antenna is a high-performance multi-element antenna that supports the full spectrum of LTE and 5G bands and active GPS. With world-class engineering design, the all-in-one antenna has optimized efficiency, coverage, gain, and return loss to provide the best possible signal strength for your cellular device. In addition, the L1 and L5 band coverage with active GPS support provides world-class tracking and location-based services.

The remote antenna is fully ruggedized with high-performance materials and a full IP67 rating to withstand any outdoor environment. Pair this antenna with your Inseego device to have the best possible cellular connection in remote industrial applications.

Specifications

Mounting hole
- 1.5 “ (35.1mm) hole, fully gasket and sealed
RF cable length
- 6-foot cable
Element configuration:
- 6x Cellular
- 1x Active GNSS
Operating temperatures
- -40o C to 85o C
Ingress protection
- IP67 Waterproof
Product dimensions
- 279.4mm x 93.52mm x 56.38mm
Element frequency range
- Cell 1: 617 - 894 MHz, 1710 - 2700 MHz, 3400 - 3800 MHz, 5150 - 5925 MHz
- Cell 2: 1400 - 2700 MHz, 3400 - 4000 MHz, 5150 - 5925 MHz
- Cell 3: 1400 - 2700 MHz, 3400 - 4000 MHz, 5150 - 5925 MHz
- Cell 4: 3400 - 4000 MHz, 5150 - 5925 MHz
- Cell 5: 1400 - 2700 MHz, 3400 - 4000 MHz, 5150 - 5925
- Cell 6: 617 - 894 MHz, 1710 - 2700 MHz, 3400 - 3800 MHz, 5150 - 5925 MHz
- GNSS: 1575.42, 1176.45 MHz (GPS L1/L5)
Band coverage
- AT&T: 2, 4, 5, 12, 14, 17, 29, 30, 46, 48, 66
- Verizon: 2, 4, 5, 13, 46, 48, 66
- T-Mobile: 2, 4, 12, 25, 26, 41, 46, 48, 66, 71
- Private networks: 12, 41, 42, 43, 46, 48, 71, 77, 78, 79
- Global: 1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 14, 17, 18, 19, 20, 28, 29, 30, 32, 38, 39, 40, 41, 42, 43, 46, 48, 77, 78, 79

Electrical Specifications

ID	Port	Parameters	Units	Type
Radiant efficiency	CELL - 1,6 CELL - 1,6 CELL - 1,6 CELL - 1,6 CELL - 2,3,5 CELL - 2,3,5 CELL - 2,3,5 CELL - 4 GPS	617 - 894 MHz 1710 - 2700 MHz 3400 - 4000 MHz 5150 - 5935 MHz 1400 - 2700 MHz 3400 - 4000 MHz 5150 - 5935 MHz 3400 - 4000 MHz 1575.42, 1176.45 MHz	%	85 85 70 60 80 60 70 70 80
Peak gain	CELL - 1,6 CELL - 1,6 CELL - 1,6 CELL - 1,6 CELL - 2,3,5 CELL - 2,3,5 CELL - 2,3,5 CELL - 4 GPS	617 - 894 MHz 1710 - 2700 MHz 3400 - 4000 MHz 5150 - 5935 MHz 1400 - 2700 MHz 3400 - 4000 MHz 5150 - 5935 MHz 3400 - 4000 MHz 1575.42, 1176.45 MHz	dBi	5 6 7 7 7 6 9 7 6
Return loss (50 Ω)	CELL - 1,6 CELL - 1,6 CELL - 1,6 CELL - 1,6 CELL - 2,3,5 CELL - 2,3,5 CELL - 2,3,5 CELL - 4 GPS	617 - 894 MHz 1710 - 2700 MHz 3400 - 4000 MHz 5150 - 5935 MHz 1400 - 2700 MHz 3400 - 4000 MHz 5150 - 5935 MHz 3400 - 4000 MHz 1575.42, 1176.45 MHz	dB	8 10 5 7 10 5 10 7 5
Isolation	CELL - 1,6 CELL - 1,6 CELL - 1,6 CELL - 1,6 CELL - 2,3,5 CELL - 2,3,5 CELL - 2,3,5	617 - 894 MHz 1710 - 2700 MHz 3400 - 4000 MHz 5150 - 5935 MHz 1400 - 2700 MHz 3400 - 4000 MHz 5150 - 5935 MHz	dB	13 25 30 30 12 14 20
Polarization	CELL - 1,2,3,4,5,6 GPS		dBi	Linear RHCP
Max input power	CELL - 1,2,3,4,5,6 GPS			5
GNSS preamp gain	GPS			28
GNSS preamp voltage	GPS			2.2 to 5.0
RF Connectors RF Cable Type	CELL - 1,2,3,4,5,6,GPS CELL - 1,2,3,4,5,6, GPS			SMA(M) LMR200/LMR100
