Peplink Balance 2500 EC Load Balancing/Bonding Router (Up To 16 WAN, 1 USB)

Call for Availability

Item Number: 12170
Model: BPL-2500-EC

Contact Us For Pricing

This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

For trusted, secure internet connections, companies everywhere turn to load balancing and WAN bonding routers for maximum reliability and unbreakable connections. The Peplink Balance 2500 EC load balancing and WAN bonding router is a rugged, high-performance LTE router that incorporates top-notch quality features and operations into one solution. For large enterprises and large campus needs, the Peplink Balance 2500 EC is a load-balancing and bonding router that is intended for a network of up to 20,000 users.

Peplink Balance 2500 EC: Maximum Efficiency and Management
The Peplink Balance 2500 EC provides robust security, protection, and hot failover support to diverse professional environments. It’s designed to reduce costs while allowing you to take control of your WAN, providing maximum efficiency, centralized cloud management and simplified configuration, setup and maintenance (thanks to the cloud-based InControl SD-WAN controller). Monitor your network, access the Web administration of any router in your network, and make changes without going onsite. You’ll enjoy automatic failover, 8 Gbps throughput and 4,000 VPN peers with Peplink’s line of products — all with features that provide infrastructure and network reliability, real-world solutions and much-needed flexibility.

Peplink WAN Bonding and Load Balancing Routers at 5GStore.com
Have questions? Don’t hesitate to contact 5GStore.com, where you’ll get great support from industry experts. Contact us to see if the Peplink Balance 2500 EC LTE router is right for you and your large business or enterprise use!

5Gstore is a Peplink Certified PartnerRouter Features:

  • Internet Connections Supported: 12 Wired WAN, 1 USB (view full compatibility chart)
  • WiFi Standard: No built-in WiFi. Add an access point (like the AP One Mini) if WiFi is needed.
  • WiFi Range: N/A
  • Ethernet ports: 8 GbE LAN + 12 WAN


Features:

  • Designed for large enterprises/campus
  • Recommended users: 5000-20000+
  • Inbound load balancing (distributes inbound data traffic over multiple WAN links to computers behind Peplink Balance)
  • Speedfusion Bandwith bonding
  • Built-in WLAN controller
  • Bandwidth Monitor (great for mobile broadband users with a monthly data allowance!)
  • PPTP VPN server
  • Advanced QoS
  • Link controller
  • Drop-in Mode (allows the router to be deployed in an existing network without incurring any configuration changes to existing devices, e.g. routers, firewalls, etc.)
  • 3G/4G Modem Support (view list of compatible devices)
  • Comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN

click the image above for a demo of the Peplink admin interface!

Specs:

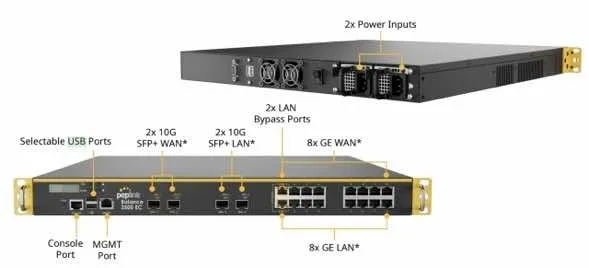

  • Hardware:
    • LAN ports:
      • Up to 16 GbE*
      • Up to 4x 10G SFP+*
    • WAN ports:
      • Up to 16 GbE*
      • Up to 4x 10G SFP+*
    • USB WAN modem port: 1
    • Dimensions: 17.2 x 18.5 x 1.7 inches / 438 x 470 x 44 mm
    • Weight: 19.2 lbs/8.7kg
    • Power Requirements: Universal Input 100V to 240V AC
    • Power Consumption: 65W(nominal), 150W(Max)
  • Capacity:
    • Recommended users: 5000-20000+*
    • Router throughput: 8Gbps*
  • Wan:
    • Support for PPPoE, Static IP, DHCP
    • WAN Link Health Check
    • PING
    • DNS Lookup
    • HTTP
    • Bandwidth Allowance Monitor
    • IPv6 Support
    • USB 4G/3G Modem Support
    • Support for Dynamic DNS services
    • changeip.com
    • dyndns.org
    • no-ip.org
    • tzo.com
    • DNS-O-Matic
    • WAN Port Convertible into LAN Port
  • Lan:
    • DHCP Server for LAN Clients
    • Extended DHCP Option
    • DHCP Reservation
    • DNS Proxy for LAN Clients
    • VLAN on LAN Support
  • Load Balancing:
    • Intelligent Failover
    • Session Persistence
    • Per-Service Load Distribution
    • Multiple Algorithms:
      • Weighted
      • Enforced
      • Persistence
      • Priority
      • Overflow
      • Least Used
      • Lowest Latency
  • Complete VPN Solution:
    • SpeedFusion VPN/SpeedFusion Bandwidth Bonding
      • Site-to-Site VPN
      • Bandwidth Aggregation
      • Hot Failover
      • 256-bit AES Encryption
      • Pre-shared Key Authentication
      • Dynamic Routing
      • X.509 Certificate Support
    • PPTP/L2TP/OpenVPN Server
      • Local User, LDAP, RADIUS, Active Directory Authentication
    • IPsec VPN (Network-to-Network)
      • X.509 Certificate Support
    • GRE Tunnel (Network-to-Network)
  • Advanced QoS:
    • User Groups
      • Bandwidth Reservation
      • Individual Bandwidth Limit
    • Application Prioritization
      • By User Groups
      • SIP, HTTPS, VPN QoS
      • Custom Application QoS
  • Networking:
    • NAT and IP Forwarding
    • Static Routes
    • Port Forwarding
    • Many to One, One to One NAT
    • NAT Pool
    • SIP ALG, H.323 ALG
    • UPnP, NAT-PMP
    • WINS Server
    • BGP, OSPFv2 and RIPv2 Support
    • Bonjour Forwarding
  • AP Controller:
    • Support for Pepwave AP Series
    • Auto AP Discovery
    • Auto AP Firmware Management
    • AP Profile Configuration
    • Wi-Fi Usage Statistics
  • Captive Portal:
    • Support for Wired and Wireless LAN Clients
    • Support RADIUS Authentication
    • Support LDAP Authentication
    • Time and Usage Quotas on Open Access Mode
    • Built-in Customizable Splash Page
  • DNS:
    • Built-in Authoritative DNS 7
      • Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT records
  • Security:
    • DoS Prevention
    • Stateful Firewall
    • Web blocking
  • Device Management:
    • Web Administrative Interface
    • Command Line Interface
    • InControl Cloud Management
    • Email Notification
    • Active Client & Session Lists
    • Bandwidth Usage Statistics
    • Syslog Service
    • SNMP v1, v2c and v3
  • Certifications:
    • CE
    • RoHS
    • FCC

What's Included:

  • 1x Balance 2500 EC
  • 2x Power Cords
  • 2x Rack Unit Rails
  • 1 Pair of Mounting Brackets(ACW-382)

* SFP+ 1&2 and WAN 1-8 are configured as WAN ports; SFP+ 3&4 and LAN1-8 are configured as LAN ports by default, configuration is changeable on the Web Admin. The power switch, VGA port & USB ports at the back of the device are disabled.
