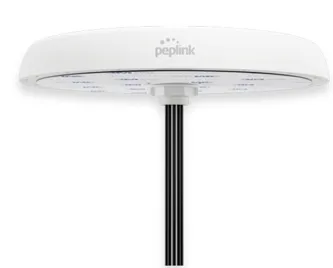

Cellular Antenna Cables -
|
8X SMA/male
|
|
Peak Gain & Frequencies:
|
617-960 MHz at 6.0 dBi
1710-2700 MHz at 7.1 dBi
3400-4200 MHz at 8.7 dBi
5000-6000 MHz at 8.8 dBi
|
|
VSWR:
Feed Power Handling:
Input Impedance:
Polarization:
Cable Type:
Cable Jacket:
|
< 2.5 over 95% of the band
10W
50 Ω
Linear
CFD-200 Cable Diameter: 0.2 in. / 5.0 mm
Half matt PVC, UV resistant
|
|
Cable Loss:
|
0.33 dB/m @ 900 MHz
0.49 dB/m @ 2000 MHz
0.55 dB/m @ 2500 MHz
0.87 dB/m @ 5800 MHz
|
|
Cable Termination(Connectors):
|
Sma/Male
|
|
WiFi Antenna Cables / Cable Termination
|
CFD-200 / 2x RP-Sma/Male
|
|
Peak Gain & Frequencies
|
2400-2500 MHz at 6.0 dBi
5000-6000 MHz at 7.4 dBi
|
|
VSWR:
Feed Power Handling:
Input Impedance:
Polarization:
Cable Diameter:
Cable Jacket:
|
< 2.0
10W
50 Ω
Linear
0.2 in. / 5.0 mm
Half matt PVC, UV resistant
|
|
GPS Antenna Cable / Cable Termination
|
1x RG-174 / Sma/Male
|
|
Peak Gain:
|
1.2 dBiC: 1575MHz
2.0 dBiC: 1602MHz
|
|
VSWR:
Output Return Loss:
Gain(LNA):
Operating Voltage:
Power Consumption:
|
< 2.0
-10dB max
29 ± 3 dB
3.3 V
6 ±2 mA at 3.3 V
|
|
Cable Loss:
|
3.4 dB/m @ 1000 MHz
4.9 dB/m @ 1800 MHz
|
|
Cable Diameter:
Cable Jacket:
|
0.1" / 2.7mm
Half matt PVC, UV resistant
|
|

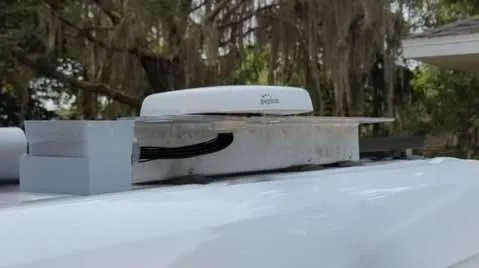

Mounting: Supported Types:
|
Panel, surface (with additional mount)
magnetic (with additional mount)
Mounting Hole: 1.7" / 43mm
Max Panel Thickness: up to 6.7" / 170mm
|
|

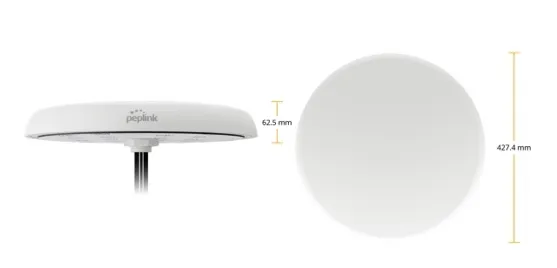

Dimensions:
|
2.46” / 62.5 mm - Height (spigot not included)
16.83” / 427.4 mm - Diameter
Packaging: 20.16" x 20.09" x 9.06" (512x510x230mm)
|
|
Radome Material:
|
UV Stable PC
|
|
Environmental Compliance:
|
IP Rating: IP67
Temperatures:
Operating: -40° - 176°F / -40° -80°C
Storage: -40° - 176°F / -40° - 80°C
Compliance: ROHS, REACH, WEEE
Wind Survivability: 137mph (220km/h)
Flammability: Enclosure: UL 94 HBCable: UL 758 (VW-1)
UV Resistance: UL 746C (F1 long-term UV exposure)
Salt Spray: MIL-STD 810F/ASTM 8117
|
|

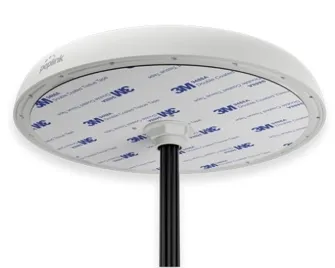

Package Contents:
|
ANT-MB-82G-S-W-6
Long and short thread
Double-sided 3M adhesive pad
Diameter: 15.2” / 386 mm
Thickness: 0.08” / 2 mm
|
