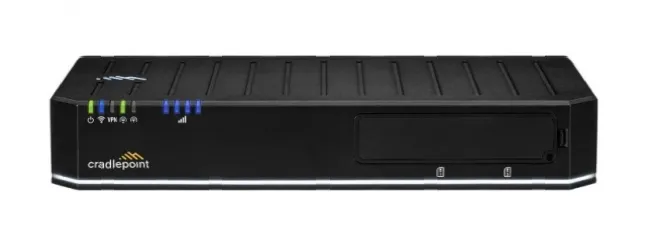

Cradlepoint NetCloud Enterprise Branch Essentials/Advanced Plan & E3000 router w/ WiFi (1200 Mbps modem), N.A. & JP - 5 Year

Pre-Order

Item Number: 13048
Model: BFA5-3000C18B-GN
Quantity:

Price:

$4,509.00

The purpose-built router embedded or optimized for 5G

Cradlepoint endpoints provide industry-leading, Gigabit-Class LTE connectivity as well as Ethernet and Wi-Fi. The E3000 has the ports, interfaces, and software to make it optimized for 5G. The E3000 is sold with a subscription to NetCloud Service for Enterprise Branch which provides streamlined configuration and continuous cloud, modem, and router software feature enhancements.

BENEFITS

  • Power medium branches where security and analytics performance are needed.
  • Gain fast day-1 connectivity with embedded 5G and Cat 20 or Cat 18 LTE modem.
  • Add 5G combined with Cradlepoint 5G Wideband Adapters as captive modem.
  • Add a second cellular modem for dual LTE connectivity to failsafe all wireless connectivity.
  • Integrate into your existing network with standards-based dynamic routing and VPN tunnel support.
  • Enable unified edge security with application aware multizone firewalls, IDS/IPS, Internet security, and available FIPS 140-3 Level 1 Implementation Under Test.

Category

Branch, Fixed Sites

Cloud Management

Yes

Wireless Connectivity

5G NR & Cat 20 LTE or Cat 18 LTE

5G Status

5G embedded or with Cradlepoint 5G Adapter

Form Factor

Metal

Ethernet Ports

9 x GbE, 1 x 2.5 GbE, 1 x SFP+ (LAN/WAN switchable)

USB Ports

1

Console Ports

Yes

Expansion Slot

Bluetooth® wireless technology (MC20BT)

Dual-Modem Support

Yes

Network Operator Standards

PTCRB (U.S.), GCF (global)

Network Operator Certifications

AT&T, EE, Telstra, T-Mobile, Verizon

Regions

North America, Latin America, Europe, Asia-Pacific
See country and model availability

Public Safety Networks

FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline
See data sheet for model applicability

Throughput

2 Gbps (Firewall)

VPN Tunnel Count

20

Wi-Fi

Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6)

GNSS/GPS

Passive

PoE

Yes

Operating Temperature

0 °C to 50 °C (32 °F to 122 °F)

Rack Mountable

Yes

Private Cellular Network

Yes — CBRS, 4G LTE, 5G




Specifications:

No. of Cellular Connectors 4
No. of WiFi Connectors 4
No. of GPS Connectors 1
Cellular Connector SMA Female
WiFi Connector RP-SMA Female
GPS Connector SMA Female
No. of LAN Ports 9
No. of WAN Ports 1
No. of Fiber (SFP) Ports 1
No. of Serial Ports 0
No. of Embedded Modems 1
Ports Configurable as LAN/WAN Yes
USB Port WAN
WAN Throughput Speed 2 Gbps
SIM Card Size 2FF
Length (in) 6.3
Width (in) 12.6
Height (in) 1.7
Weight (lb) 4.6
Minimum Temperature (F) 32
Maximum Temperature (F) 122
Material Metal
Antennas Included Yes
Modem Expansion Slot Yes
Modem Replaceable No
FIPS Certified No
WiFi Support WiFi 6
Cloud Management Included Yes
Power Input Power Supply, 54V, 3.3A, 2x2 Large, 2 meters
Bluetooth Yes
Bonding Support No
IP Passthrough Yes
