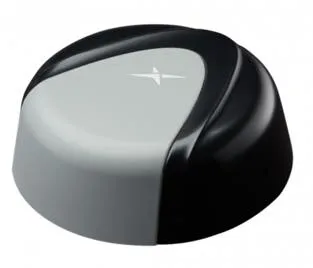

Taoglas MA1505 Synergy 5-in-1 LTE/4G/5G Antenna (2x Cell, 2x WiFi, 1x GNSS) 16.4 Foot cables

In Stock

Item Number: 13121
Model: MA1505.AK.001
Quantity:

Price:

$453.69

The Taoglas Synergy MA1505 is a 5-in-1 next-generation permanent mount antenna designed for vehicle roof applications. It has a fully IP67-rated waterproof robust PC enclosure and base. The 5 antennas inside support 5G/4G, GPS/GLONASS/BeiDou, and Wi-Fi (2.4GHz/5GHz).

This outstanding patent-pending antenna delivers powerful MIMO antenna technology for 5G/4G, Wi-Fi 2.4/5.8GHz 802.11n and the emerging 802.11ac, and an optimized GPS/GLONASS/BeiDou patch antenna for location. The 5G/4G antennas also include backward compatibility to work at most worldwide 2G and 3G bands.

Typical Applications:

  • Next Generation OEM Automotive Connectivity
  • Multimedia, Navigation, and Telematics Systems
  • V2V, V2X, and Fleet Management Applications
  • Real-time HD Video Streaming
  • First Net Responder Routers

The MA1505 is ideal for applications that require highly sophisticated antennas for real-time streaming applications that demand high-speed video uplink and downlink into the cabin of the vehicle.

These challenges are resolved by the highly efficient, high-gain MIMO antennas, with high isolation, all of which are necessary to achieve the required signal-to-noise ratio and throughput.

Key Features:

  • 2 x 5G/4G MIMO Antenna
  • 2 x Wi-Fi 2.4GHz/5GHz MIMO Antenna
  • 1 x Active GPS/GLONASS/BeiDou Antenna Front End GNSS SAW Filter
  • IP67 Rated Waterproof Enclosure
  • High Efficiency/Peak Gain Outdoor Antenna
  • Cable: 16.4 Foot/5M (0.3m RG174 with 4.7m TGC-200 for GNSS)
  • Connectors: SMA(M) / RP-SMA(M)
  • RoHS & REACH Compliant


Specifications:

No. of Cellular Connectors 2
No. of WiFi Connectors 2
No. of GPS Connectors 1
Cellular Connector SMA Male
WiFi Connector RP-SMA Male
GPS Connector SMA Male
Antenna Type Outdoor
Antenna Style Omni
Antenna Mount Screw-on
Antenna Color Black
Height (in) 2.26
Weight (lb) 4.63
Maximum Gain 3.3
Impedance Ω (Input/Output) 50
Cable Length (in) 11.81
Cable Type TGC-201
Minimum Temperature (F) -40
Maximum Temperature (F) 176
Material PC
