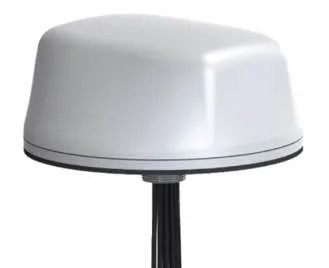

MobileMark LTMGW Thru-Roof Antenna for 4x4 Cellular, MiMo & GPS - White

Call for Availability
Item Number: 13234
Model: LTMWG940-A3CB3C00G2C-WHT-180
Quantity:

Price:

$478.65

Similar Products Compare All...
$234.05
$249
$278.08


Check Router Compatibility












This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

The LTMWG940 is a 5-cable antenna with 4x 5G/LTE and 1x GNSS. With up to 5 antenna elements in a sleek small form factor, it is one of the smallest in the industry. It provides a good match for the dual-carrier modems that have two pairs of Cellular MIMO elements. All of our 5G antennas are backwards compatible for 4G LTE.

Key Highlights

  • Multiband: 4x 5/LTE, NO WiFi, 1x GNSS
  • Dual-Carrier/Dual Modem MIMO
  • 1 ft Cable Pigtails Exit Antenna; 14 ft Cable Jumpers Provided
  • Color Coded Cable Type for EASY Match-Up
  • Made-in-the-USA & UK

Common Applications

  • Vehicle Fleet Management
  • Public Transportation
  • Fixed Site Private Networks
  • Advanced Multiband Routers

LTMG940-A3CB3C00G2C-WHT-180 (13234).pdf



Specifications:

No. of Cellular Connectors 4
No. of WiFi Connectors 0
No. of GPS Connectors 1
Cellular Connector SMA Male
GPS Connector SMA Male
Antenna Type Outdoor
Antenna Style Dome
Antenna Mount Surface
Antenna Color White
Width (in) 5.5
Height (in) 2.38
Maximum Gain 5
Impedance Ω (Input/Output) 50
Cable Length (in) 12
Cable Type LL-195 / RG-174
Minimum Temperature (F) -40
Maximum Temperature (F) 176
Material ASA UV-Inhibitive Plastic
VSWR (Voltage Standing Wave Radio) <2.5:1
